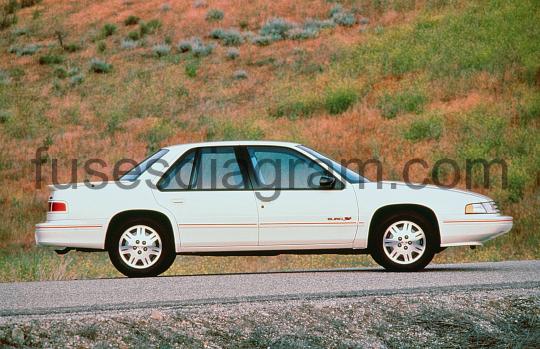

For the Chevrolet Lumina 1990, 1991, 1992, 1993, 1994 model year.
Cigarette lighter fuse – fuse box in glove box:
|
WARNING: Always disconnect battery ground cable before servicing “high-current fuses. It is recommended that “high-current” fuses be replaced by a qualified technician.
MENU
Fuse panel identification (in glove box)
- Assignment of the fuses 1990.
- Assignment of the fuses 1991.
- Assignment of the fuses 1992.
- Assignment of the fuses 1993-1994.
Fuse box in engine compartment, right side
- fuse box diagram 1990-1993
- assignment of the fuses and relay 1990
- assignment of the fuses and relay 1991
- assignment of the fuses and relay 1992
- assignment of the fuses and relay 1993
- fuse box diagram 1994
- assignment of the fuses and relay 1994
Fuse box in engine compartment, left side
- fuse box diagram 1990 (underhood, left side)
- fuse box diagram 1991 (underhood, left side)
- fuse box diagram 1992-1993 (underhood, left side)
- fuse box diagram 1993-1994 (underhood, left side)
Vehicle has a fuse block, right and left electrical centers, and a component center. Fuse block and component center are, respectively, in and behind the glove box. Electrical centers are located under the hood.
Fuse panel identification (in glove box).
1 – 10 Amp Radio, Clock
2 – 15 Amp Radio, Instrument Cluster, Radio/Clock (1992-94), Passive Restraint (1992-93), Delco Bose Amplifier (1992-94)
3 – 15 Amp ECM, Horns, Door Lock, Courtesy, Glove Box, Underhood, Trunk & Modular, Dim Lights, Cigarette Lighter, Door Handle
4 – 25 Amp Wind shield Washer/Wiper
5 – 5 Amp Instrument Panel Lights
6 – Blank
7 – 15 Amp Horns, Horn Relay
8 – 10 Amp Turn Signal, Parking Light Relay
9 – 10 Amp Heater & A/C, Instrument Cluster, Cruise Control
10 – 20 Amp Stop lights, Hazard Flasher, Chime Module
11 – 10 Amp Indicator Lights, Rear Defogger Relay, Converter Clutch, Chime Module, Headlight Switch Light
12 – Blank
13 – 20 Amp Tail lights, Parking Lights, Side Marker Lights, Chime
14 – 15 Amp Cigar Lighter, Interior Lights, Power Mirrors, Door Lock Relay
15 – 25 Amp Low/Medium Blower
16 – 10 Amp Safety Belts
17 – Not Used
18 – 10 Amp A/C Solenoid
1 – 10 Amp Radio, Clock
2 – 15 Amp Radio, Instrument Cluster
3 – 15 Amp ECM, Horns, Horn Relay, Door Lock, Courtesy, Glove Box, Underhood, Trunk & Modular, Dim Lights, Cigarette Lighter, Door Handle Light
4 – 25 Amp Windshield Washer/Wiper
5 – 10 Amp Indicator Lights, Rear Defogger Relay, Converter Clutch, Chime Module, Headlight Switch
6 – 15 Amp Cigarette Lighter, Interior Lights, Power Mirrors, Door Lock Relay
7 – 15 Amp ECM
8 – 10 Amp Turn Signal, Parking Light Relay
9 – 15 Amp Hazard Warning Flasher, Chime Module
10 – 10 Amp Heater/A/C, Cruise Control, Instrument Cluster
11 – 5 Amp Instrument Panel Lights & Switch Lights
12 – Not Used
13 – 20 Amp Tail Lights, Parking Lights, Side Marker Lights, Chime
14 – Not Used
15 – 20 Amp Low/Medium Blower
16 – 10 Amp Safety Belts
17 – Not Used
18 – 10 Amp A/C Solenoid
1 – 10 Amp Radio, Clock
2 – 15 Amp Radio/Clock, Passive Restraint, Delco Bose Amplifier
3 – 15 Amp Door Lock, Courtesy, Glove Box, Underhood, Trunk & Modular, Dim Lights, Cigar Lighter, Door Handle, Visor Mirror Light
4 – 25 Amp Windshield Washer/Wiper
5 – 10 Amp Temp Door Motor, HVAC/Rear Defogger, DRL Module
6 – 15 Amp Brakelights, ABS Module
7 – 15 Amp ECM
8 – 20 Amp Tail Lights, Radio/Clock, HVAC, Chime Module, DRL Module
9 – 15 Amp Hazard Warning Flasher
10 – 10 Amp Rear Defogger Timer Relay, ABS Lamp Driver, DRL Module, Instrument Cluster, Chime Module, Cruise Control
11 – 5 Amp Instrument Panel Lights & Switch Lights
12 – 25 Amp Blower Motor
13 – 10 Amp Turn Signals/Flasher
14 – Not Used
15 – 10 Amp ABS Control Module
16 – Not Used
17 – Not Used
18 – Not Used
Assignment of the fuses 1993-1994.
1 – 10 Amp Radio, Clock
2 – 15 Amp Radio/Clock, Passive Restraint, Delco Bose Amplifier
3 – 10 Amp (1993) Door Lock, Courtesy, Glove Box, Underhood, Trunk & Modular, Dim Lights, Cigar Lighter, Door Handle, Visor Mirror Light; 15 Amp (1994) Door Lock, Courtesy, Glove Box, Underhood, Trunk & Modular, Dim Lights, Cigar Lighter, Door Handle, Visor Mirror Light
4 – 25 Amp Windshield Washer/Wiper
5 – 10 Amp Temp Door Motor, HVAC/Rear Defogger, DRL Module
6 – 15 Amp Brakelights, ABS Module
7 – 15 Amp ECM
8 – 20 Amp Tail Lights, Radio/Clock, HVAC, Chime Module, DRL Module
9 – 15 Amp Hazard Warning Flasher
10 – 10 Amp Rear Defogger Timer Relay, ABS Lamp Driver, DRL Module, Instrument Cluster, Chime Module, Cruise Control
11 – 5 Amp Instrument Panel Lights & Switch Lights
12 – 15 Amp (1993) Cigarette Lighter; 25 Amp (1994) HVAC
13 – 10 Amp Turn Signals/Flasher
14 – Not Used
15 – 10 Amp ABS Control Module
16 – Not Used
17 – Not Used
18 – 20 Amp (1993) Blower Motor, SOL Box; Not Used (1994)
Fuse box behind the glove box.
Fuse box diagram.
Assignment of the fuses and relay.
| Fuses | Amps | Circuits protected |
|---|---|---|
| 1 | 30A | Heated rear windscreen |
| 2 | 30A | Central locking |
| 3 | 30A | Power windows |
| 4 | 30A | Headlights |
| 5 | 20A | Not used |
| R1 | Air-conditioning fan, stage 2 relay | |
| R2 | Air-conditioning fan, stage 1 relay | |
| R3 | Timer relay, heated rear windscreen |
Fuse box in engine compartment, right side.
fuse box location.
Assignment of the fuses and relay 1990.
Fuse Identification
1 – Not Used
2 – 15 Amp Trunk Release, Back-Up Lights
3 – 10 Amp Generator
4 – Not Used
5 – Not Used
6 – 4 Amp Injectors (4-Cylinder Engine)
7 – 10 Amp Injectors (3.1L V6 Engine)
8 – 10 Amp Injectors (3.1L V6 Engine)
9 – Not Used
10 – 10 Amp Direct Ignition System
11 – 10 Amp Ignition
12 – Not Used
13 – Not Used
Relay Identification
14 – Heavy Duty Cooling Fan Relay
15 – Cooling Fan Relay
16 – A/C Compressor Clutch Relay
Maxi-Fuse Identification
17 – 60 Amp Starter Solenoid
18 – 30 Amp Cooling Fan
19 – 60 Amp High Blower
20 – 60 Amp Cooling Fan
21 – 30 Amp Ignition
Assignment of the fuses and relay 1991.
Fuse Identification
1 – 20 Amp Air Pump (3.4L Manual)
2 – 15 Amp Trunk Release, Back-Up Lights
3 – Not Used
4 – Service 3.4L DOHC V6
5 – Service 3.4L DOHC V6
6 – 4 Amp Injectors (4-Cylinder Engine)
7 – 10 Amp Direct Ignition System
8 – 10 Amp Injectors (3.1L V6 Engine)
9 – Not Used
10 – 15 Amp Ignition System
11 – 10 Amp Ignition
Relay Identification
12 – Air Pump Relay (3.4L DOHC V6)
13 – Not Used
14 – Heavy Duty Cooling Fan Relay
15 – Cooling Fan Relay
16 – A/C Compressor Clutch Relay
Maxi-Fuse Identification
17 – 60 Amp Starter Solenoid
18 – 30 Amp Cooling Fan (2.5L & 3.1L); 60 Amp Cooling Fan (3.4L DOHC V6)
19 – 60 Amp High Blower
20 – 60 Amp Cooling Fan
21 – 30 Amp Ignition
Assignment of the fuses and relay 1992.
Fuse Identification
1 – 20 Amp Air Pump (3.4L Manual)
15 Amp Trunk Release, Back-Up Lights
3 – 20 Amp ECM, Fuel Pump
4 – Not Used
5 – Not Used
6 – 4 Amp Throttle Body Injectors (4-Cylinder Engine)
7 – 10 Amp Direct Ignition System
8 – 10 Amp Injectors (3.1L V6 Engine)
9 – Not Used
10 – 15 Amp Ignition System
11 – 10 Amp TCC, AIR Pump (3.4L Manual), Primary Cooling Fan (3.1L V6)
Relay Identification
12 – Fuel Pump Relay
13 – Air Pump Relay (3.4L DOHC V6)
14 – Secondary Cooling Fan Relay
15 – Primary Cooling Fan Relay
16 – A/C Compressor Clutch Relay
Maxi-Fuse Identification
17 – 60 Amp Starter Solenoid
18 – 30 Amp Cooling Fan (2.5L & 3.1L); 60 Amp Cooling Fan (3.4L DOHC V6)
19 – 60 Amp Blower Motor
20 – 60 Amp Cooling Fan
21 – 30 Amp Fuse Block
Assignment of the fuses and relay 1993.
1 – 20 Amp Air Pump (3.4L Manual)
2 – 15 Amp Trunk Release, Back-Up Lights (A/T)
3 – 20 Amp ECM, Fuel Pump
4 – Not Used
5 – Not Used
6 – Not Used
7 – 10 Amp Direct Ignition System
8 – 10 Amp Injectors (V6 Engine)
9 – Blank
10 – 15 Amp A/C, SOL EGR (2.2L), Secondary Cooling Fan, Generator, Purge Canister, Digital EGR, Back-Up Lights (3.4L M/T)
11 – 10 Amp TCC, Air Pump (3.4L M/T), Primary Cooling Fan (3.1L)
Relay Identification
12 – Fuel Pump Relay
13 – Air Pump Relay (3.4L DOHC V6)
14 – Secondary Cooling Fan Relay
15 – Primary Cooling Fan Relay
16 – A/C Compressor Clutch Relay
Maxi-Fuse Identification
17 – 60 Amp Starter Solenoid
18 – 30 Amp Cooling Fan (2.2L & 3.1L) 60 Amp Cooling Fan (3.4L DOHC V6)
19 – 60 Amp Blower Motor
20 – 60 Amp Cooling Fan
21 – 30 Amp Fuse Block
Fuse box diagram (engine compartment, right side 1994).
Assignment of the fuses and relay 1994.
Fuse Identification
1 – Not Used
2 – 15 Amp Remote Trunk Release
3 – 20 Amp Powertrain Control Module (PCM), Fuel Pump Relay, Fuel Pump/Oil Pressure Switch, Fan Cont #1 Relay
4 – 15 Amp TCC (Automatic Transaxle)
5 – 15 Amp Generator, Digital Exhaust Recirculation (DEGR) Valve, Evaporative Emissions (EVAP) Canister Purge Valve Solenoid, Heated Oxygen Sensor, Fan Cont #2 Relay, A/C CMPR Relay (VIN T only)
6 – 15 Amp CRUISE, A/C Compressor Relay (VIN X only)
7 – 15 Amp Fuel Injectors, High Resolution 24X Crankshaft Position Sensor, Camshaft Position Sensor
8 – 10 Amp Powertrain Control Module (PCM), Mass Air Flow (MAF) Sensor (VIN X)
9 – 15 Amp Electronic Ignition (EI) Control Module
Maxi-Fuse Identification
10 – 60 Amp Instrument Panel Fuse Block
11 – 60 Amp Secondary Cooling Fan (Cont #1) Relay
12 – 60 Amp Passenger Side Underhood Electrical Center & I/P Fuse Block; Fuses 5, 14, 23 & 32
13 – 60 Amp Primary Cooling Fan (Cont #2) Relay I/P Fuse Block: Fuse 16, Power Seat Circuit Breaker “D”
Relay Identification
14 – Fuel Pump Relay
15 – A/C Compressor Clutch Relay
16 – Primary Cooling Fan Relay
17 – Secondary Cooling Fan Relay
18 – Not Used
Fuse box in engine compartment, left side.
fuse box location.
fuse box diagram 1990 (underhood, left side).
Amp ECM, Fuel Pump Relay Fuse
2 – Battery + (Fusible Link) Battery Cable +, Fusible Links
Fuse box diagram 1991 (underhood, left side).
1 – 20 Amp ECM, Fuel Pump Relay Fuse
2 – Battery + (Fusible Link) Battery Cable +, Fusible Links
3 – Fuel Pump Relay
Fuse box diagram 1992-1993 (underhood, left side).
Fuse Identification
1 – 5 Amp ABS Control Module
2 – 10 Amp Horn
3 – 60 Amp ABS Controller
4 – 50 Amp Exterior Lights
Relay Identification
5 – Horn Relay
6 – ABS Relay
Fuse box diagram 1993-1994 (underhood, left side).
1 – Not Used
2 – Not Used
3 – 60 Amp ABS Controller
4 – 50 Amp Exterior Lights
5 – Not Used (1993); 15 Amp (1994) Horns
6 – Not Used (1993); 5 Amp (1994) ABS
7 – Not Used
8 – Not Used
9 – Not Used
10 – Not Used (1993); 15 Amp (1994) Fog Lights
11 – Not Used
12 – Not Used
13 – 5 Amp (1993) ABS Control Module; Not Used (1994)
14 – 15 Amp (1993) Horns; Not Used (1994)
15 – Relay Horns
16 – Not Used (1993); Relay (1994) Fog Lights
17 – Relay ABS
