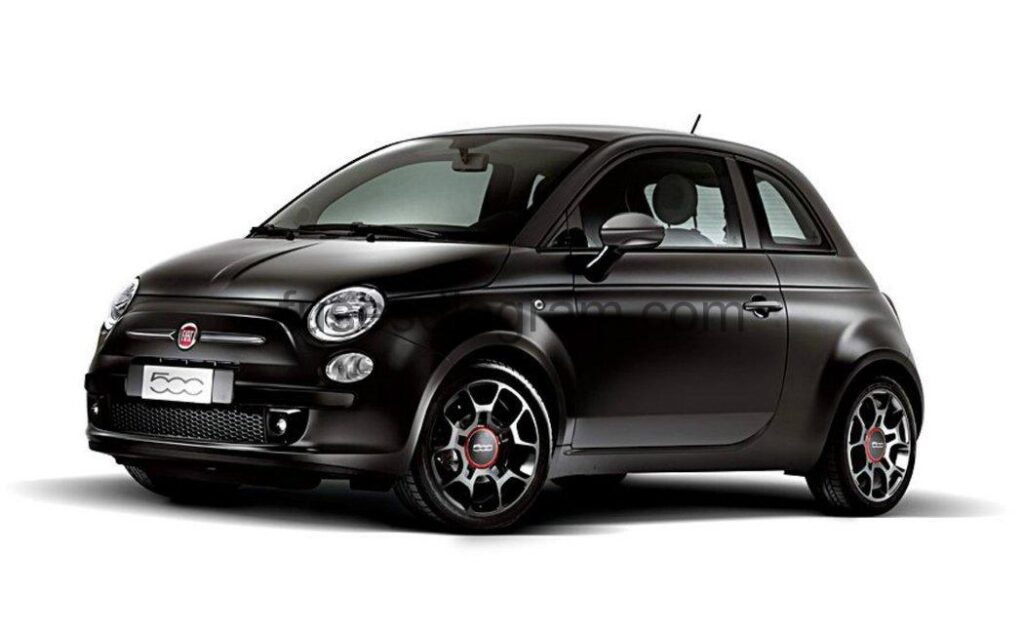

For 500 /500C (150) 2007, 2008, 2009, 2010, 2011, 2012 model year.
Cigarette lighter fuse – fuse box in passenger compartment – Fuse F11/15A |
MENU
Fuse box in passenger compartment
Fuse box in engine compartment
Fuse box in passenger compartment.
Fuse box location.
To access the fuse you must remove the press-fitted cover E. The 5A fuse for door mirror demisting is located in the diagnosis socket area, as shown in fig.
The fuse box is located in the lower area next to the pedal unit.
fuse box diagram.
Assignment of the fuses.
| Fuses | Amps | Circuits Protected |
|---|---|---|
| 1 | 7.5A | Right headlights |
| 2 | 7.5A | Courtesy light(s) Luggage compartment light(s) |
| 3 | 5A | Instrument panel |
| 4 | 20A | Central locking |
| 5 | 10A | Bluetooth control unit Climate control Diagnostic socket Radio |
| 6 | 7.5A | Windscreen washer Rear windscreen washer |
| 7 | 20A | Passenger's power window |
| 8 | 7.5A | Dipped beam Headlight levelling |
| 9 | 7.5A | Airbag |
| 10 | 7.5A | Bluetooth control unit Climate control Brake light switch Radio Clutch switch |
| 11 | 5A | Brake light switch Instrument panel |
| 12 | 5A | Reversing light switch Parking sensor Electric mirrors |
| 13 | 5A | Engine compartment junction block |
| 14 | 20A | Driver's side power window |
Fuse box in engine compartment.
fuse box location.
fuse box diagram.
legend.
| Fuses | Amps | Circuits Protected |
|---|---|---|
| 1 | 7.5A | Air-conditioning compressor |
| 2 | 7.5A | Main beam |
| 3 | 15A | Horns |
| 4 | 20A | Electric sunroof |
| 5 | 7.5A | Engine management |
| 6 | 20A | Brake control (BS) |
| 7 | 15A | Fog lights |
| 8 | 15A | Fuel pump |
| 9 | Not used | |
| 10 | 10A | Gearbox |
| 11 | 30A | Heated electric mirrors Heated rear windscreen |
| 12 | 7.5A | Engine management Semi-automatic gearbox |
| 13 | 7.5A | Hill-holder control Brake control (BS) Electric steering |
| 14 | 7.5A | Reversing light Flow meter Relays R8, R10, R11, R13 |
| 15 | 30A | Cooling fan, high speed (40A also used) |
| 16 | 60A | Body control unit |
| 17 | 40A | Brake vacuum pump |
| 18 | 70A | Electric steering |
| 19 | 20A | Cooling fan, low speed (30A also used) |
| 20 | 30A | Sequential gearbox |
| 21 | 20A | Ignition switch |
| 22 | Not used | |
| 23 | Not used | |
| 24 | 20A | Hi-Fi amplifier Subwoofer |
| 25 | 10A | Engine management |
| 26 | 10A | Engine management |
| 27 | 15A | Ignition coil Injector |
| 28 | 30A | Climate control fan |
| 29 | 15A | Power socket |
| R1 | Cooling fan, high-speed relay | |
| R2 | Single-speed cooling fan relay Cooling fan, low-speed relay | |
| R3 | Sequential gearbox relay | |
| R4 | Main relay | |
| R5 | Climate control fan relay | |
| R6 | Power socket relay | |
| R7 | Fuel pump relay Additional relay, fuel pump | |
| R8 | Fog light relay | |
| R9 | Start inhibitor relay | |
| R10 | Heated rear windscreen relay | |
| R11 | Main beam relay | |
| R12 | Horn relay | |
| R13 | Air-conditioning compressor relay Or Horn | |
| R14 | Not used |
1 | ABS control module |
2 | Aerial module – in headlining |
3 | AC/heater control module- in AC/heater function control panel |
4 | Airbag crash sensor, driver – in B-post |
5 | Airbag crash sensor, passenger – in B-post |
6 | Airbag crash sensor, front |
7 | Audio unit amplifier – behind RH rear trim |
8 | Audio unit |
9 | Battery |
10 | Data link connector (DLC) |
11 | Door mirror control module – in driver's door handle |
12 | Power steering control module |
13 | Engine control module (ECM) |
14 | Fuse box/relay plate , engine bay |
15 | Fuse box/relay plate , fascia |
16 | Horn |
17 | Headlamp adjustment motor, left |
18 | Headlamp adjustment motor, right |
19 | Heated rear window relay – in engine bay fuse box/relay plate |
20 | Heater blower speed resistor – in heater box |
21 | Immobilizer read coil – near ignition switch |
22 | Instrumentation control module |
23 | Multifunction control module – functions: Central locking , electric windows , front fog lamps , hazard warning lamps , headlamps, immobilizer , indicators , rear fog lamp , rear screen wash/wipe system |
24 | Parking aid control module – behind RH rear trim |
25 | Seat belt pretensioner, driver – in B-post |
26 | Seat belt pretensioner, passenger – in B-post |
27 | Subwoofer – under seat |
28 | Sunroof control module- in headlining |
29 | Supplementary restraint system (SRS) control module – under centre console |
30 | Telematics control module – behind LH rear trim |
31 | Transmission control module (TCM) |
32 | Yaw rate sensor / G-force sensor, lateral – under centre console |
