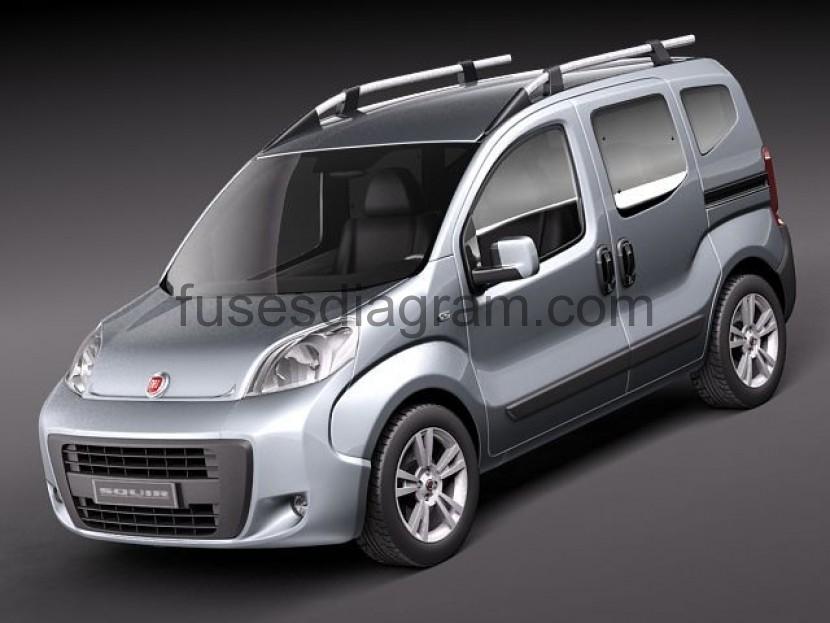

Fuse box diagram Fiat Fiorino /Qubo 2008-2018

For Fiat Fiorino  /Qubo (300, 225) 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 model year.

Fuse box in passenger compartment.

fuse box location.

Loosen the two screws A using the metallic insert of ignition key and then remove the flap B.

fuse box diagram.

Assignment of the fuses.

Fuse 12
Headlights, dipped beam
Or
Not used
7.5 A
Fuse 13
Left dipped beam (with headlight range adjustment)
Or
Headlight levelling
(5A also used)
7.5 A
Fuse 31
Junction box
Rear 12V socket
5.0 A
Fuse 32
Interior light
Luggage compartment light
Interior lighting timer
Or
Not used
7.5 A
Fuse 36
Diagnostic socket
Radio
Bluetooth system
Alarm siren
10.0 A
Fuse 37
Brake light switch
Dashboard
5.0 A
Fuse 38
Central locking
20.0 A
Fuse 43
Front and rear washer pumps
15.0 A
Fuse 47
Driver's window
20.0 A
Fuse 48
Passenger's power window
20.0 A
Fuse 49
Parking sensor
Lighting control
Alarm sensor
Electric mirror controls
5.0 A
Fuse 50
Airbag control unit
7.5 A
Fuse 51
Mirrors
Climate control
Radio
Bluetooth system
Brake light switch
Reversing light switch
Clutch switch
Ignition relay
5.0 A
Fuse 53
Dashboard
5.0 A
Fuse 41
Heated mirrors
7.5 A
Fuse 45
No information is available
Fuse 46
No information is available
Fuse 90
No information is available
Fuse 91
No information is available
Fuse 92
No information is available
Fuse 93
No information is available
Fuse 94
Cigarette lighter
15.0 A
Fuse 95
Rear 12V socket
or not used
15.0 A
Fuse 96
Front 12V socket
15.0 A
Fuse 97
Heated driver's seat
10.0 A
Fuse 98
Heated passenger's seat
10.0 A

Fuse box in engine compartment.

The fuse box is on the right-hand side of the engine.

remove protective lid A from the positive battery terminal by lifting it upwards

press the tab A and remove the fuse box protective lid B;

move the lid towards the headlight, turning it anticlockwise (as shown by the arrow) and then remove it.

the fuse box can be accessed in this manner

Refitting the fuse box lid Proceed as follows to refit the lid:

 insert the two tabs A in the respective seats located on the fuse box;

 refasten the tab B in the corresponding seat until it clicks.

fuse box diagram.

legend.

Fuse 1
Body control unit
60.0 A
Fuse 2
Air-conditioning fan
40.0 A
Fuse 3
Ignition switch
20.0 A
Fuse 4
ABS/ESP control unit
40.0 A
Fuse 5
Not used
Fuse 6
Cooling fan, low speed
20.0 A
Fuse 7
Cooling fan, high speed
30.0 A
Fuse 8
Fog light
Or
Climate control fan
(30A also used)
15.0 A
Fuse 9
CNG
Or
Trailer
(15A also used)
or not used
10.0 A
Fuse 10
Horns
10.0 A
Fuse 11
Engine management system
10.0 A
Fuse 14
Headlights, main beam bulb
15.0 A
Fuse 15
Rear 12V socket
15.0 A
Fuse 16
Engine control unit
Gearbox
7.5 A
Fuse 17
Engine control unit
10.0 A
Fuse 18
Engine control unit
Or
CNG
(5A also used)
7.5 A
Fuse 19
Air-conditioning compressor
7.5 A
Fuse 20
Rear demister
Heated mirrors
30.0 A
Fuse 21
Fuel pump
15.0 A
Fuse 22
Engine management system
Ignition coil
Injectors
(20A also used)
15.0 A
Fuse 23
ABS/ESP control unit
20.0 A
Fuse 24
ABS/ESP control unit
Steering
Yaw rate sensor
7.5 A
Fuse 30
Fog lights
15.0 A
Fuse 81
Glow plug control unit
(60A also used)
50.0 A
Fuse 82
Gearbox hydraulic pump relay
Or
Not used
30.0 A
Fuse 83
Gearbox hydraulic pump relay
Or
Not used
30.0 A
Fuse 84
Control unit
Solenoid(s)
15.0 A
Fuse 85
Cigarette lighter
Charge socket
Heated seats
30.0 A
Fuse 87
Reversing lights
Mass airflow meter
Water in fuel sensor
Headlight relay, main beam
Fog lights
Demister
Compressor
Or
Battery sensor
(5A also used)
7.5 A
Relay R1
Cooling fan, high speed
Relay R2
Cooling fan
Cooling fan, low speed
Relay R3
Gearbox hydraulic pump relay
Relay R4
Engine management system
Relay R5
Fog lights
Or
Climate control
Relay R6
Charge socket
Heated seats
Relay R7
Engine Start and Stop system relay
Relay R8
Climate control fan
Or
Fog lights
Relay R9
CNG relay
Or
Engine Start and Stop system relay
Relay R10
Relay, rear demister
Relay R11
Headlight relay, main beam
Relay R12
Horns
Relay R13
Air-conditioning compressor
Relay R14
Fuel pump
