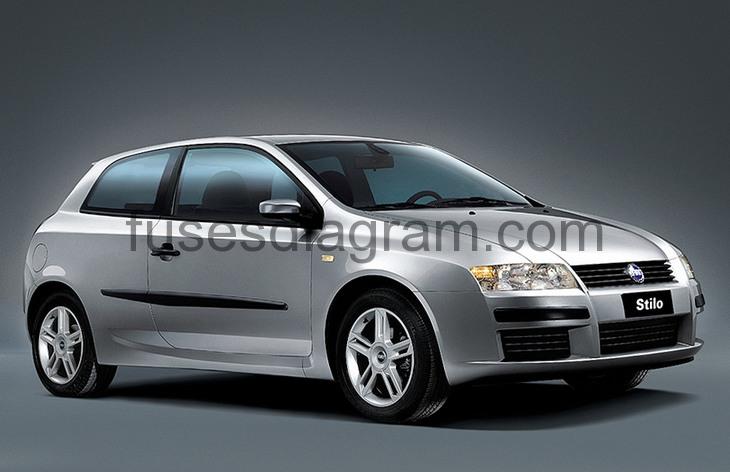

For Fiat Stilo (192) 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008 model year.
| Cigarette lighter fuse – fuse box in passenger compartment – Fuse F20/20A |
Fuse box in passenger compartment.
fuse box location.
To reach the control box on the front panel, the glove box (A) open it and press the fastener (B).
fuse box diagram.
Assignment of the fuses.
| 1 | Electric windows relay, sunroof relay |
| 2 | Heated rear window relay |
| 3 | Windscreen wiper motor relay, cigarette lighter relay |
| 4 | Headlamp relay |
| F1 | (20A) Electric window (right rear) |
| F2 | (20A) Door function control module, driver’s side/electric window, front passenger’s door |
| F3 | (7,5A) Anti-lock brake system (ABS), alarm system, audio system, auxiliary heater, heater/air conditioning (AC), indicators, interior lamps, telephone, parking aid control module, sunroof, windscreen wiper rain sensor/ambient lightsensor |
| F4 | (7,5A) Anti-lock brake system (ABS), brake pedal position (BPP) switch, cruise control, engine management |
| F5 | (15A) Headlamp adjustment, headlamp low beam, left |
| F6 | (20A) Sunroof |
| F7 | (20A) Electric window, left rear |
| F8 | (10A) Airbag, anti-lock brake system (ABS), engine management, gas discharge headlamps, headlamp adjustment, instrument panel, trip computer, stop lamps |
| F9 | (7,5A) Anti-lock brake system (ABS) |
| F10 | (15A) Headlamp adjustment, headlamp low beam, right |
| F11 | (20A) Sunroof |
| F12 | (20A) Door function control module, driver’s side, electric window, driver’s side |
| F13 | (15A) Door function control modules |
| F14 | (7,5A) Airbag |
| F15 | (7,5A) Tyre pressure monitor control module |
| F16 | (15A) Rear screen wash/wipe system |
| F17 | (7,5A) Heated windscreen washer jets |
| F18 | (30A) Rear screen wash/wipe system, windscreen wash/wipe system |
| F19 | (30A) Heated rear window |
| F20 | (20A) Auxiliary power socket, cigarette lighter |
| F21 | (20A) Central locking, switch illumination, trailer socket |
| F22 | (10A) Alarm system, audio system, auxiliary heater, data link connector (DLC), interior lamps, heater/air conditioning (AC), telephone, tyre pressure monitor control module, navigation system |
| F23 | (10A) Boot lid/tailgate release, fuel filler flap release |
| F24 | (10A) Hazard warning lamps, instrument panel, trip computer |
| F25 | (7,5A) Air purity sensor, electric door mirrors, headlamp washers, heater/air conditioning (AC), rear screen wash/wipe system, reversing lamps, windscreen wash/wipe system |
Fuse box in the engine compartment.
Fuse box next to the battery.
fuse box location.
To gain access to the fuse box and to the single fuse next to the battery, press the retainers A and remove the protection cover B.
fuse box diagram.
legend.
| 1 | Fuel heater relay |
| 2 | – |
| 3 | Engine control (EC) relay |
| 4 | Fuel pump (FP) relay |
| 5 | Engine coolant blower motor relay – low speed (1,2/1,6) |
| 6 | AC compressor clutch relay |
| 7 | Engine coolant blower motor relay – high speed (1,2/1,6) |
| 8 | Headlamp washer pump relay |
| 9 | Fog lamp relay |
| 10 | Horn relay |
| 11 | Heater blower relay |
| 12 | Headlamp high beam relay |
| F1 | (60A) Anti-lock brake system (ABS) |
| F2 | (70A) Power steering |
| F3 | (30A) Selespeed |
| F4 | (30A) Engine coolant blower motor, low speed -1,2/1,6 |
| F5 | (50A) Engine coolant blower motor, high speed -1,2/1,6 |
| F6 | (50A) Glow plugs |
| F7 | (30A) Auxiliary heater, heater/air conditioning (AC) |
| F8 | (20A) Ignition switch |
| F9 | (30A) Engine management – Diesel |
| F10 | (15A) Engine management – petrol |
| F11 | (15A) Engine management – petrol |
| F12 | (10A) Engine management – Diesel/petrol |
| F13 | (15A) Engine management – Diesel/petrol |
| F14 | (7,5A) Air conditioning (AC), engine management (Diesel/petrol) |
| F15 | (15A) Selespeed |
| F16 | (15A) Fog lamps |
| F17 | (20A) Headlamp washers |
| F18 | (7,5A) Engine coolant blower motor control module (1,8/2,0/JTD), engine management, starter motor relay (Selespeed) |
| F19 | (7,5A) Air conditioning (AC) |
| F20 | (10A) Headlamp high beam, left |
| F21 | (15A) Horn |
| F22 | (10A) Headlamp high beam, right |
| F23 | (10A) Power steering |
Fuse box on the battery positive pole.
To gain access to the fuses in the fuse box on the battery positive pole press the retainers A and remove the protection cover B.
fuse box diagram.
legend.
| F1 | (70A) Fascia fuse box/relay plate |
| F2 | (60A) Electric windows relay, sunroof relay, fuse box/relay plate – luggage compartment |
| F3 | (50A) Auxiliary heater |
| F4 | (150A) Engine bay fuse box/relay plate 1 |
Fuse box in the boot.
Saloon versions
To gain access to the fuses in the fuse box on the left side of the boot, open lid A as shown in the figure.
Multi Wagon versions
To gain access to the fuses in the fuse box on the left side of the boot, proceed as follows:
turn the knob A and open the lid B; hold the tab C to open the second lid D and gain access to the fuse box.
fuse box diagram.
legend.
| 1 | Seat heater relay |
| 2 | Stop lamps relay, stop lamp (high level) – cruise control |
| F1 | – |
| F2 | – |
| F3 | (10A) Alarm system |
| F4 | – |
| F5 | (25A) Audio unit output amplifier (with HI-FI audio unit) |
| F6 | – |
| F7 | (30A) Electric seat, driver’s seat |
| F8 | (10A) Seat heater, passenger’s seat |
| F9 | (10A) Seat heater, driver’s seat |
| F10 | (30A) Electric seat, passenger’s seat |
| F11 | – |
| F12 | (7,5A) Stop lamp (high level) – cruise control |
