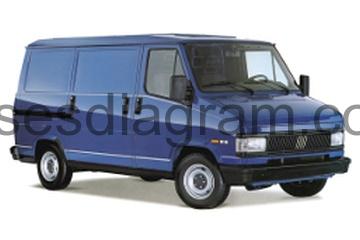

For Fiat Ducato 1989, 1990, 1991, 1992, 1993, 1994 model year.
| Cigarette lighter fuse – Fuse F2/8A |
Fuse box diagram.
Assignment of the fuses.
Fuse 1
Cooling fan 1
25.0 A
Fuse 2
Cigarette lighter
Interior light(s)
Radio
Hazard warning system
Horns
8.0 A
Fuse 3
Left main beam
Main beam
8.0 A
Fuse 4
Right main beam
8.0 A
Fuse 5
Left dipped beam
Rear fog light(s)
Rear fog light warning light
8.0 A
Fuse 6
Right dipped beam
8.0 A
Fuse 7
Right sidelights
Left tail light
Number plate light(s)
Instrument lighting
Cigarette lighter light
Illumination, switch(es)
5.0 A
Fuse 8a
Left sidelights
Right tail light
Number plate light(s)
5.0 A
Fuse 8b
Left sidelights
Right tail light
Number plate light(s)
Headlight washers
5.0 A
Fuse 9
Wash/wipe system
Glovebox illumination
Heater blower
Direction indicators
Water temperature sensor
Fuel gauge
Warning lights
8.0 A
Fuse 10
Brake light(s)
Reversing light(s)
8.0 A
Fuse 11
Spare fuse/relay
16.0 A
Fuse 12
Cooling fan 2
25.0 A
