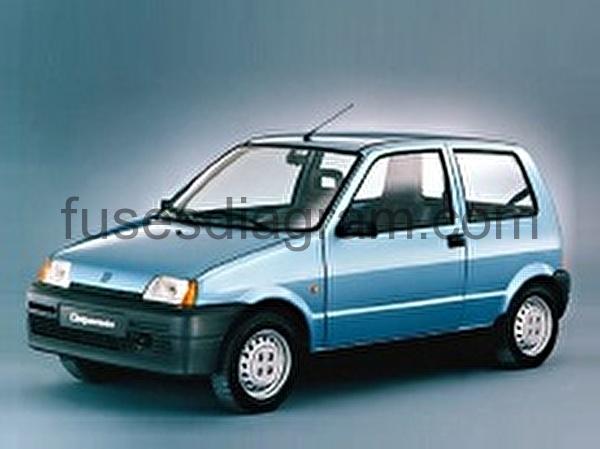

Fuses and Relay Fiat Cinquecento

For Fiat Cinquecento (170) 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998 model year.

Cigarette lighter fuse – fuse box in passenger compartment – Fuse F1/15A



Fuse box in passenger compartment.

fuse box location.

fuse box diagram.

Assignment of the fuses.

Fuse 1
Hazard warning lights
Clock
Horn
Interior light(s)
Cigarette lighter
Radio
15.0 A
Fuse 2
Heated rear windscreen
15.0 A
Fuse 3
Cooling fan
25.0 A
Fuse 4
Instrument panel
Direction indicators
10.0 A
Fuse 5
Left main beam
10.0 A
Fuse 6
Right main beam
10.0 A
Fuse 7
Wash/wipe system
15.0 A
Fuse 8
Right dipped beam
10.0 A
Fuse 9
Left dipped beam
10.0 A
Fuse 10
Rear fog light(s)
7.5 A
Fuse 11
Instrument panel
Cigarette lighter
Clock
Right tail light
Right number plate light
Front left sidelight
7.5 A
Fuse 12
Instrument panel
Front right sidelight
Left tail light
Left number plate light
7.5 A
Fuse 13
Brake light(s)
Reversing light(s)
7.5 A
Fuse 14
Wash/wipe system
20.0 A
Fuse 15
Blower
15.0 A
Fuse 16
Windows
25.0 A
Fuse 17
Central locking
15.0 A
Relay R1
Main beam
Cooling fan
Relay R2
Heated rear windscreen
Relay R3
Horn
Relay R4
Flasher unit




Fuse box in engine compartment.

legend.

1Fuel pump relay
2Engine control module relay
F1(20A) Fuel pump relay fuse
F2(5A) ECM fuse
