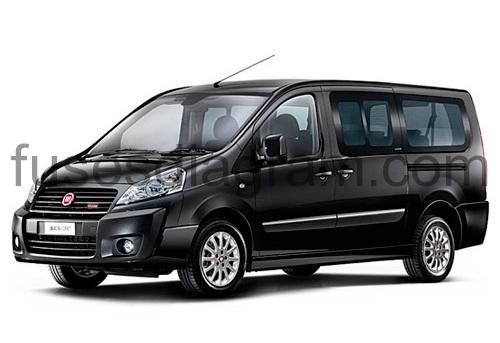

For Fiat Scudo (272) 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016 model year.
| Cigarette lighter fuse – fuse box in passenger compartment – Fuse F9/10A |
Fuse box in passenger compartment.
fuse box location.
Fuse box is located on the dashboard on passenger side.
fuse box diagram.
Assignment of the fuses.
Fuse 1
Rear wiper motor
15.0 A
Fuse 3
Airbag control unit
5.0 A
Fuse 4
Steering angle sensor
Diagnostic connector
ESP sensor
Manual climate control
Clutch pedal switch
Headlight adjustment
Diesel particulate filter additive pump
10.0 A
Fuse 5
Electric rear-view mirror
Passenger’s power window
30.0 A
Fuse 6
Front power windows
30.0 A
Fuse 7
Courtesy light(s)
Glovebox light
5.0 A
Fuse 8
Multifunction display
Alarm control unit
CD player
Radio
Telephone
Trailer fuse box
20.0 A
Fuse 9
Cigarette lighter
Rear 12V socket
10.0 A
Fuse 10
Controls under the steering wheel
Suspension control unit
Instrument panel
30.0 A
Fuse 11
Diagnostic connector
Alarm switch
15.0 A
Fuse 12
Parking control unit
Airbag control unit
Handsfree kit
15.0 A
Fuse 13
Fuse box No. 1 in engine compartment
Trailer fuse box
5.0 A
Fuse 14
Rain sensor
Ventilation control
Air-conditioning control unit
Instrument panel
15.0 A
Fuse 15
Door lock
30.0 A
Fuse 17
Heated rear windscreen
Rear-view mirror
40.0 A
16
Not used
Fuse box on the battery.
legend.
| Fuses | Amps] | Circuits Protected |
|---|---|---|
| F1 | 30 | Seat warming system |
| F2 | — | 12V socket -third row seats (combined fittings) |
| F3 | 40/50 | Trailer services control unit and (where provided) Panel workers protection control unit |
| F4 | — | Free |
| F36 | 15 | Swing-door locks |
| F37 | 10 | Swing-door locks |
| F3S | 20 | Rear window wiper on swing-door |
| F39 | — | Ventilation rear part of passenger compartment (combined fittings) |
| F40 | 5 | Folding mirrors |
Fuse box in engine compartment.
fuse box location.
fuse box diagram (type 1).
legend.
Fuse 1
Engine control unit
Main relay
Pump element shut-off solenoid
Intercooler valve control motor
Mass airflow meter with air temperature sensor
Water separator sensor
Cooling fan
20.0 A
Fuse 2
Horn
15.0 A
Fuse 3
Windscreen washer pump
10.0 A
Fuse 4
Headlight washer pump
20.0 A
Fuse 5
Engine control unit
Fuel additive pump
Air preheating resistor
15.0 A
Fuse 6
Power steering
Brake pedal switch
Cooling fan
10.0 A
Fuse 7
ABS
ESP
10.0 A
Fuse 8
Starter motor
20.0 A
Fuse 9
Brake pedal switch
10.0 A
Fuse 10
Wastegate control solenoid
Fuel heating element
Or
Engine control unit
Water in fuel sensor
Fuel heating element
Turbo pressure control solenoid
Throttle control solenoid
Pump element shut-off solenoid
Fuel pressure sensor
Mass airflow meter
30.0 A
Fuse 11
Climate control
40.0 A
Fuse 12
Windscreen wiper
30.0 A
Fuse 13
Body control unit
40.0 A
Fuse 14
Not used
Fuse MF1
Additional heater
30.0 A
Fuse MF2
ABS
ESP
40.0 A
Fuse MF3
ABS
ESP
30.0 A
Fuse MF4
Fuse box in passenger compartment
60.0 A
Fuse MF5
Fuse box in passenger compartment
70.0 A
Fuse MF6
Fuel burning heater
30.0 A
Fuse MF7
Not used
Fuse MF8
Not used
Fuse box in engine compartment (type 2).
legend.
Fuse 1
Main relay
Engine control unit
20.0 A
Fuse 2
Horns
15.0 A
Fuse 3
Front and rear windscreen washers
10.0 A
Fuse 4
Headlight washer pump
20.0 A
Fuse 5
Engine control unit
Diesel fuel heater
Fuel additive pump
Fuel pump
15.0 A
Fuse 6
Cooling fan
Brake pedal switch
Power steering pump
10.0 A
Fuse 7
ABS/ESP control unit
10.0 A
Fuse 8
Starter solenoid
20.0 A
Fuse 9
Brake pedal switch
10.0 A
Fuse 10
Water in fuel sensor
Wastegate control solenoid
Intercooler valve control solenoid
Or
Engine control unit
Fuel pressure control solenoid
Pump element shut-off solenoid
Or
Engine control unit
30.0 A
Fuse 11
Heating and air conditioning
Blower, additional heater
40.0 A
Fuse 12
Front wiper control
30.0 A
Fuse 13
Fuse box in passenger compartment
40.0 A
Fuse 14
Not used
30.0 A
Fuse 15
Right main beam
10.0 A
Fuse 16
Left main beam
10.0 A
Fuse 17
Left dipped beam
15.0 A
Fuse 18
Right dipped beam
15.0 A
Fuse 19
Engine control unit
Or
Pump element shut-off solenoid
Or
Mass airflow meter
Throttle control solenoid
Or
Mass airflow meter
Positive crankcase ventilation
15.0 A
Fuse 20
Engine control unit
Or
Variable geometry turbine (VGT)
Water in fuel sensor
Injection pump, diesel
Or
Fuel heating element
10.0 A
Fuse 21
Cooling fan relay, left side
Right cooling fan
Cooling fan, high-speed relay
5.0 A
Fuse MF1
Not used
Fuse MF2
ABS/ESP control unit
40.0 A
Fuse MF3
ABS/ESP control unit
30.0 A
Fuse MF4
Fuse box in passenger compartment
60.0 A
Fuse MF5
Fuse box in passenger compartment
70.0 A
Fuse MF6
Additional heater
20.0 A
Fuse MF7
Automatic transmission control unit
20.0 A
Fuse MF8
Blower relay
30.0 A
Fuse box No. 2 in engine compartment.
legend.
Fuse 36
Tailgate/boot release relay
15.0 A
Fuse 37
Tailgate/boot release relay
10.0 A
Fuse 38
Rear wiper relay
20.0 A
Fuse 39
Coolant pump relay
10.0 A
Fuse 40
Rear-view mirror relay
5.0 A
Fuse box No. 3 in engine compartment.
legend.
Fuse FL1
Power steering pump
100.0 A
Fuse FL2
Cooling fan No. 1
60.0 A
Fuse FL3
Cooling fan No. 2
60.0 A
Fuse FL4
Suspension control unit
40.0 A
Fuse FL5
Preheating control unit
100.0 A
Fuse FL6
Cooling fan
(No value is available)
Preheating control unit
100.0 A
Additional relays.
legend.
Relay R1
Cooling fan, low-speed relay
Relay R2
Cooling fan, high-speed relay 1
Relay R3
Cooling fan, high-speed relay 2
Relay R4
Rear windscreen wiper relay
Relay R5
Rear-view mirror relay
Relay R6
Air-conditioning condenser fan low-speed relay
Relay R7
Additional heater relay 1
Relay R8
Additional heater relay 2
Relay R9
Heated passenger’s seat control relay
Relay R10
Heated driver’s seat control relay
