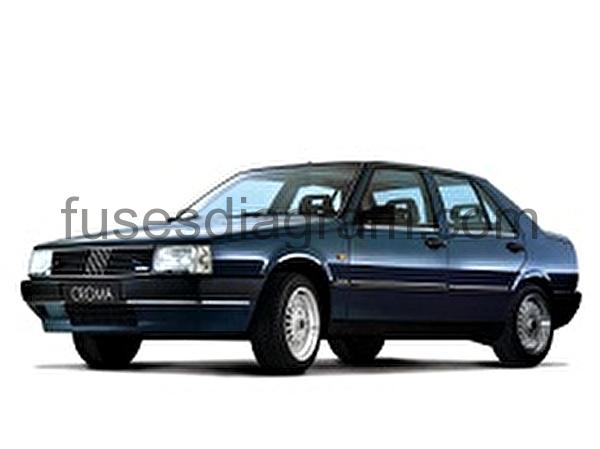

For Fiat Croma (154) 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994 model year.
| Cigarette lighter fuse – fuse box in passenger compartment – Fuse F12/10A |
Fuse box in passenger compartment, standard versions.
fuse box diagram.
Assignment of the fuses.
Fuse 1
Warning lights
Hazard warning light switch
Flasher unit
Reversing light(s)
Rear fog light(s)
Glovebox light(s)
10.0 A
Fuse 2
Windscreen wiper(s)
Windscreen washer(s)
20.0 A
Fuse 3
Left sidelight
Right tail light
Right number plate light
Cigarette lighter illumination
7.5 A
Fuse 4
Right sidelight
Left tail light
Instrument lighting
Warning light, sidelights
Left number plate light
7.5 A
Fuse 5
Left dipped beam
10.0 A
Fuse 6
Right dipped beam
10.0 A
Fuse 7
Left main beam
Main beam
10.0 A
Fuse 8
Right main beam
10.0 A
Fuse 9
Cooling fan
25.0 A
Fuse 10
Rear wiper and washer
20.0 A
Fuse 11
Heated rear windscreen
Heated rear windscreen warning light
20.0 A
Fuse 12
Cigarette lighter
Clock
Interior light(s)
Luggage compartment light(s)
Brake lights
10.0 A
Fuse 13
Hazard warning light switch
Flasher unit
10.0 A
Fuse 14
Horn
Horn relay
20.0 A
Relay R1
Horn relay
Relay R2
Heated rear windscreen relay
Fuse box in passenger compartment, Super versions.
legend.
Fuse 1
Front left sidelight
Right tail light
Right number plate light
Clock
7.5 A
Fuse 2
Front right sidelight
Left tail light
Left number plate light
Dimmer
Cigarette lighter illumination
Warning light, sidelights
Heater panel illumination
7.5 A
Fuse 3
Left dipped beam
10.0 A
Fuse 4
Right dipped beam
10.0 A
Fuse 5
Left main beam
Main beam
10.0 A
Fuse 6
Right main beam
10.0 A
Fuse 7
Front right fog lights
Front fog light warning light
15.0 A
Fuse 8
Rear fog light(s)
Rear fog light warning light
7.5 A
Fuse 9
Heated rear windscreen
Heated rear windscreen warning light
Electric mirrors
20.0 A
Fuse 10
Horn
20.0 A
Fuse 11
Cooling fan
25.0 A
Fuse 12
Cigarette lighter
Radio
10.0 A
Fuse 13
Clock
Interior light(s)
Luggage compartment light(s)
Ignition key light
Hazard warning lights
10.0 A
Fuse 14
Central locking
20.0 A
Fuse 15
Hazard warning lights
Brake light(s)
10.0 A
Fuse 16
Clock
Instrument panel
Glovebox light(s)
Electric mirrors
Control unit (control system)
7.5 A
Fuse 17
Direction indicators
Reversing light(s)
Windscreen wiper(s)
Windscreen washer(s)
Rear wiper
Rear windscreen washer
Headlight wipers
Headlight washers
20.0 A
Fuse 18
Blower
25.0 A
Fuse 19
Front power windows
25.0 A
Fuse 20
Rear power windows
25.0 A
Fuse 21
Electric heated seat(s)
15.0 A
Fuse 22
Fuel pump
Vehicle speed relay
10.0 A
Fuse 23
Spare fuse/relay
10.0 A
Fuse 24
Spare fuse/relay
15.0 A
Relay E1
Spare fuse/relay
Relay E2
Flasher unit
Relay E3
Starter relay (automatic transmission)
Relay E4
Front fog light relay
Relay E5
Horn relay
Relay E6
Heated rear windscreen relay
Relay E7
Ignition switch relay
Relay E8
Spare fuse/relay
