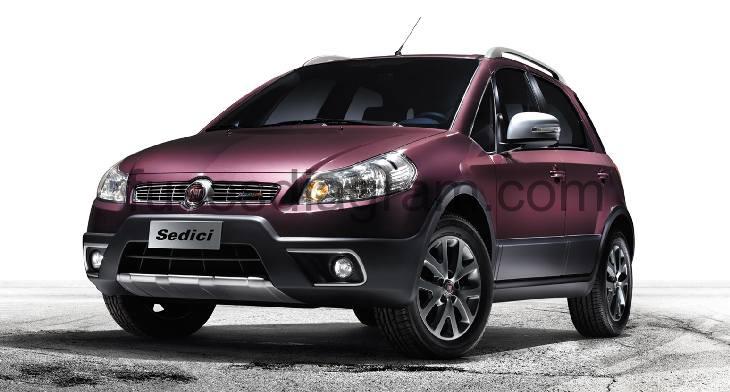

For Fiat Sedici (189) 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 model year.
| Cigarette lighter fuse – fuse box in passenger compartment – Fuse F6/15A |
Fuse box in passenger compartment.
fuse box location.
The fuses are located under the driver’s side of the dashboard.
fuse box diagram (petrol).
fuse box diagram (diesel).
Assignment of the fuses.
Fuse 1
Front wiper motor
Rear wiper motor
15.0 A
Fuse 2
Engine management
Immobiliser control unit
Inlet air temperature sensor
Mass airflow meter
Fuel pump relay
Alternator
Heated oxygen sensor 1
Heated oxygen sensor 2
Ignition coil 1
Ignition coil 2
15.0 A
Fuse 3
Reversing light
Air recirculation mode control motor
Cruise control switch
Air-conditioning control unit
4WD control unit
Right headlight levelling actuator
Left headlight levelling actuator
Headlight levelling switch
Engine management
Brake lights
Additional heater control unit
10.0 A
Fuse 4
Instrument panel
Hazard warning light relay
10.0 A
Fuse 5
Body control unit
Electric mirror switch
15.0 A
Fuse 6
Accessory socket
Cigarette lighter
Rear accessory socket
Audio
Multifunction display
Engine management
15.0 A
Fuse 7
Instrument panel
Rear wiper motor
Rear wiper relay
Daylight running system (DRL)
30.0 A
Fuse 8
Power steering control unit
Steering angle sensor
10.0 A
Fuse 9
Airbag control unit
15.0 A
Fuse 10
ABS control unit
ESP control unit
Accelerator pedal position sensor
Yaw rate sensor
10.0 A
Fuse 11
Instrument panel
10.0 A
Fuse 12
Brake lights
10.0 A
Fuse 13
Body control unit
20.0 A
Fuse 14
4WD control unit
15.0 A
Fuse 15
Starter relay
10.0 A
Fuse 16
Seat heater
15.0 A
Fuse 17
Ignition 2
Preheating relay
10.0 A
Fuse 18
Rear fog lights
10.0 A
Fuse 19
Roof lights
Audio
Body control unit
Diagnostic socket
Engine management
Interior lighting
Luggage compartment light
Key switch
Multifunction display
15.0 A
Fuse 20
Heated rear windscreen
30.0 A
Fuse 21
Horn relay
Hazard warning light relay
15.0 A
Fuse 22
Immobiliser
10.0 A
Fuse 23
Not used
Fuse 24
Driver’s power window switch
Passenger’s power window switch
Switch, rear left power window(s)
Switch, rear right power window(s)
30.0 A
Fuse box in engine compartment.
fuse box location.
fuse box diagram (petrol).
legend.
Fuse 6
Right headlight
15.0 A
Fuse 7
Left headlight
15.0 A
Fuse 8
Front fog lights
20.0 A
Fuse 9
Power steering control unit
60.0 A
Fuse 10
ABS control unit
40.0 A
Fuse 11
Radiator fan motor
30.0 A
Fuse 12
ABS control unit
30.0 A
Fuse 13
Starter
30.0 A
Fuse 14
Ignition switch
30.0 A
Fuse 15
Engine cooling fan
30.0 A
Fuse 16
Air-conditioning compressor
20.0 A
Fuse 17
Throttle control motor
15.0 A
Fuse 18
Automatic transmission
15.0 A
Fuse 19
Fuel injection
15.0 A
Relay R20
Automatic transmission relay
Relay R21
Climate control compressor relay
Relay R22
Fuel pump relay
Relay R23
Condenser fan
Relay R24
Front fog light relay
Relay R25
Throttle control motor relay
Relay R26
Main relay
Relay R27
Starter relay
Relay R28
Engine cooling fan
Fuse box diagram (diesel – engine).
legend.
Fuse 8
Right headlight
15.0 A
Fuse 9
Left headlight
15.0 A
Fuse 10
Front fog lights
20.0 A
Fuse 11
Starting
50.0 A
Fuse 12
Power steering
60.0 A
Fuse 13
ABS control unit
40.0 A
Fuse 14
Radiator fan motor
30.0 A
Fuse 15
ABS control unit
30.0 A
Fuse 16
Starter
30.0 A
Fuse 17
Ignition switch
50.0 A
Fuse 18
Engine cooling fan
30.0 A
Fuse 19
Air-conditioning compressor
10.0 A
Fuse 20
Fuel pump
20.0 A
Fuse 21
Condenser fan
30.0 A
Fuse 22
Fuel injection
20.0 A
Relay R23
Additional heater relay 3
Relay R24
Air compressor relay
Relay R25
Fuel pump relay
Relay R26
Condenser fan
Relay R27
Front fog lights
Relay R28
Additional heater relay 2
Relay R29
Additional heater relay
Relay R30
Starter
Relay R31
Radiator fan relay
Relay R32
Radiator fan relay
Relay R33
Radiator fan relay
Fuse box №2 in engine compartment (petrol).
fuse box location.
fuse box diagram.
legend.
| Fuse | Amps | Description |
| (1) | 80A | All electric load |
| (2) | 50A | Power window, Ignition Wiper, Starter |
| (3) | 50A | Tail light, Rear defogger, Door lock, Hazard/ Horn, Dome |
| (4) | 80A | Heater, Air compressor, Power steering |
| (5) | 15A | Radiator fan, Front fog light, Head light |
Fuse box №2 in engine compartment (diesel).
fuse box location.
fuse box diagram.
legend.
| 1 | Fuel heater relay |
| 2 | Engine control (EC) relay |
| F36 | (15A) Engine management |
| F37 | (15A) Engine management |
| F38 | (20A) Engine management |
Fuse box №3 in engine compartment (diesel).
legend.
Glow plugs
80.0 A
Fuse 2
Heater
30.0 A
Fuse 3
Electrical systems
140.0 A
Fuse 4
Lights
50.0 A
Fuse 5
Heater
30.0 A
Fuse 6
Heater
50.0 A
Fuse 7
Heater
30.0 A
