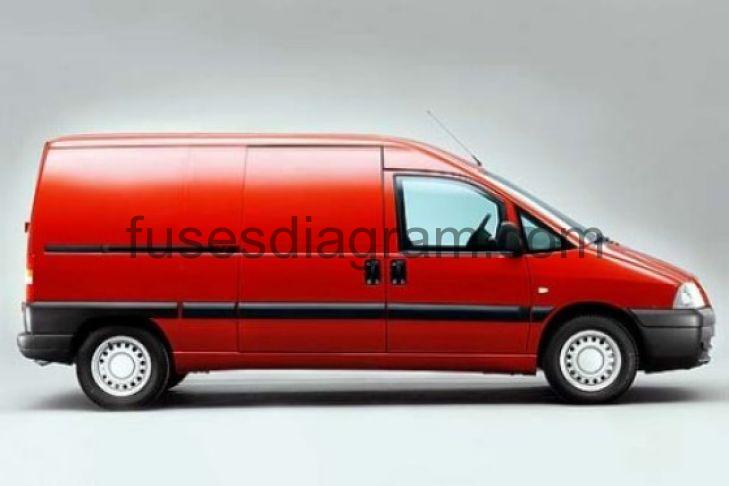

For Fiat Scudo (222) 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 model year.
| Cigarette lighter fuse – fuse box in passenger compartment – Fuse F2/25A (pre 1999) Cigarette lighter fuse – fuse box in passenger compartment – Fuse F15/250A (since 1999) Cigarette lighter fuse – fuse box in passenger compartment – Fuse F23/20A (since 2003) |
Fuse box in passenger compartment.
fuse box location.
fuse box diagram (pre 1999).
Assignment of the fuses.
Fuse 1
Instrument panel
Reversing light(s)
Water in fuel sensor
10.0 A
Fuse 2
Intermittent switch unit (position 0)
Radio
Brake lights
Cigarette lighter
25.0 A
Fuse 3
Power window relay
Windscreen wiper delay unit
Windscreen wiper(s) switch
Windscreen wiper(s) motor
Instrument panel supply
Power window control unit
25.0 A
Fuse 4
Air-conditioning pressure switch
Heated rear windscreen relay
Air-conditioning control
Cooling fan relay, stage 1
Relay, heated seats
10.0 A
Fuse 5
Windscreen wiper motor supply
Horn
30.0 A
Fuse 6
Air-conditioning memory
Clock
Radio memory
Front courtesy light(s)
Rear courtesy light(s)
5.0 A
Fuse 7
Cooling fan relay
Bitron unit relay
Compressor on/off
(20A also used)
5.0 A
Fuse 8
Central locking control unit
20.0 A
Fuse 9
Heated seat control
20.0 A
Fuse 10
Intermittent switch unit (position 1)
10.0 A
Fuse 11
Rear fog light(s)
Trailer lights
Front fog lights
5.0 A
Fuse 12
Right sidelight
Left tail light
Trailer lights
Heated seat switch illumination
5.0 A
Fuse 13
Instrument lighting
Left sidelight
Right tail light
Trailer lights
Lights on
Number plate light(s)
Radio illumination
Illumination, air-conditioning controls
Heated rear windscreen switch illumination
Hazard warning light switch illumination
Rear fog light switch illumination
5.0 A
Fuse 14
Cooling fan relay, stage 2
Or
ABS
30.0 A
Fuse 15
Heated rear windscreen
30.0 A
Fuse box in passenger compartment (since 1999).
legend.
Fuse 1
Radio
10.0 A
Fuse 2
Instrument panel warning light(s)
Water in fuel sensor
Speed sensor
Water temperature sensor
Overspeed
Or
Instrument panel warning light(s)
Coolant level sensor
Engine temperature gauge
Speed sensor
Overspeed
5.0 A
Fuse 3
Spare fuse
Or
Cruise control
Speed sensor
Or
Cruise control
Speed sensor
Automatic transmission
Automatic transmission shift lock
Automatic transmission lever
Automatic transmission relay
15.0 A
Fuse 4
Front left sidelight(s)
Rear right sidelight(s)
Headlight levelling
5.0 A
Fuse 5
Air-conditioning pressure switch
Air-conditioning controls
Air-conditioning fan relay
Front power windows
Refrigerator
Or
Air-conditioning pressure switch
Air-conditioning controls
Front power windows
Heater
10.0 A
Fuse 6
Relay, heated seats
Demister
15.0 A
Fuse 7
Horns
20.0 A
Fuse 8
Front right sidelight(s)
Rear left sidelight(s)
Number plate lights
Headlight washers
5.0 A
Fuse 9
Spare fuse
30.0 A
Fuse 10
Spare fuse
30.0 A
Fuse 11
ABS
Diagnostic socket
Reversing lights
Coolant level sensor
Or
ABS
Diagnostic socket
Reversing lights
Coolant level sensor
Speed sensor
Automatic transmission shift lock
Oil heater
10.0 A
Fuse 12
Spare fuse
30.0 A
Fuse 13
Security system
5.0 A
Fuse 14
Courtesy light(s)
Central locking
Immobiliser
Security system
Or
Immobiliser
Security system
Central locking
30.0 A
Fuse 15
Cigarette lighter
20.0 A
Fuse 16
Air-conditioning compressor relay
Fan relay
Water temperature control unit
15.0 A
Fuse 17
Front fog lights
Rear fog light(s)
10.0 A
Fuse 18
Instrument lighting
Warning lights
Radio
Lights on
10.0 A
Fuse 19
Spare fuse
30.0 A
Fuse 20
Heated seat control
20.0 A
Fuse 21
Spare fuse
20.0 A
Fuse 22
Wiper control
Washer pump
30.0 A
Fuse 23
Instrument panel
Clock
Radio
Courtesy light(s)
Or
Instrument panel
Radio
Courtesy light(s)
10.0 A
Fuse 24
Direction indicators
Hazard warning lights
15.0 A
Fuse 25
Demister
Or
Demister
Electric rear-view mirror
30.0 A
Fuse 26
Power window relay
Cruise control
Brake lights
Charge warning light
Brake pad wear indicator
Or
Power window relay
Charge warning light
Brake pad wear indicator
Brake lights
15.0 A
Fuse 27
Power window relay
30.0 A
Fuse 28
Heated mirrors
Direction indicators
Lights on
15.0 A
Fuse 29
No information is available
Fuse 30
No information is available
Fuse 31
No information is available
Fuse 32
No information is available
Fuse 33
No information is available
Fuse 34
No information is available
Fuse box in passenger compartment (since 2003).
legend.
Fuse 1
Spare fuse
Fuse 2
Diagnostic socket
ABS
Reversing light
Air-conditioning fan relay
Oil heater
10.0 A
Fuse 3
Spare fuse
Fuse 4
Instrument panel warning light(s)
Overspeed
Speed sensor
5.0 A
Fuse 5
Cruise control
Automatic transmission
Automatic transmission lever
Automatic transmission relay
15.0 A
Fuse 6
Courtesy lights
Instrument panel lighting
Radio
5.0 A
Fuse 7
Heated rear windscreen
30.0 A
Fuse 8
Interior protection control unit
30.0 A
Fuse 9
Interior protection control unit
5.0 A
Fuse 10
Spare fuse
Fuse 11
Fan relay
Cooling fan engagement relay
5.0 A
Fuse 12
Power windows
Air-conditioning fan relay
Relay, heated seats
Heated rear windscreen
Refrigerator
Pressure switch
10.0 A
Fuse 13
Hazard warning lights
15.0 A
Fuse 14
Power windows
30.0 A
Fuse 15
Spare fuse
Fuse 16
Heated seats
20.0 A
Fuse 17
Horn
20.0 A
Fuse 18
Rear fog light
10.0 A
Fuse 19
Speed control
Sidelight
Relay, heated seats
Instrument panel lighting
Heated rear windscreen switch
Radio
Engine warning light
5.0 A
Fuse 20
Headlight adjustment
Front left sidelight
Rear right sidelight
5.0 A
Fuse 21
Headlight adjustment
Front right sidelight
Front left sidelight
5.0 A
Fuse 22
Spare fuse
Fuse 23
Cigarette lighter
20.0 A
Fuse 24
Radio
10.0 A
Fuse 25
Sidelight
Automatic transmission
Rear-view mirror
Direction indicators
10.0 A
Fuse 26
Front wiper relay
Windscreen washer pump
30.0 A
Fuse 27
Spare fuse
30.0 A
Fuse 28
Instrument panel warning lights
Power window relay
5.0 A
Fuse R
No information is available
Fuse R2
No information is available
Fuse R3
No information is available
Fuse R4
No information is available
Fuse R5
No information is available
Fuse box №1 in engine compartment.
fuse box location.
fuse box diagram (pre 1999).
legend.
Fuse 1
Not used
20.0 A
Fuse 2
Fuel pump
20.0 A
Fuse 3
Not used
10.0 A
Fuse 4
Not used
10.0 A
Fuse 5
Not used
10.0 A
Fuse 6
Injection control unit
10.0 A
Fuse 7
Not used
10.0 A
Fuse 8
Not used
10.0 A
Fuse 9a
Cooling fan 1
Cooling fan 2
25.0 A
Fuse 9b
Cooling fan 1
Cooling fan 2
30.0 A
Fuse 10
Front fog lights
Rear fog light(s)
Headlight washer pump
30.0 A
Fuse 11
Not used
30.0 A
Fuse 12
Headlight washer timer
5.0 A
Fuse 13
Oxygen sensor
15.0 A
Fuse 14
Spare fuse/relay
Fuse 15
Spare fuse/relay
Fuse 16
Spare fuse/relay
Fuse 17
Spare fuse/relay
Fuse 18
Spare fuse/relay
Fuse 19
ABS
Or
ESP control unit
30.0 A
Fuse 20a
Heater
30.0 A
Fuse 20b
Heater
40.0 A
Fuse 21a
Cooling fan
30.0 A
Fuse 21b
Cooling fan
50.0 A
Fuse 22a
Spare fuse/relay
40.0 A
Fuse 22b
Spare fuse/relay
50.0 A
Fuse 23
Spare fuse/relay
30.0 A
Relay R1
Discharge relay
Relay R2
Cooling fan 1 relay
Relay R3
Cooling fan 2 relay
Relay R4
Cooling fan, low-speed relay
Relay R5
Not used
Relay R6
Headlight washer relay
Relay R7
Air-conditioning compressor relay
Or
Horn
Relay R8
Front fog light relay
Relay R9
Air-conditioning compressor relay
Remote control switch for switching off compressor (from Bitron engine cooling control unit)
Relay R10
Spare fuse/relay
Fuse box №2 in engine compartment (since 1999) .
legend.
Fuse 1
Trailer connector
20.0 A
Fuse 2
Fuel pump
20.0 A
Fuse 3
Left dipped beam
10.0 A
Fuse 4
Right dipped beam
10.0 A
Fuse 5
Diagnostic connector
10.0 A
Fuse 6
Security system
10.0 A
Fuse 7
Left main beam
10.0 A
Fuse 8
Right main beam
10.0 A
Fuse 9a
Engine cooling
25.0 A
Fuse 9b
Engine cooling
40.0 A
Fuse 10
Headlight washer
30.0 A
Fuse 11
Not used
Fuse 12
Headlight washer timer
5.0 A
Fuse 13
Oxygen sensor
15.0 A
Fuse 14
Spare fuse/relay
Fuse 15
Spare fuse/relay
Fuse 16
Spare fuse/relay
Fuse 17
Spare fuse/relay
Fuse 18
Spare fuse/relay
Fuse 19
Not used
30.0 A
Fuse 20
Heater
Air conditioning
40.0 A
Fuse 21
Engine cooling
Ignition switch
50.0 A
Fuse 22
Spare fuse/relay
40.0 A
Fuse 23
Spare fuse/relay
30.0 A
Relay R1
Discharge relay
Relay R2
Cooling fan 1 relay
Relay R3
Cooling fan 2 relay
Relay R4
Cooling fan, low-speed relay
Relay R5
Not used
Relay R6
Headlight washer relay
Relay R7
Air-conditioning compressor relay
Relay R8
Front fog light relay
Relay R9
Air-conditioning compressor relay
Relay R10
Spare fuse/relay
Fuse box No. 2 in engine compartment.
fuse box location.
fuse box diagram (pre 1999).
legend.
Fuse 8
No information is available
Fuse 9
Spare fuse for the lighting
Fuse 10
Cooling fan, stage 1
Headlight washer
Windscreen washer
Windscreen wiper
Rear windscreen washer
Rear windscreen wiper
30.0 A
Fuse 11
Spare fuse for the lighting
Fuse 12
Spare fuse
25.0 A
Fuse 13
Oxygen sensor
10.0 A
Fuse 14
Headlight washer timer
Windscreen washer
Windscreen wiper
5.0 A
Fuse 15
Not used
Or
Fuel pump
20.0 A
Fuse 16
Spare fuse for the lighting
5.0 A
Fuse 17
Spare fuse for the lighting
5.0 A
Fuse FR1
Spare fuse/relay
Fuse FR2
Spare fuse/relay
Fuse FR3
Spare fuse/relay
Fuse FR4
Spare fuse/relay
Fuse FR5
Spare fuse/relay
Fuse FR6
Spare fuse/relay
Relay R1
Ignition switch discharge relay
Relay R2
Remote control switch for switching on fan 1510A (high speed)
Relay R3
Remote control switch for switching on fan 1510B (high speed)
Relay R4
Cooling fan relay, stage 1
Relay R5
Remote control switch for the starter motor (not used)
Relay R6
Headlight washer timer
Relay R7
Remote control switch for switching off compressor (from fuel injection control unit)
Relay R8
Front fog light relay
Relay R9
Remote control switch for switching off compressor (from Bitron engine cooling control unit)
Fuse box No. 2 in engine compartment (since 1999).
legend.
Fuse 1
Diagnostic connector
Trailer connector
20.0 A
Fuse 2
Not used
Fuse 3
Not used
Fuse 4
Not used
Fuse 5
Engine cooling
30.0 A
Fuse 6
Headlight washer
25.0 A
Fuse 7
Not used
Fuse 8
Right main beam
10.0 A
Fuse 9
Security system
Injection system
10.0 A
Fuse 10
Not used
Fuse 11
Not used
Fuse 12
Not used
Fuse 13
Left dipped beam
10.0 A
Fuse 14
Right dipped beam
10.0 A
Fuse 15
Not used
Or
Oxygen sensor
10.0 A
Fuse 16
Fuel pump
20.0 A
Fuse 17
Left main beam
10.0 A
Fuse 18
Engine cooling
50.0 A
Fuse 19
Heater
Air conditioning
40.0 A
Fuse 20
Fuse box in passenger compartment
ignition switch
70.0 A
Fuse 21
Discharge relay
Steering column switches
70.0 A
Relay R1
Cooling fan relay
Relay R2
Front fog light relay
Relay R3a
Air-conditioning compressor cut-off
Timer relay
Relay R3b
Additional heater relay
Relay R4
Cooling fan engagement relay
Relay R5
Headlight washer
Timer relay
Relay R6
Starter motor feed
Relay R7
Discharge relay
Relay R8
Cooling fan, low-speed relay
Relay R9
Air-conditioning compressor relay
Additional relays.
Relay R1
Engine main relay
Relay R2
Power window relay
Relay R3
Inertia switch relay
Relay R4
Glow plug relay
Relay R5
Diesel power relay
Relay R6
Air-conditioning relay
Relay R7
Fuel pump relay
Fuse box No. 3 in engine compartment (since 2001).
legend.
Fuse MF1
Engine management system
20.0 A
Fuse MF2
Engine management system
Or
Engine management system
Automatic transmission control unit
30.0 A
Fuse MF3
Spare fuse
Or
Engine cooling
30.0 A
Fuse MF4
ABS
Or
Spare fuse
60.0 A
