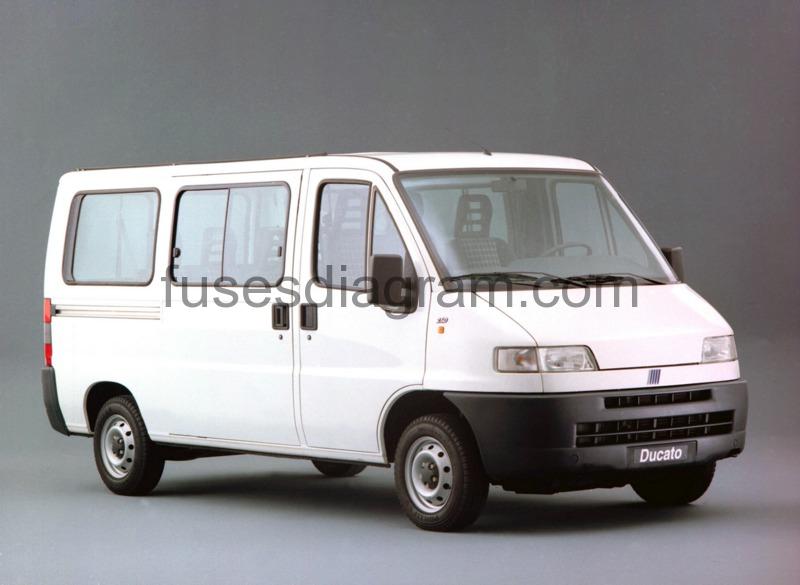

Fuses and Relay Fiat Ducato 1994-2002

For Fiat Ducato (230) 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002 model year.

Cigarette lighter fuse – fuse box in passenger compartment Fuse F11/15A

Fuse box in passenger compartment.

fuse box location.

fuse box diagram.

Assignment of the fuses.

Fuse 1
Instrument panel
Immobiliser
Heater panel illumination
Headlight levelling
Instrument lighting
Clock illumination
Direction indicators
Tachograph illumination
Diesel contamination sensor
Water in diesel warning light
10.0 A
Fuse 2
Headlight washers
Tachograph
ABS warning light
7.5 A
Fuse 3
Windscreen wiper(s)
Windscreen washer(s)
Clock
Heated seat(s)
15.0 A
Fuse 4
Headlight washers
7.5 A
Fuse 5
Lighting control switch
ABS
Left sidelight
Right tail light
10.0 A
Fuse 6
Right sidelight
Left tail light
Instrument lighting
Number plate light(s)
Lights on
7.5 A
Fuse 7
Left dipped beam
10.0 A
Fuse 8
Right dipped beam
10.0 A
Fuse 9
Left main beam
Main beam
10.0 A
Fuse 10
Right main beam
10.0 A
Fuse 11
Cigarette lighter
Interior light(s)
Clock
Radio
15.0 A
Fuse 12
Power windows
Horn
Brake lights (minibus)
20.0 A
Fuse 13
Heater
Additional heater
25.0 A
