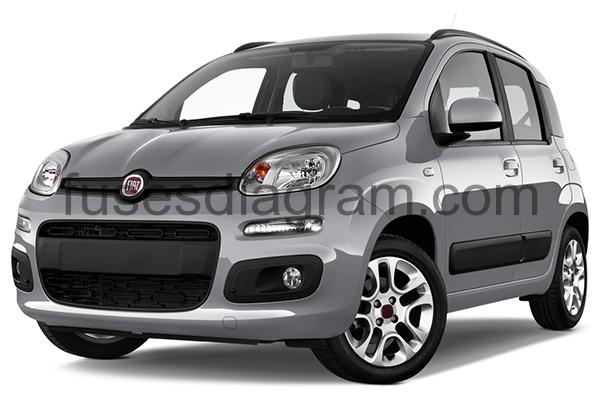

For Fiat Panda (319) 2012, 2013, 2014, 2015, 2016, 2017, 2018 model year.
| Cigarette lighter fuse – fuse box in engine compartment – Fuse F16/15A |
Fuse box in passenger compartment.
fuse box location.
The fuse box located near the left side of the steering column and the fuses can be accessed easily from the lower part of the dashboard.
fuse box diagram.
Assignment of the fuses.
Fuse 12
Not used
Fuse 13
Headlight range control potentiometer
5.0 A
Fuse 31
Power socket
5.0 A
Fuse 32
Not used
Fuse 36
Power supply
Diagnostic socket
Voltage regulator(s)
10.0 A
Fuse 37
Brake light switch
Instrument panel
7.5 A
Fuse 38
Central locking
20.0 A
Fuse 43
Front and rear washer pumps
20.0 A
Fuse 47
Driver’s power window
20.0 A
Fuse 48
Passenger’s power window
20.0 A
Fuse 49
Lighting control
Information display
Parking sensor
Roof lights
Gearbox solenoid
Brake control unit
Heated seats
7.5 A
Fuse 50
Airbag
7.5 A
Fuse 51
Radio
Voltage regulator(s)
Climate control
Brake pedal switch
Clutch pedal switch
Electric sunroof
Reversing light switch
5.0 A
Fuse 53
Instrument panel supply
7.5 A
Fuse box in engine compartment.
fuse box location.
This is located next to the battery: to access fuses proceed as follows: undo the screw A, remove the cover B pulling upwards. The number identifying the electrical component corresponding to each fuse is on the cove. After replacing the fuse, make sure you close cover B on the fusebox.
fuse box diagram.
legend.
Fuse 1
Electric sliding roof
20.0 A
Fuse 2
Brake system
20.0 A
Fuse 3
Ignition switch
20.0 A
Fuse 4
Air-conditioning fan
40.0 A
Fuse 5
ABS pump
40.0 A
Fuse 6
Horn
15.0 A
Fuse 7
Air-conditioning compressor
7.5 A
Fuse 8
Two-speed cooling fan
or not used
40.0 A
Fuse 9
Electric steering
70.0 A
Fuse 10
Two-speed cooling fan
Or
Single-speed cooling fan
(20A also used)
30.0 A
Fuse 11
Body control unit
60.0 A
Fuse 12
Heated fuel filter, diesel
or not used
50.0 A
Fuse 13
Heated windscreen
70.0 A
Fuse 14
Gearbox electric pump
Or
Glow plug control unit
(50A also used)
30.0 A
Fuse 15
Fuel pump
15.0 A
Fuse 16
Power socket
Cigarette lighter
15.0 A
Fuse 17
Headlights, main beam
15.0 A
Fuse 18
Fog lights
15.0 A
Fuse 19
Battery sensor
5.0 A
Fuse 20
Heated seats
15.0 A
Fuse 21
Engine management system
or not used
7.5 A
Fuse 22
Heater blower
5.0 A
Fuse 23
Automatic gearbox
Or
Differential control unit
(7.5A also used)
Or
CNG injector
(7.5A also used)
10.0 A
Fuse 24
LPG supply relay
Or
CNG relay
7.5 A
Fuse 25
Engine management system
Or
LPG control unit
Or
CNG injector
10.0 A
Fuse 26
Engine management system
Or
LPG control unit
15.0 A
Fuse 27
Engine management system
10.0 A
Fuse 28
Mirror defroster
7.5 A
Fuse 29
Brake system
Electric steering
7.5 A
Fuse 30
Engine management system
Or
Automatic gearbox
Or
CNG injector
7.5 A
Fuse 31
Reversing light switch
or not used
5.0 A
Fuse 32
Heated rear windscreen
30.0 A
Relay R1
Cooling fan, high-speed relay
Relay R2
Engine management system
Relay R3
Heated rear windscreen
Relay R5
Heater blower
Relay R6
Single-speed cooling fan relay
Relay R7
Heated fuel filter, diesel
or not used
Relay R8
Fog light relay
Relay R9
Horn relay
Relay R10
Fuel pump relay
Relay R11
Air-conditioning fan relay
Relay R12
Air-conditioning compressor relay
Relay R13
Headlight relay, main beam
Relay R14
Power socket relay
Relay R15
Engine Start and Stop system switch
Or
CNG relay
Relay R16
LPG supply relay
Or
CNG relay
Or
With Start and Stop system
Fuse box in engine compartment, on the battery.
legend.
Fuse SA1
Battery sensor
30.0 A
Fuse SA2
Electric heating system, PTC 1
30.0 A
Fuse SA3
Electric heating system, PTC 2
50.0 A
Additional fuse and relay box in luggage compartment.
legend.
Fuse 1
Brake system
5.0 A
Fuse 2
Not used
Fuse 3
Not used
Fuse 4
Not used
Fuse 5
Not used
Fuse 6
Not used
Fuse 7
Not used
Fuse 8
Not used
Relay R1
Heated front passenger’s seat
Relay R2
Heated driver’s seat
Relay R3
Not used
Relay R4
Brake system
