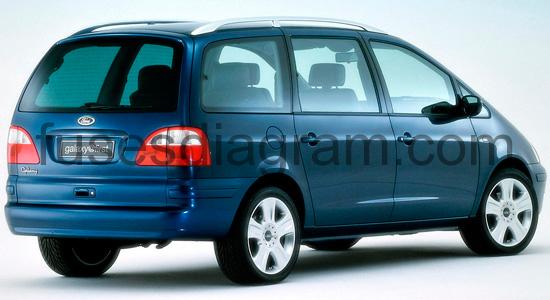

For Ford Galaxy (52) 2000, 2001, 2002, 2003, 2004, 2005, 2006 model year.
| Cigarette lighter fuse – fuse box in passenger compartment – Fuse F7/25A |
MENU
Fuse box in passenger compartment.
Relay box in passenger compartment.
Fuse and relay box in passenger compartment.
Additional fuses in passenger compartment.
Fuse box in engine compartment.
Fuse box in passenger compartment.
fuse box location.
fuse box diagram.
Assignment of the fuses.
| F1 | (10A) Engine management |
| F2 | (10A) Air conditioning (AC), anti-lock brake system (ABS), audio system, cruise control, electric windows, parking aid control module, sunroof |
| F3 | (5A) Air conditioning (AC), alarm system, anti-lock brake system (ABS), cruise control, navigation system, sunroof |
| F4 | (10A) Engine management, immobilizer |
| F5 | (15A) Automatic transmission (AT), reversing lamps |
| F6 | (10A/25A) Horn |
| F7 | (25A) Cigarette lighter |
| F8 | (15A) Charging socket 1 – luggage compartment |
| F9 | (5A) Auxiliary heater |
| F10 | (15A) Charging socket 2- luggage compartment |
| F11 | (20A/25A) Headlamp washers |
| F12 | (25A) Auxiliary heater |
| F13 | (3A) Engine management – petrol |
| F14 | (20A/30A) Air conditioning (AC),engine management – petrol |
| F15 | (10A) Anti-lock brake system (ABS), automatic transmission (AT), cruise control, engine management – Diesel, stop lamps |
| F16 | (15A) Air conditioning (AC) |
| F17 | (10A) Automatic transmission (AT) |
| F18 | (5A) Air conditioning (AC), engine coolant blower motor relay |
| F19 | (5A) ^2002: Air conditioning (AC), audio system, central locking, instrument panel, parking aid control module |
| F20 | (5A/10A) ^2002: Air conditioning (AC), rear screen wiper, windscreen wipers |
| F21 | (25A) Air conditioning (AC) |
| F22 | (30A) Air conditioning (AC) |
| F23 | (10A) Heated door mirrors |
| F24 | (30A) Windscreen wash/wipe system |
| F25 | (30A) Immobilizer, starter motor |
| F26 | (15A) Front fog lamps, rear fog lamps |
| F27 | (25A) ^2002: Accessories, interior lamps |
| F28 | (3A) ^2002: Headlamp adjustment, licence platelamp |
| F29 | (20A) Engine management |
| F30 | (20A) Audio system, navigation system |
| F31 | (3A) Audio system, engine management |
| F32 | (5A) ^2002: Air conditioning (AC), engine management |
| F33 | (10A/30) Heater/air conditioning (AC) |
| F34 | (5A) Engine management – petrol |
| F51 | (20A) Heated door mirrors, heated rear window |
| F52 | (20A) Indicators |
| F53 | (10A) ^2002: Accessories |
| F54 | (10A) Alarm system |
| F55 | (5A) Alarm system, interior lamps |
| F56 | (5A) RH side lamp |
| F57 | (5A) LH side lamp |
| F58 | (10A) Daytime running lamps – if fitted |
| F59 | (5A) Headlamp low beam bulb, left |
| F60 | (5A) Headlamp low beam bulb, right |
| F61 | (10A) Headlamp high beam bulb, left |
| F62 | (10A) Headlamp high beam bulb, right |
Relay box in passenger compartment.
legend.
| 1 | Door mirror retract control module |
| 10a | Horn relay 1 |
| 10b | Horn relay 2 (2000-05.2001) not used (05.2001-11.2001) Auxiliary heater relay (11.2001-2006) |
| 11a | Quarter light window motor relay, left |
| 11b | Quarter light window motor relay, right |
| 12a | Wide open throttle (WOT) relay 1 -2,0/2,3 (2000-05.2001) Door mirror heater relay (05.2001-11.2001) Wide open throttle (WOT) relay – AT (11.2001-2006) |
| 12b | Wide open throttle (WOT) relay 2 – 2,0/2,3 (2000-05.2001) Engine coolant blower motor relay – 2,8/1,9 TDi (05.2001-11.2001) Wide open throttle (WOT) relay (11.2001-2006) |
| 13a | not used (2000-05.2001) Heater blower relay – front (05.2001-11.2001) Heater blower relay – front (11.2001-2006) |
| 13b | Heater blower relay – front (2000-05.2001) not used (05.2001-11.2001) Engine coolant blower motor relay (11.2001-2006) |
| 17a | Heater blower circuit breaker relay 1 |
| 17b | Heater blower circuit breaker relay 2 |
| 18a | Engine coolant blower motor relay (2000-05.2001) AC compressor clutch control module – 2,8/1,9TDi (05.2001-11.2001) Heater blower circuit breaker relay 3 (11.2001-2006) |
| 18b | – |
| 2 | Door mirror retract control module |
| 3 | Fuel lift pump relay – Diesel |
| 4 | Engine coolant blower timer relay – 2,0/2,3 (2000-05.2001) Stop lamps relay (05.2001-11.2001) Engine coolant blower motor relay – 2,0/2,3 (11.2001-2006) |
| 5 | AC compressor clutch control module – 2,8/1,9TDi (2000-05.2001) Headlamp washer pump relay (05.2001-11.2001) AC compressor clutch control module – Diesel (11.2001-2006) |
| 6 | Transmission system relay |
| 7 | Stop lamps relay – 2,8/1,9 TDi (2000-05.2001) Steering wheel function control module relay 1 (05.2001-11.2001) Steering wheel function control module (11.2001-2006) |
| 8 | Headlamp washer pump relay (2000-05.2001) Steering wheel function control module relay 2 (05.2001-11.2001) Steering wheel function control module (11.2001-2006) |
| 9 | Daytime running lamps relay – if fitted |
| 14 | – |
| 15 | – |
| 16 | Quarter light window motor relay 2 |
| 19 | not used (2000-05.2001) Engine coolant blower timer relay – 2,0/2,3 (05.2001-11.2001) Headlamp washer pump relay (11.2001-2006) |
Fuse and relay box in passenger compartment.
legend.
| 20 | Engine coolant blower motor relay (pre 11.2001) Fuel pump(FP) relay – 2,8 (since 11.2001) |
| 21 | Engine control (EC) relay – 2,0/2,3 |
| 22 | Secondary air injection (AIR) pump relay – 2,8 |
| 23 | Heated windscreen relay |
| 24 | Fuel pump (FP) relay – 2,0/2,3 |
| 25 | Stop lamps relay (since 11.2001) |
| 26 | Ignition auxiliary circuits relay (since 11.2001) |
| 27 | Ignition main circuits relay (since 11.2001) |
| F70 | (30A) Secondary air injection (AIR) system – petrol |
| F73 | (50A) Heated windscreen |
| F74 | (50A) Secondary air injection (AIR) system – Diesel |
| F75 | (30A) Electric windows |
Additional fuses in passenger compartment.
legend.
Fuse 71
Fuse box No. 1 in passenger compartment, fuses 7, 33
Additional heater relay
Generator
30.0 A
Fuse 77
Blower motor
30.0 A
Relay R1
Additional heater relay
Fuse box in engine compartment.
legend.
| F100 | (3A) Fuse box/relay plate, fascia 1 (F55) |
| F101 | (30A) Anti-lock brake system (ABS) |
| F102 | (30A) Anti-lock brake system (ABS) |
| F103 | (60A) Auxiliary heater, glow plugs |
| F104 | (40A) Engine coolant blower motor 1 |
| F105 | (40A) Engine coolant blower motor relay |
| F106 | (110A) Fuse box/relay plate, fascia 1 (F13/F25/F27), fuse box/relay plate, fascia 3(F75) |
| F107 | (150A) Alternator |
