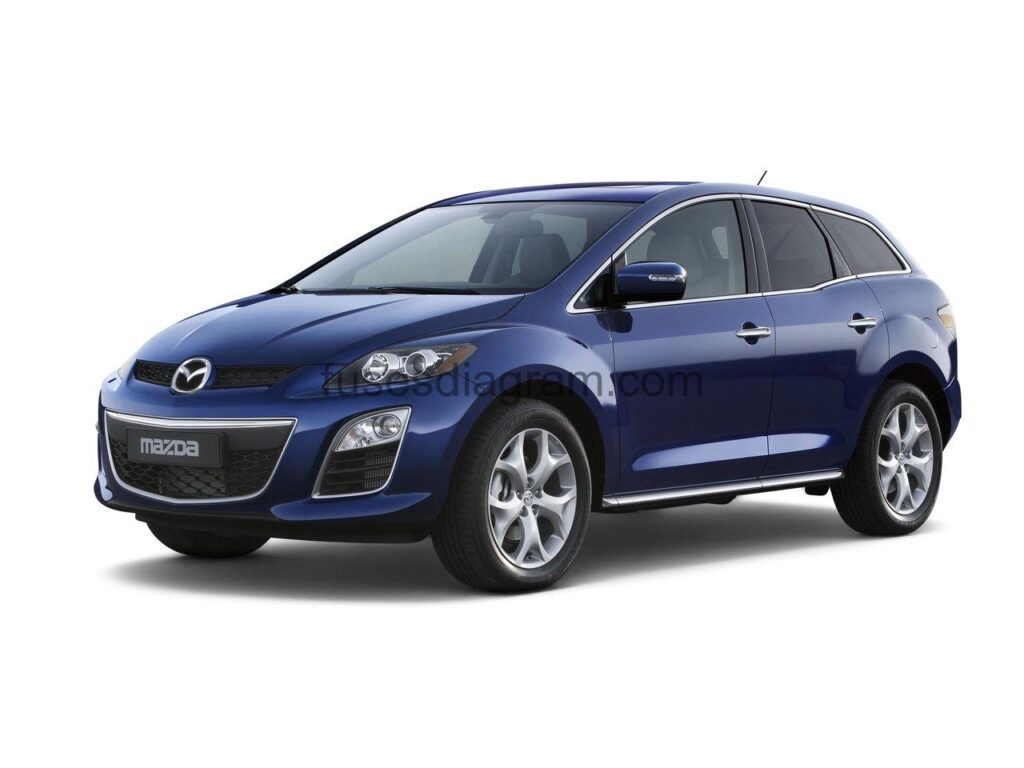

For Mazda CX-7 (ER) 2006, 2007, 2008, 2009, 2010, 2011, 2012 model year.
Mazda CX-7 Sport, Mazda CX-7 Touring, Mazda CX-7 Grand Touring.
Cigarette lighter fuse (front) – Fuse box in passenger compartment . – Fuse F43/15A Cigarette lighter fuse (rear – Fuse box in passenger compartment . – Fuse F44/15A (pre 2009) Cigarette lighter fuse (rear) – Fuse box in passenger compartment . – Fuse F45/15A (since 2009) |
MENU
Fuse box in passenger compartment .
Fuse box in engine compartment.
Fuse box in passenger compartment.
Fuse block is located on the lower dash panel on driver’s side.
fuse box diagram.
Assignment of the fuses.
| 41 | (30A/20A) Windscreen wipers |
| 42 | not used or (30A) Power windows (since 2009) |
| 43 | (15A) Auxiliary power socket/Cigarette lighter |
| 44 | (15A) Auxiliary power socket (rear) or (since 2009) (7.5A) Retractable mirrors |
| 45 | (7,5A) Electric door mirrors or (since 2009) (15A) Rear accessory socket |
| 46 | not used or (since 2009) (10A) Reductant control unit |
| 47 | – |
| 48 | (7,5A) Heated door mirrors |
| 49 | (7,5A) Engine management system Engine control system |
| 50 | (15A) Electric windows |
| 51 | (7,5A) Supplementary restraint system (SRS) |
| 52 | (15A) Engine management system Fuel pump relay |
| 53 | (10A) Ignition main circuits or (since 2009) (15A) Starter relay 2 |
| 54 | (5A) Multifunction control module or (since 2009) (10A) Illumination lights |
| 55 | – |
| 56 | (15A) Battery power distribution or (since 2009) (15A) Data link connector (DLC) |
| 57 | not used or (since 2009) (10A) Rear fog lights |
| 58 | (10A) Switch illumination or (since 2009) (5A) Alarm siren |
| 59 | (20A) Heated seats |
| 60 | (10A) Air conditioning system Climate control unit |
| 61 | (10A) Rear screen wash/wipe system Sunroof motor |
| 62 | (10A) Rear fog lamp or not used |
Fuse box in engine compartment.
fuse box location.
1. Turn off the ignition switch and all other switches. 2. Remove the fuse block cover. 3. Pull the fuse straight out with the fuse puller provided on the inside of the engine compartment fuse block cover.
Fuse box diagram.
legend.
| R1 | Fuel pump relay |
| R2 | Heated rear window relay |
| R3 | Starter relay 2 |
| R4 | Lighting circuits control relay |
| R5 | Driver by wire relay Front fog light relay |
| R6 | Fuel pump speed control relay |
| R7 | Cooling fan 1 relayFuel injection relay |
| R8 | Headlamp relay |
| R9 | Fuel injection relay |
| R10 | Heater blower motor relay |
| R11 | Reversing lamps relay |
| R12 | Cooling fan 2 relay |
| R13 | Starter relay 1 |
| R14 | Main relay |
| F1 | (40A) Engine coolant blower motor (1) |
| F2 | (40A) Ignition main circuits |
| F3 | (40A) Engine coolant blower motor (2) |
| F4 | (60A) For protection of various circuits or (30A) (since 2009) Fuel pump relay |
| F5 | (40A) Heater blower motor |
| F6 | (40A) Ignition main circuits or Not used |
| F7 | (40A) ABS/ESP system |
| F8 | (20A) ABS/ESP system |
| F9 | (30A) Engine management system |
| F10 | (40A) Electric seats or (30A) (since 2009) Position memory control unit |
| F11 | (20A) Central locking system |
| F12 | (30A) Engine management system Fuel injection relay |
| F13 | (30A) Electric windows |
| F14 | (20A) Sunroof or (30A) (since 2009) Passenger’s seat adjustment switch |
| F15 | (30A) Fuel pump(FP) or (40A) (since 2009) Ignition switch |
| F16 | (30A) Audio system |
| F17 | (30A) Heated rear window |
| F18 | (20A) Front fog lamps or (20A) (since 2009) Sunroof switch |
| F19 | (7,5A) ABS/ESP system or not used |
| F20 | (20A) Electric windows or (15A) (since 2009) Front fog light relay |
| F21 | (10A) Stop lamps horn |
| F22 | (15A) Headlamp high beam bulb, right |
| F23 | (15A) Number plate lights |
| F24 | (20A) Horn Trailer connector |
| F25 | (15A) Headlamp wash/wipe system or (15A) (since 2009) Headlamp high beam, left |
| F26 | (10A) Air conditioning (AC) |
| F27 | (20A) Engine management system Automatic transmission control relay |
| F28 | (15A) Headlamp low beam bulb, left |
| F29 | (15A) Headlamp low beam bulb, right |
| F30 | (25A) Powertrain control unit (PCM) Automatic transmission control unit 4WD control unit |
| F31 | (10A) Hazard warning lights Body control unit (BCM) |
| F32 | (15A) Engine management system EGR valve |
| F33 | not used or (10A) (since 2009) Fuel injectors |
| F34 | (10A) Engine management system Powertrain control unit (PCM) |
| F35 | (7,5A) Engine management system Oxygen sensor in front of the catalytic converter |
| F36 | not used or (10A) Powertrain control unit (PCM) |
relay box location.
relay block diagram.
| 1 | – |
| 2 | Rear fog lamp relay |
| 3 | Stop lamps relay |
| 4 | Front fog lamp relay |
| 5 | Air conditioning (AC) relay |
| 6 | Horn relay |
