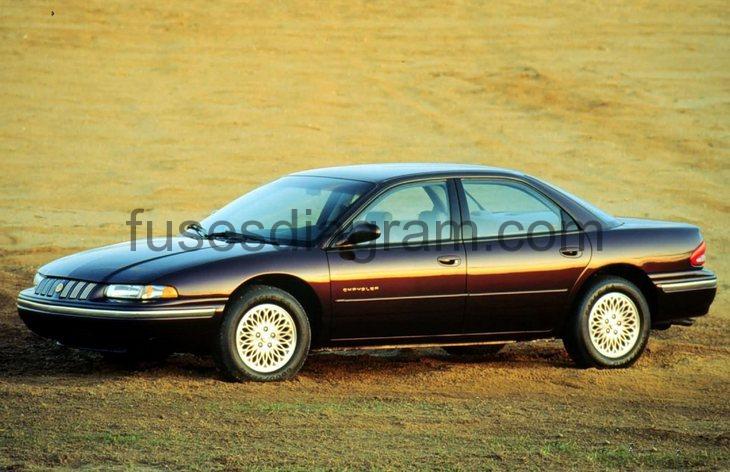

For Chrysler Vision 1993, 1994, 1995, 1996, 1997 model year.
Chrysler Vision (Europe), Eagle Vision (USA).
Cigarette lighter fuse – Fuse box in passenger compartment – Fuse №8/20A |
Fuse box in passenger compartment.
The fuse block is behind the end cover at the left side of the instrument panel. Pull the cover straight away from the instrument panel for access to fuses.
fuse box diagram.
Assignment of the fuses.
| Fuses | Amps | Circuits Protected |
|---|---|---|
| 1 | 5A | Electric mirror(s) |
| 2 | 10A | Radio Telephone |
| 3 | 10A | Direction indicators |
| 4 | 20A | Brake light(s) |
| 5 | 5A | Headlight(s) |
| 6 | 10A | Heater Air conditioning Automatic transmission control unit |
| 7 | 10A | Airbag |
| 8 | 20A | Cigarette lighter Horn Antenna amplifier |
| 9 | 15A | Parking lights Instrument lighting |
| 10 | 10A | Wiper(s) |
| 11 | 15A | Left main beam |
| 12 | 15A | Right main beam |
| 13 | 10A | Interior light(s) |
| 14 | 5A | Cruise control |
| 15 | 15A | Left dipped beam |
| 16 | 15A | Right dipped beam |
| 17 | 5A | Automatic transmission shift lock unit Automatic transmission position indicator |
| 18 | 10A | Fuel pump |
| 19 | 10A | Airbag |
| 20 | 10A | Cooling fan |
| 21 | 25A | Blower motor |
| 22 | 20A | Power windows |
| 23 | 20A | Central locking Electric seats |
| R1 | Horn relay | |
| R2 | Door lock relay | |
| R3 | Door unlock relay | |
| R4 | Speed control relay | |
| R5 | Headlight relay |
Fuse box in engine compartment.
legend.
| Fuses | Amps | Circuits Protected |
|---|---|---|
| 1 | 20A | Transmission control unit |
| 2 | 20A | Starter motor Fuel pump |
| 3 | 30A | Intermittent wiper relay |
| 4 | 40A | Cooling fan relay |
| 5 | 30A | Fuse box in passenger compartment |
| 6 | 40A | ABS pump relay |
| 7 | 40A | Ignition switch |
| 8 | 30A | ABS control unit |
| 9 | 20A | Fuse box in passenger compartment |
| 10 | 20A | Fuse box in passenger compartment |
| 11 | 30A | Taxi package |
| 12 | 20A | Flasher unit |
| 13 | 5A | Daylight running system control unit |
| 14 | Not used | |
| R1 | Cooling fan relay No. 1 | |
| R2 | Cooling fan relay No. 2 | |
| R3 | Air-conditioning compressor clutch relay | |
| R4 | Engine stop relay | |
| R5 | Fuel pump relay | |
| R6 | Intermittent wiper relay | |
| R7 | Automatic transmission inhibitor | |
| R8 | Starter relay | |
| R9 | Not used | |
| R10 | Wiper high/low relay | |
| R11 | ABS relay | |
| R12 | ABS pump relay |
