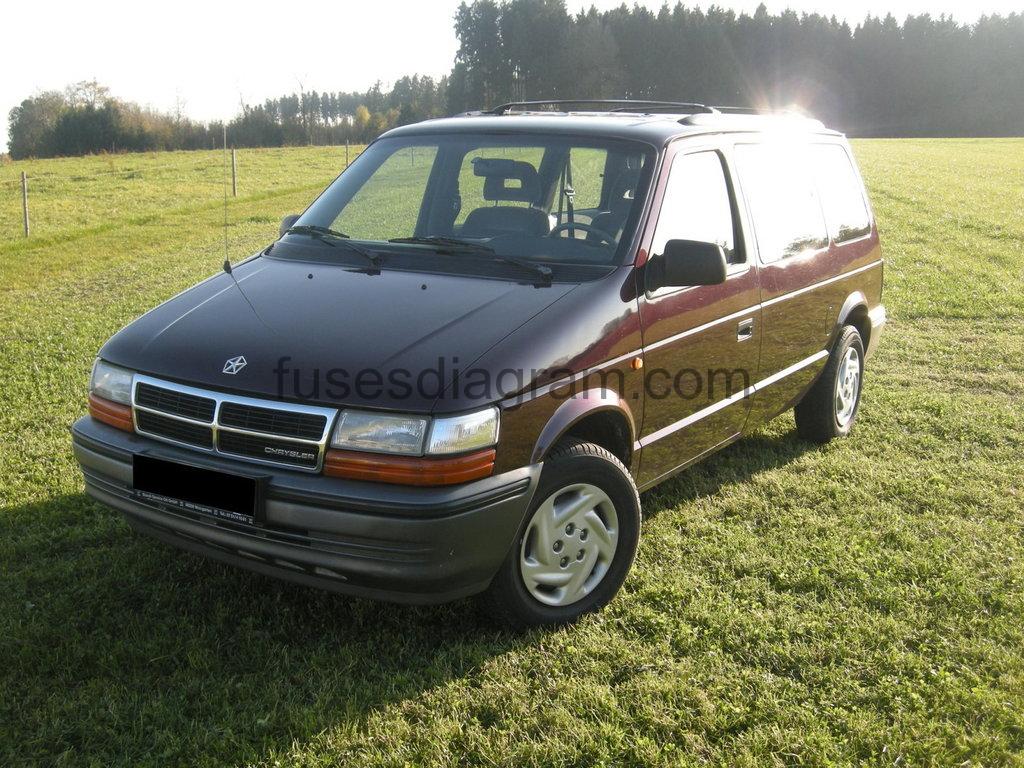

For Chrysler Voyager 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 model year.
Chrysler Grand Voyager.
Cigarette lighter fuse – Fuse box in passenger compartment type 1 (early models) – Fuse №7/25A Cigarette lighter fuse – Fuse box in passenger compartment type 2 (late models) – Fuse №3/20A |
MENU
Fuse box in passenger compartment type 1 (early models).
Fuse box in passenger compartment type 2 (late models)
Additional relay in engine compartment (early models)
Relay in passenger compartment (late models)
Relay box in passenger compartment near fuse box (late models)
Fuse box in engine compartment (late models)
Fuse box in passenger compartment type 1.
Fuse panel is located under the parking brake handle on the left side of the steering column.
fuse box diagram.
Assignment of the fuses.
| Fuses | Amps | Circuits Protected |
|---|---|---|
| 1 | 20A | Hazard warning lights |
| 2 | 20A | Air-conditioning compressor clutch relay Air-conditioning blower Heated rear windscreen switch Heated rear seats Rear air conditioning Overhead console Reversing light(s) |
| 3 | 30A | Power windows and sunroof Fresh/recirculated air actuator |
| 4a | 30A | Air-conditioning blower |
| 4b | 30A | Heater blower |
| 5 | 20A | Tail lights Sidelights Number plate light(s) Parking lights Clock Radio Multifunction display Dimmer |
| 6 | 20A | Brake lights Warning chime(s) |
| 7 | 25A | Horns Cigarette lighter Audio system |
| 8 | 30A | Electric seats Electric mirrors Door lock actuators |
| 9 | 10A | Radio Clock |
| 10 | 20A | Direction indicators |
| 11 | 20A | Wash/wipe system |
| 12 | 4A | Air-conditioning controls Illumination |
| 13 | 5A | Instrument panel Warning chime(s) Speed control unit |
| 14 | 20A | Rear wiper and washer Tailgate/boot lock Tailgate/boot release |
| 15 | 10A | Headlights Interior lights Radio memory |
| 16 | 25A | Fresh/recirculated air actuator |
| R1 | Flasher relay | |
| R2 | Inlet manifold heater relay | |
| R3 | Horn relay |
Fuse box in passenger compartment type 2.
legend.
| Fuses | Amps | Circuits protected |
|---|---|---|
| 1 | 15A | Fog lights |
| 2 | 15A | Parking lights |
| 3 | 20A | Cigarette lighter Data link connector Horn Audio system |
| 4 | 20A | Tailgate/boot release |
| 5 | 20A | Front wipers |
| 6 | 10A | Radio |
| 7 | 20A | Fresh/recirculated air actuator |
| 8 | 10A | Heated mirrors |
| 9 | 5A | Illumination light |
| 10 | 20A | Door lock actuators |
| 11 | 15A | Brake lights |
| 12 | Not used | |
| 13 | 20A | Rear wiper Airbag |
| 14 | 2A | Speed control unit |
| 15 | 10A | Warning lights Instrument panel |
| 16 | 10A | Engine systems |
| 17 | 10A | Left dipped beam |
| 18 | 10A | Right dipped beam Daylight running system |
| 19 | 10A | Direction indicators |
| 20 | 10A | Reversing lights Airbag |
| 21 | Not used | |
| 22 | Not used | |
| 23 | Not used | |
| 24 | Not used | |
| 25 | Not used | |
| 26 | Air-conditioning blower motor Circuit breaker | |
| 27 | Not used | |
| 28 | Not used |
Additional relay in engine compartment (early models).
Relay R1
Air-conditioning condenser fan relay
Relay R2
Air-conditioning compressor clutch relay
Relay R3
Cooling fan relay
Relay R4
Starter relay
Relay R5
Air-conditioning cut-off relay
Relay in passenger compartment (late models).
Relay R1
Power window relay
Relay R2
Not used
Relay R3
Electric seat relay
Relay R4
Audio system relay
Relay R5
Not used
Relay R6
Door lock relay
Relay R7
Door unlock relay
Relay R8
Not used
Relay R9
Fog light relay
Relay box in passenger compartment near fuse box (late models).
The Relay Bank Panel is located under dash near the Fuse Block.
relay box diagram.
Fuse 1
Headlights
(No value is available)
Relay R1
Dipped beam relay
Relay R2
Not used
Relay R3
Not used
Relay R4
Parking light relay
Relay R5
Audio system relay
Relay R6
Demister relay
Relay R7
Horn relay
Relay R8
Rear air-conditioning relay
Relay R9
Luggage compartment opening relay
Relay R10
Flasher relay
Hazard warning light relay
Fuse box in engine compartment (late models).
legend.
| Fuses | Amps | Circuits Protected |
|---|---|---|
| 1 | 15A | Air-conditioning compressor clutch |
| 2 | 15A | ABS Or ESP control unit |
| 3 | 15A | Fuel pump |
| 4 | 15A | Interior lights |
| 5 | 15A | Transmission control unit |
| 6 | 15A | Cooling fan |
| 7 | 15A | Hazard warning lights |
| 8 | 15A | Engine systems |
| 9 | 40A | Lights |
| 10 | 40A | Demister |
| 11 | 40A | Cooling |
| 12 | 40A | Lights Parking lights |
| 13 | 40A | Ignition system |
| 14 | 40A | + After ignition feed Accessories |
| 15 | 40A | ABS pump |
| R1 | Cut-off relay | |
| R2 | Cooling fan relay (sub) | |
| R3 | Fuel pump relay Additional relay, fuel pump | |
| R4 | Relay, main cooling fan | |
| R5 | Cooling fan relay | |
| R6 | Air-conditioning compressor clutch relay | |
| R7 | Reversing light relay | |
| R8 | Transmission control relay | |
| R9 | Starter relay |
