For Daihatsu Gran Move (G3) 1997, 1998, 1999, 2000, 2001, 2002, 2003 model year.
| Cigarette lighter fuse – fuse box in passenger compartment – Fuse F11/15A |

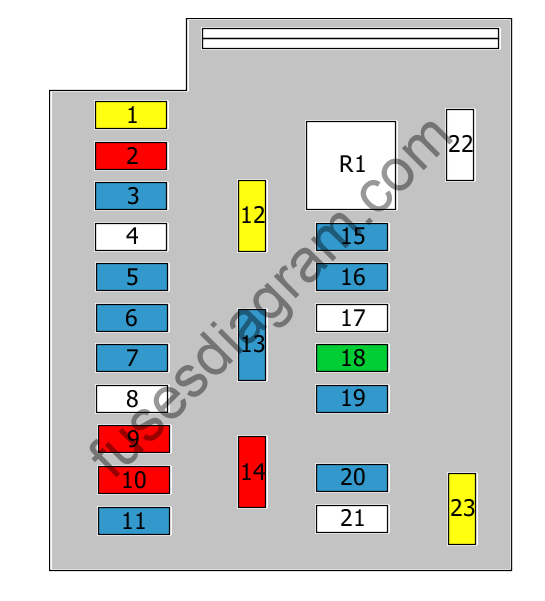

Fuse box in passenger compartment.
fuse box diagram.
Assignment of the fuses.
Heated rear windscreen
20.0 A
Fuse 2
Engine functions
10.0 A
Fuse 3
Audio system
15.0 A
Fuse 4
Not used
Fuse 5
Direction indicators
15.0 A
Fuse 6
Horn
Hazard warning lights
15.0 A
Fuse 7
Wiper system
15.0 A
Fuse 8
Not used
Fuse 9
Instrument panel
10.0 A
Fuse 10
Tail lights
10.0 A
Fuse 11
Cigarette lighter
15.0 A
Fuse 12
Spare fuse/relay
20.0 A
Fuse 13
Spare fuse/relay
15.0 A
Fuse 14
Spare fuse/relay
10.0 A
Fuse 15
Left headlight
15.0 A
Fuse 16
Right headlight
15.0 A
Fuse 17
Not used
Fuse 18
Heating
30.0 A
Fuse 19
Brake lights
15.0 A
Fuse 20
Interior light(s)
15.0 A
Fuse 21
Not used
Fuse 22
Not used
Fuse 23
Supply No. 2
20.0 A
Relay R1
Flasher unit

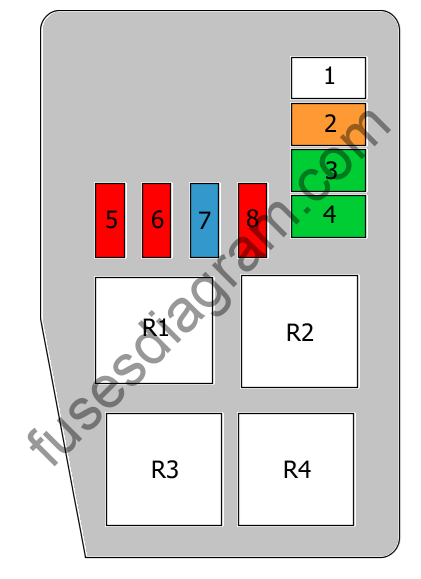

Fuse box in engine compartment.
legend.
Fuse 1
ABS
Or
ESP control unit
50.0 A
Fuse 2
Headlights
40.0 A
Fuse 3
Cooling fan
30.0 A
Fuse 4
Air-conditioning fan
30.0 A
Fuse 5
Air conditioning
10.0 A
Fuse 6
MVO
10.0 A
Fuse 7
Fuel injection system
15.0 A
Fuse 8
Daylight running system control unit
10.0 A
Relay R1
Main relay
Relay R2
Fuel injection system
Relay R3
Cooling fan
Relay R4
Air-conditioning fan
