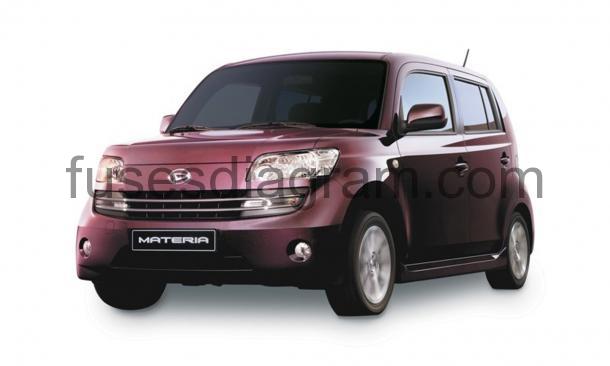

For Daihatsu Materia (M4) 2007, 2008, 2009, 2010, 2011, 2012 model year.
Cigarette lighter fuse – fuse box in passenger compartment – Fuse F7/15A |
Fuse box in passenger compartment.
fuse box location.
Assignment of the fuses.
1 | Starter motor |
2 | Indicator relay |
3 | Ignition main circuits relay |
4 | Engine control (EC) relay |
5 | Horn relay |
6 | Fuel pump (FP) relay |
F1 | (10A) Engine management system |
F2 | (7,5A) |
F3 | (20A) Heated rear window |
F4 | (7,5A) |
F5 | (7,5A) |
F6 | (7,5A) |
F7 | (15A) Cigarette lighter |
F8 | (7,5A) Starter motor |
F9 | (15A) |
F10 | (10A) Indicators and hazard warning lamps |
F11 | (20A) Wipers and washers |
F12 | (30A) Electric windows |
Fuse box in engine compartment.
legend.
1 | Engine coolant blower motor relay |
2 | Heated windscreen relay |
3 | Headlamp relay |
4 | AC compressor clutch relay |
5 | Fog lamps relay |
F1 | (50A) Ignition main circuits |
F2 | (50A) Electric power steering |
F3 | (50A) Ignition switch circuits |
F4 | (40A/50A) ABS/ESP system |
F5 | (30A) Ignition switch circuits |
F6 | (30A) Engine coolant blower motor |
F7 | (30A) Heated rear window |
F8 | (40A) Heater blower motor |
F9 | (7,5A) ABS/ESP system |
F10 | (10A) Headlamp high beam, left |
F11 | (10A) Headlamp high beam, right |
F12 | (10A) Headlamp low beam bulb, left |
F13 | (10A) Headlamp low beam bulb, right |
F14 | (10A) Front fog lamps |
F15 | (10A) Front fog lamps |
F16 | (15A) Engine management system |
F17 | (10A) Horn |
F18 | (10A) AC/heater system |
F19 | (15A) Stop lamps |
F20 | (10A) Engine management system |
F21 | (20A) ABS/ESP system |
F22 | (10A) |
F23 | (7,5A) Interior lamps |
F24 | (15A) |
F25 | (30A) Heated windscreen |
