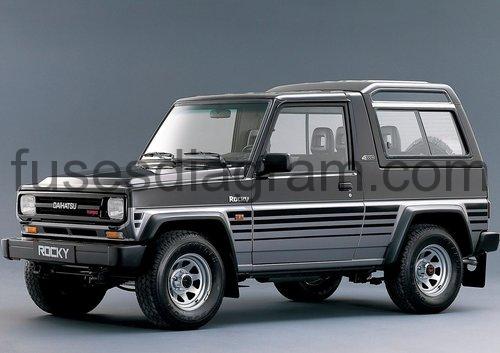

For Daihatsu Rocky /Fourtrak (F78) 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 model year.
Cigarette lighter fuse – fuse box in passenger compartment – Fuse F6/15A |
Fuse box No. 1 in passenger compartment.
fuse box location.
fuse box diagram.
legend.
Fuse 10
Power shift circuit (VSV)
Reversing lights
Voltmeter
Tachometer
Glow plug indicator light
Temperature gauge
Fuel gauge
Warning light, low fuel
Oil pressure
Charge warning light
Brake fluid warning light
Handbrake warning light
4WD
Indicator light
7.5 A
Fuse 11
Brake lights
10.0 A
Fuse 12a
Tail lights
Sidelights
Number plate light(s)
Rear fog light(s)
10.0 A
Fuse 12b
Tail lights
Sidelights
Number plate light(s)
10.0 A
Fuse box No. 1 in passenger compartment, except Europe.
fuse box diagram.
Assignment of the fuses.
Fuse 1
Right headlight
15.0 A
Fuse 2
Left headlight
Main beam
15.0 A
Fuse 3
Front heater
Rear heater
30.0 A
Fuse 4
Preheating timer
Fuel cut-off solenoid
Winch
Dim-dip relay
Voltage regulator(s)
Suspension
10.0 A
Fuse 5
Hazard warning lights
Horn
15.0 A
Fuse 6
Audio system
Cigarette lighter
Clock
Electric mirror controls
15.0 A
Fuse 7
Wiper system
15.0 A
Fuse 8
Demister
Demister switch
15.0 A
Fuse 9
Combination switch
Direction indicators
Flasher unit
7.5 A
Fuse box No. 2 in passenger compartment.
located below the instrument panel, driver's side.
legend.
Fuse 1
Interior lights
Luggage compartment light(s)
Tailgate lock motor
15.0 A
Fuse 2
Not used
Fuse 3
Brake lights
10.0 A
Fuse 4
Not used
Fuse 5
Power
30.0 A
