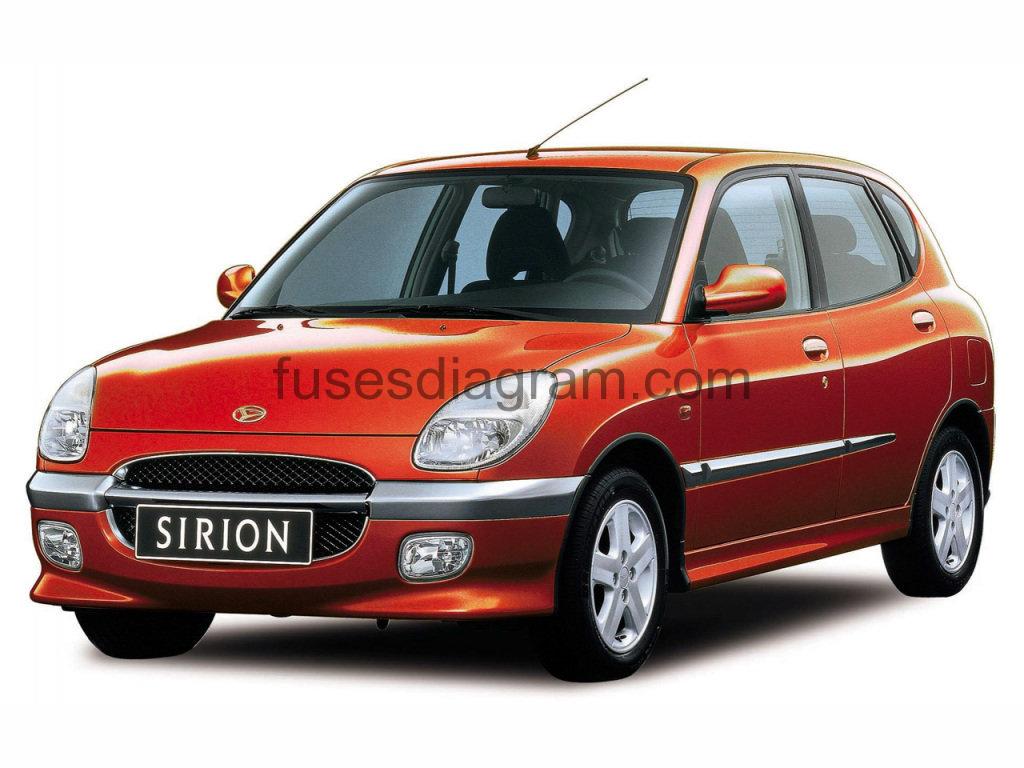

For Daihatsu Sirion (M1) 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005 model year.
| Cigarette lighter fuse – fuse box in passenger compartment – Fuse F12/15A |
Fuse box in passenger compartment.
fuse box location.
fuse box diagram.
Assignment of the fuses.
Fuse 1
Fog light(s)
15.0 A
Fuse 2
Tail lights
10.0 A
Fuse 3
Heated rear windscreen
15.0 A
Fuse 4
Power
30.0 A
Fuse 5
Instrument panel
10.0 A
Fuse 6
Engine functions
10.0 A
Fuse 7
Spare fuse/relay
10.0 A
Fuse 8
Spare fuse/relay
15.0 A
Fuse 9
Not used
Fuse 10
Wiper system
15.0 A
Fuse 11
Blower
20.0 A
Fuse 12
Accessories
Cigarette lighter
15.0 A
Fuse 13
Left headlight
10.0 A
Fuse 14
Right headlight
10.0 A
Fuse 15
Brake light(s)
10.0 A
Fuse 16
Engine control unit
10.0 A
Fuse 17
Airbag
10.0 A
Fuse 18
Central locking
15.0 A
Fuse 19
Not used
Fuse box in engine compartment.
legend.
Fuse 1
Reversing light(s)
10.0 A
Fuse 2
Fuel injection system
15.0 A
Fuse 3
Horn
Hazard warning lights
15.0 A
Fuse 4
Engine control unit or 20A for air conditioning
10.0 A
Fuse 5
Ignition switch
60.0 A
Fuse 6
ABS
Or
ESP control unit
50.0 A
Fuse 7
Tail lights
40.0 A
Fuse 8
Headlights
30.0 A
Fuse 9
Cooling fan
30.0 A
Relay R1
Fuel pump
Relay R2
Starter system
Relay R3
Injection system
Relay R4
Air conditioning
Relay R5
Engine functions
Relay R6
Cooling fan
