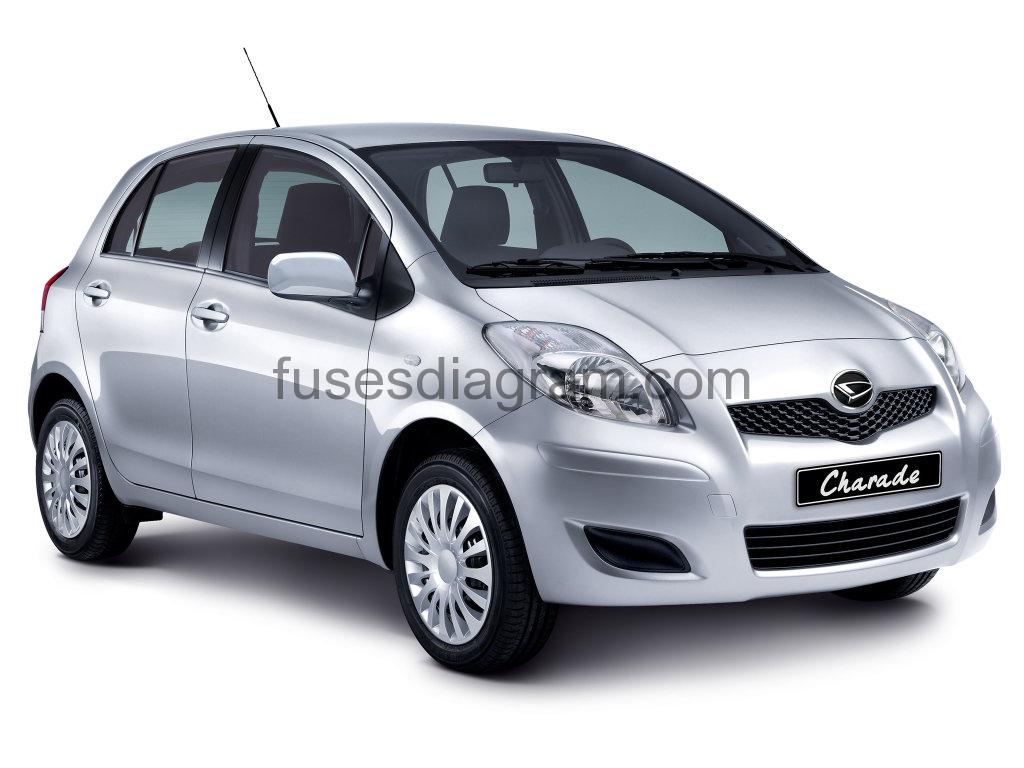

For Daihatsu Charade (NSP90) 2011, 2012, 2013 model year.
| Cigarette lighter fuse – fuse box in passenger compartment – Fuse F8/15A |
Fuse box in passenger compartment.
fuse box diagram.
Assignment of the fuses.
Fuse 1a
Engine control unit
Central locking
Starter system
Front fog light(s)
Daylight running system
Headlight levelling
Illumination
Lights on
Manual transmission
Rear fog light(s)
Tail light(s)
10.0 A
Fuse 1b
Central locking
Starter system
Front fog light(s)
Illumination
Lights on
Manual transmission
Rear fog light(s)
Tail light(s)
7.5 A
Fuse 2
Central locking
Starter system
Front fog light(s)
Illumination
Lights on
Manual transmission
Rear fog light(s)
Tail light(s)
7.5 A
Fuse 3
Air conditioning
Heated rear windscreen
Heated mirror(s)
Electric heating system
7.5 A
Fuse 4
Power window control unit
20.0 A
Fuse 5
Power window control unit
20.0 A
Fuse 6
Power window control unit
20.0 A
Fuse 7
Not used
Fuse 8
Cigarette lighter
Power outlet
15.0 A
Fuse 10
Not used
Fuse 11
Engine control unit
Heated mirror(s)
Heated rear windscreen
10.0 A
Fuse 12
Not used
Fuse 13
Not used
Fuse 14
Rear fog light
7.5 A
Fuse 15
Engine control unit
Engine immobiliser system
Central locking
Starter system
Manual transmission
SRS control unit
Brake light switch
Fuel pump relay
7.5 A
Fuse 16
ABS
Charging control
Combination meter
Engine control unit
EPS
Headlight(s)
Daylight running system
Lights on
Manual transmission
Seat belt warning light
Supplemental restraint system (SRS)
Vehicle stability control (VSC)
Key warning buzzer
Direction indicator
7.5 A
Fuse 17
Heated seat(s)
15.0 A
Fuse 18
Heated seat(s)
15.0 A
Fuse 19a
Front wiper
Washer pump
20.0 A
Fuse 19b
Front wiper
Washer pump
25.0 A
Fuse 20
Rear wash/wipe system
15.0 A
Fuse 21
Front and rear wipers and washers
15.0 A
Fuse 22
ABS
Audio system
Meter
Cooling fan
Door open
Double locking
Central locking
Starter system
EPS
Windows
Seat belt warning light
Security system
Vehicle stability control (VSC)
Direction indicator
Clutch switch
10.0 A
Fuse 23
ABS
Air conditioning
Parking lights
Charging system
Heated mirror(s)
Manual transmission
Heated rear windscreen relay
Seat belt warning light
Shift lock
SRS control unit
Hazard warning lights
Parking assistance control unit
10.0 A
Fuse 24
DLC
7.5 A
Fuse 25
ABS
Engine control unit
Central locking
Starter system
Manual transmission
Shift lock
Direction indicator
Vehicle stability control (VSC)
Brake light switch
10.0 A
Fuse 26
Not used
Fuse 27
Door lock
Double locking
Central locking
Starter system
Interior light(s)
Security system
25.0 A
Fuse 28
Front fog light(s)
Rear fog lights
15.0 A
Fuse 29
Not used
Fuse 30a
Engine control unit
Central locking
Starter system
Front fog light(s)
Daylight running system
Headlight levelling
Illumination
Lights on
Manual transmission
Rear fog light(s)
Tail light(s)
10.0 A
Fuse 30b
Not used
Fuse 31
No information is available
25.0 A
Fuse 32a
Shift lock
7.5 A
Fuse 32b
Not used
7.5 A
Fuse 33a
Not used
7.5 A
Fuse 33b
Shift lock
7.5 A
Fuse box in engine compartment.
fuse box diagram.
legend.
Fuse 1a
Central locking
Starter system
Horn
Security system
10.0 A
Fuse 1b
Engine control unit (manual transmission)
Engine main relay
20.0 A
Fuse 2a
Central locking
Starter system
Horn
Security system
10.0 A
Fuse 2b
Engine control unit (manual transmission)
Engine main relay
Or
Engine control unit
Engine main relay
(30A also used)
20.0 A
Fuse 3
Door lock
Double locking
Engine control unit
Central locking
Starter system
Ignition
Interior light(s)
Lights on
Power window controls
Seat belt warning light
Security system
Ignition 2 relay
15.0 A
Fuse 4
Not used
Fuse 5
Not used
Fuse 6
Not used
Fuse 7
Not used
Fuse 8
Not used
Fuse 9
ABS
Vehicle stability control (VSC)
Traction control unit
30.0 A
Fuse 10
Electric heating system
30.0 A
Fuse 11
Air conditioning
30.0 A
Fuse 12
Cooling fan
30.0 A
Fuse 13
Air conditioning
40.0 A
Fuse 14
ABS
Vehicle stability control (VSC)
Traction control unit
50.0 A
Fuse 15
EPS
50.0 A
Fuse 16
Air conditioning
40.0 A
Fuse 17
Headlights
Headlight levelling
10.0 A
Fuse 18
Headlights
10.0 A
Fuse 19
Manual transmission
50.0 A
Fuse 20
Reversing lights
Hazard warning lights
Security system
10.0 A
Fuse 21
Engine control unit
10.0 A
Fuse 22
Charging system
7.5 A
Fuse 23
ABS
Air conditioning
Combination meter
Door lock
Double locking
Engine control unit
Electronic engine immobiliser
Central locking
Starter system
Headlights
Interior lights
Key warning buzzer
Lights on
Manual transmission
Power windows
Seat belt warning light
Security system
Vehicle stability control (VSC)
7.5 A
Fuse 24
Audio system
Engine control unit
Central locking
Starter system
Interior light(s)
Security system
15.0 A
Fuse 25
Central locking
Starter system
20.0 A
Fuse 26
Central locking
Starter system
30.0 A
Fuse 27
Headlights
Headlight levelling
30.0 A
Fuse 28
Engine control unit
Mass airflow meter with air temperature sensor
10.0 A
Fuse 29
Not used
10.0 A
Relay R1
Starter relay
Relay R2
Cooling fan 2 relay
Relay R3
Heater relay
