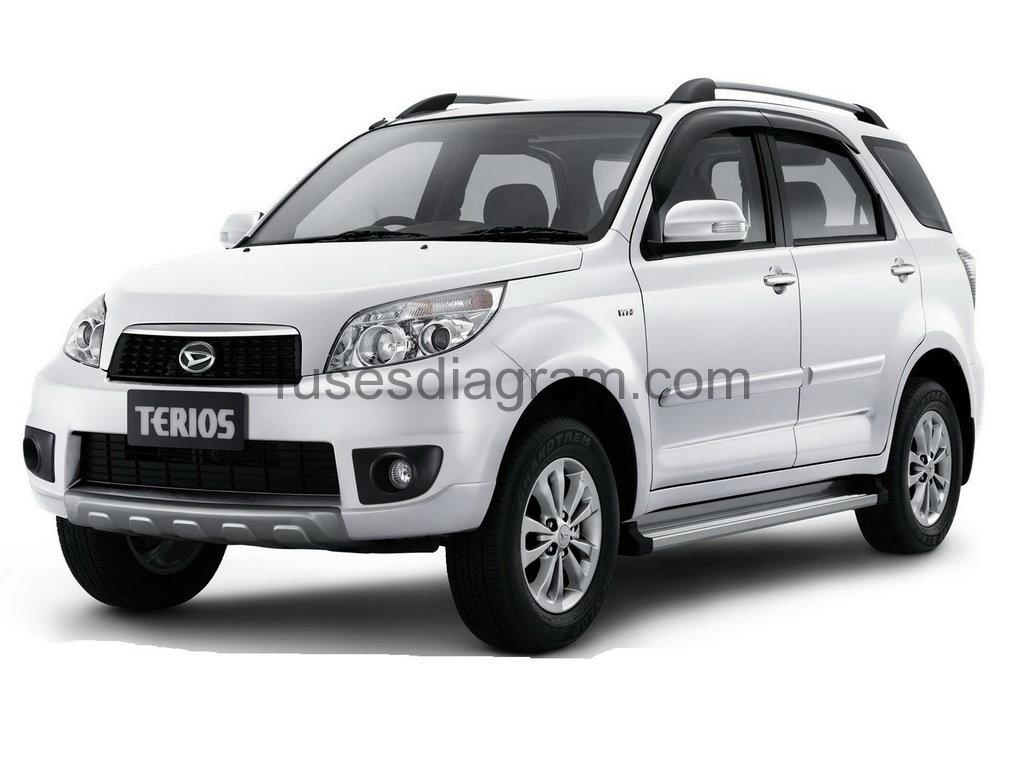

For Daihatsu Terios (J200) 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 model year.
| Cigarette lighter fuse – fuse box in passenger compartment – Fuse F13/15A |
Fuse box in passenger compartment.
fuse box location.
fuse box diagram.
Assignment of the fuses.
| 1 | Starter motor relay |
|---|---|
| 2 | Indicator relay |
| 3 | Ignition main circuits relay |
| 4 | Engine control (EC) relay |
| 5 | Horn relay |
| 6 | Fuel pump (FP) relay |
| F1 | (7,5A) Starter motor |
| F2 | (15A) Central locking system |
| F3 | (10A) Indicators and hazard warning lamps |
| F4 | (25A) |
| F5 | (30A) Electric windows |
| F6 | (15A) Auxiliary power socket |
| F7 | (10A) |
| F8 | (7,5A) |
| F9 | (15A) Heated rear window |
| F10 | (7,5A) |
| F11 | (7,5A) |
| F12 | (7,5A) |
| F13 | (15A) Cigarette lighter /Auxiliary power socket |
Fuse box in engine compartment.
fuse box location.
fuse box diagram.
legend.
| 1 | – |
| 2 | Engine coolant blower motor relay |
| 3 | Headlamp relay |
| 4 | Air conditioning (AC) relay |
| 5 | Fog lamps relay |
| F1 | (30A)ABS/ESP system |
| F2 | (15A) |
| F3 | (7,5A) Interior lamps |
| F4 | (10A) Side/tail lamps |
| F5 | (30A)ABS/ESP system |
| F6 | (10A) Transmission control |
| F7 | (15A) Stop lamps |
| F8 | (10A) Air conditioning (AC) |
| F9 | (10A) Horn |
| F10 | (15A) |
| F11 | (7,5A) Fog lamps |
| F12 | (7,5A) Fog lamps |
| F13 | (10A) RH headlamp |
| F14 | (10A) LH headlamp |
| F15 | (10A) RH headlamp |
| F16 | (10A) LH headlamp |
| F17 | (10A) Heated seats |
| F18 | (50A) |
| F19 | – |
| F20 | (50A) Ignition main circuits |
| F21 | (40A/50A) ABS/ESP system |
| F22 | (30A) Ignition main circuits |
| F23 | (30A) Engine coolant blower motor |
| F24 | – |
| F25 | (40A) Heater blower motor |
Fuse box №2 in engine compartment.
fuse box location.
fuse box diagram.
legend.
| 1 | ABS relay |
| 2 | ABS relay |
| 3 | ABS pump motor relay |
| F1 | (7,5A) ABS/ESP system |
