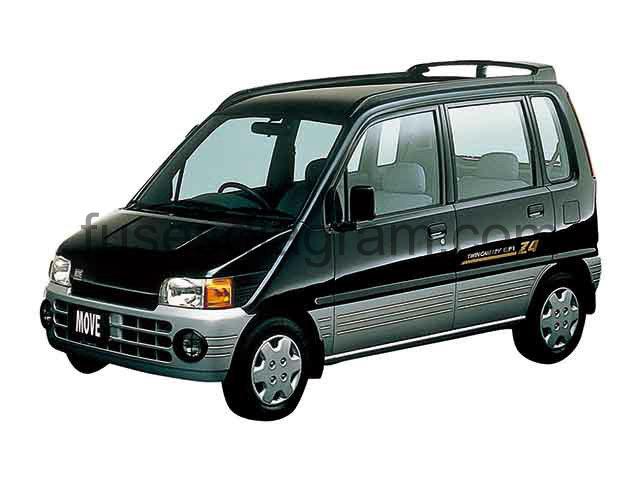

For Daihatsu Move (L602, L901) 1997, 1998, 1999, 2000, 2001, 2002, 2003 model year.
| Cigarette lighter fuse – fuse box in passenger compartment – Fuse F3/15A |
Fuse box in passenger compartment.
fuse box location.
fuse box diagram.
Assignment of the fuses.
Fuse 1
Left headlight
10.0 A
Fuse 2
Right headlight
10.0 A
Fuse 3
Accessories
Cigarette lighter
15.0 A
Fuse 4
Brake lights
10.0 A
Fuse 5
Horn
ABS
15.0 A
Fuse 6
Not used
Fuse 7
Tail lights
15.0 A
Fuse 8
Engine management
10.0 A
Fuse 9
ABS
Power steering
10.0 A
Fuse 10
Heated rear windscreen
15.0 A
Fuse 11
Heating and ventilation
20.0 A
Fuse 12
Engine management
15.0 A
Fuse 13
Instrument panel
Direction indicators
15.0 A
Fuse 14
Wiper system
15.0 A
Fuse 15
Windows
30.0 A
Fuse 16
No information is available
30.0 A
Fuse 17
Fog light(s)
15.0 A
Fuse 18
Airbag
10.0 A
Fuse box in engine compartment.
legend.
Fuse 1
Tail lights
40.0 A
Fuse 2
Starter motor, in conjunction with automatic transmission
60.0 A
Fuse 3
Cooling fan
30.0 A
Fuse 4
Radio
15.0 A
Fuse 5
Fuel injection
15.0 A
Relay R1
Fuel injection
Relay R2
Fuel pump
Relay R3
Starter motor, in conjunction with automatic transmission
Relay R4
Air conditioning
Relay R5
Cooling fan
