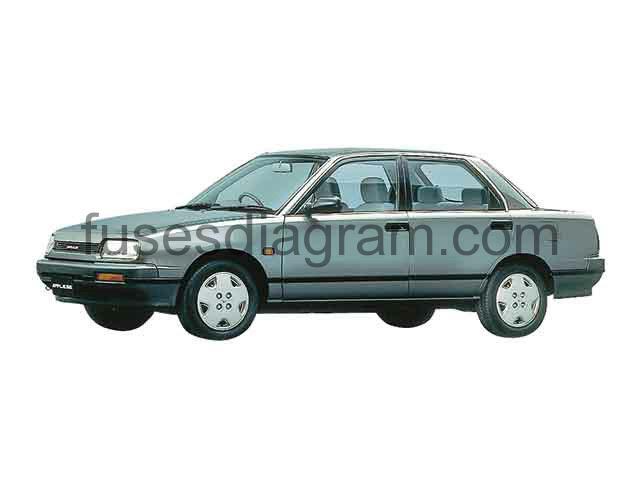

For Daihatsu Applause 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001 model year.
| Cigarette lighter fuse – fuse box in passenger compartment (pre 1994) – Fuse F3/20A |
MENU
Fuse box in passenger compartment.
- fuse box diagram (Germany)
- fuse box diagram (Europe except Germany)
- fuse box No. 2 (Europe except Germany)
- fuse box No. 2 (Germany)
Additional relays in passenger compartment.
Fuse box No. 2 in engine compartment, on the battery terminal
Fuse box in passenger compartment.
fuse box location.
Assignment of the fuses.
Fuse 1
Spare fuse/relay
15.0 A
Fuse 2
Flasher relay
Horn
15.0 A
Fuse 3
Cigarette lighter
20.0 A
Fuse 4
Left tail light
10.0 A
Fuse 5
Right tail light
Clock
10.0 A
Fuse 6
Front wipers
Rear wiper
15.0 A
Fuse 7
Alternator
Fan relay
15.0 A
Fuse 8
Warning lights
Indicator light
10.0 A
Fuse 9
Flasher relay
Reversing light(s)
15.0 A
Fuse 10
Left headlight
15.0 A
Fuse 11
Right headlight
15.0 A
Fuse 12
Spare fuse/relay
10.0 A
Fuse 13a
ABS
Or
ESP control unit
5.0 A
Fuse 13b
Not used
Fuse 14
Cooling
10.0 A
Fuse 15
Not used
Relay R1
Flasher relay
Fuse box diagram (Europe except Germany).
legend.
Fuse 1
Spare fuse/relay
15.0 A
Fuse 2
Flasher relay
Horn
15.0 A
Fuse 3
Cigarette lighter
20.0 A
Fuse 4
Brake light switch
Interior lights
10.0 A
Fuse 5
Clock
Sidelight switch
20.0 A
Fuse 6
Front wipers
Rear wiper
15.0 A
Fuse 7
Alternator
Fan relay
15.0 A
Fuse 8
Warning lights
Indicator light
10.0 A
Fuse 9
Flasher relay
Reversing light(s)
15.0 A
Fuse 10
Left headlight
15.0 A
Fuse 11
Right headlight
15.0 A
Fuse 12
Spare fuse/relay
10.0 A
Fuse 13a
ABS
Or
ESP control unit
5.0 A
Fuse 13b
Not used
Fuse 14a
Cooling
10.0 A
Fuse 14b
Not used
Fuse 15a
Not used
Fuse 15b
Cooling (Australia)
10.0 A
Relay R1
Flasher relay
Fuse box No. 2 in passenger compartment, (Europe except Germany).
legend.
Fuse 1
Demister
30.0 AFuse 2
Heater
30.0 A
Fuse 3
Sunroof
20.0 A
Fuse 4
Electronic fuel injection
10.0 A
Fuse 5
Power windows
30.0 A
Fuse box No. 2 in passenger compartment, (Germany).
legend.
Fuse 1
Demister
30.0 A
Fuse 2
Heater
30.0 A
Fuse 3
Electronic fuel injection
10.0 A
Fuse 4
Brake lights
10.0 A
Fuse 5
Power windows
Sunroof
30.0 A
Fuse box No. 2 in engine compartment, on the battery terminal.
Fuse 1
Air conditioning
30.0 A
Fuse 2
Headlights
Hazard warning lights
Horn
40.0 A
Fuse 3
Electronic fuel injection
30.0 A
Additional relays in passenger compartment.
LHD.
Relay R1
Heater relay
Relay R2
Wiper relay
Relay R3
Central locking relay
Relay R4
Brake light failure relay
Relay R5
Daylight running system relay
Relay R6
ABS relay
RHD.
Relay R1
Heater relay
Relay R2
ABS relay
Relay R3
Dim-dip relay
Relay R4
Central locking relay
Relay R5
Brake light failure relay
Relay R6
Wiper relay
