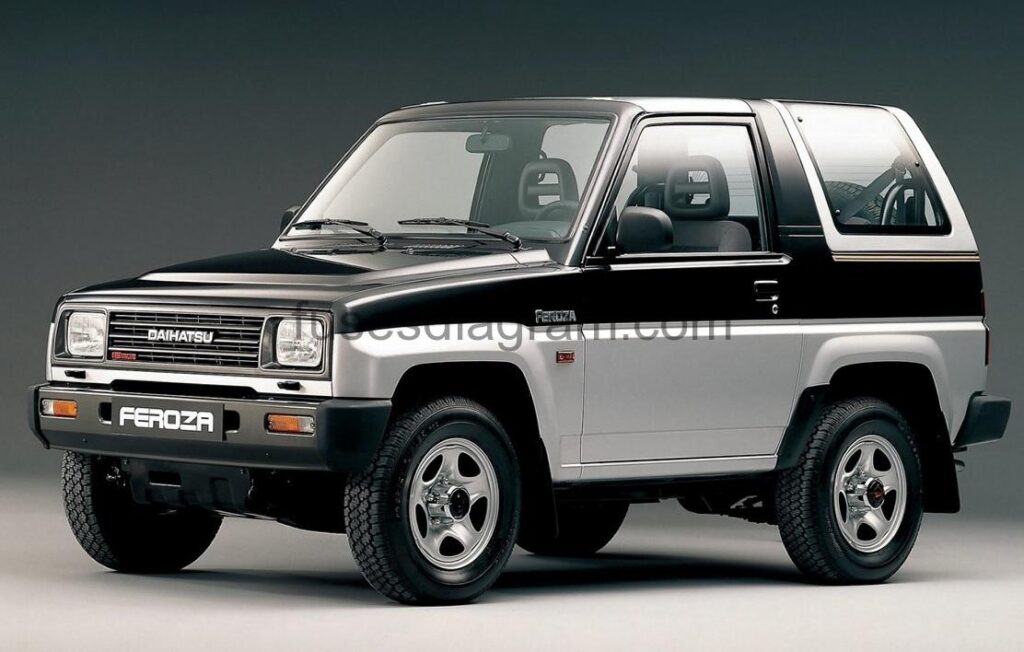

Fuse box diagram Daihatsu Feroza /Sportrak

For Daihatsu Feroza  /Sportrak (F3) 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000 model year.

Cigarette lighter fuse – fuse box in passenger compartment – Fuse F6/15A



Fuse box in passenger compartment.

fuse box location.

The fuse block is located at left side of the steering wheel.



fuse box diagram.



Assignment of the fuses.

Fuses  Amps Circuits Protected
1 15A Right headlight
2 15A Left headlight
3 30A Heater
4 10A Alternator
Dim-dip relay
5 15A Horn
6 15A Cigarette lighter
Radio
Clock
Mirror(s)
7 15A Wiper system
8 15A Demister
9 7.5A Direction indicator
10 7.5A Instrument panel
Warning lights
Reversing light(s)
Air-conditioning cut-off
Heater relay
11 10A

Brake lights

or

Left tail light(s)
Number plate light(s)
Rear fog light(s)

12 15A

Tail lights
Number plate light(s)
Rear fog light(s)

or








Sub fuse block.



legend.

Fuse 1
Air conditioning
15.0 A
Fuse 2
Brake lights
15.0 A
Fuse 3
Injection system
30.0 A
Fuse 4
Central locking
10.0 A
