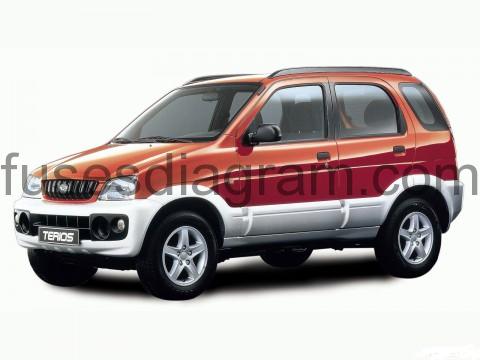

For Daihatsu Terios (J100) 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006 model year.
| Cigarette lighter fuse – fuse box in passenger compartment – Fuse F12/30A |
Fuse box in passenger compartment.
fuse box location.
fuse box diagram.
Assignment of the fuses.
| No. | Fuse | Amps | Circuit Protected |
|---|---|---|---|
| 1 | FOG | 10A | Fog lamp SW |
| 2 | TAIL | 10A | Tail lamp, Clearance lamp, Meter illumination, Heater illumination, Warning buzzer (Reverse SW, Courtesy SW, Turn SW, Key SW, Flasher relay socket (Turn SW, Hazard SW)) |
| 3 | DEFOG | 15A | Defogger SW, Power window SW |
| 4 | POWER | 30A | Power window SW |
| 5 | GAUGE/BACK | 10A | Meter, Cowl, Back lamp SW, Warning buzzer (Reverse SW, Courtesy SW, Turn SW, Key SW, Flasher relay socket (Turn SW, Hazard SW)) |
| 6 | ENGINE | 10A | Ignition coil, Diagnosis check, Air bag ECU |
| 7 | SPARE | 10A | Spare fuse |
| 8 | SPARE | 15A | Spare fuse |
| 9 | – | – | – |
| 10 | WIPER/TURN | 20A | Front wiper motor, Hazard SW, Rear wiper SW, Rear wiper motor |
| 11 | HEATER | 20A | Heater |
| 12 | ACC | 15A | Cigarette lighter, Radio, Electric mirror, ACC (Sub), Power supply (Option) |
| 13 | H/L LH | 10A | Left−hand headlight |
| 14 | H/L RH | 10A | Right−hand headlight |
| 15 | STOP | 10A | Stop SW, Room lamp |
| 16 | ECU IG | 10A | EFI Main relay, EPS ECU |
| 17 | AIR BAG | 10A | Air bag ECU, IG SW (IG2) |
| 18 | DOORLOCK | 15A | Door lock relay |
| 19 | – | – | – |
Fuse box in engine compartment.
fuse box location.
fuse box diagram.
legend.
| Fuse | Amps | Circuits Protected |
|---|---|---|
| 1 | 20A | Blower |
| 2 | 10A | Reversing light(s) |
| 3 | 15A | Fuel injection system |
| 4 | 15A | Horn Hazard warning lights |
| 5 | 10A | Air conditioning |
| 6 | 60A | Ignition switch |
| 7 | 50A | ABS Or ESP control unit |
| 8 | 40A | Tail lights |
| 9 | 30A | Headlights |
| R1 | Fuel pump | |
| R2 | Starter system | |
| R3 | Injection system | |
| R4 | Blower | |
| R5 | Air conditioning | |
| R6 |
