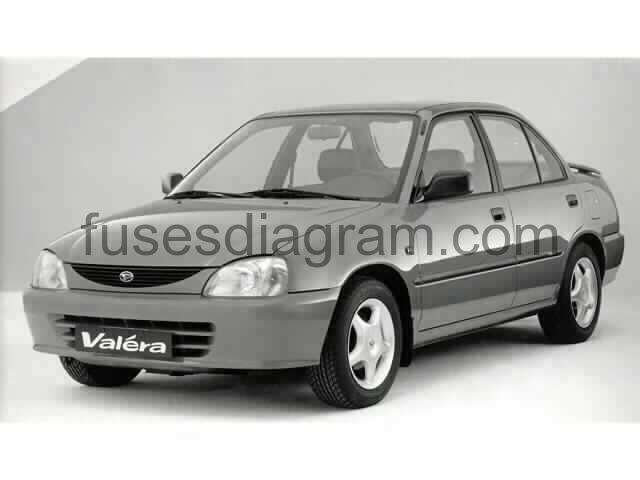

For Daihatsu Valera (G203) 1995, 1996, 1997, 1998, 1999, 2000, 2001 model year.
| Cigarette lighter fuse – fuse box in passenger compartment – Fuse F11/15A |
Fuse box in passenger compartment.
fuse box diagram.
Assignment of the fuses.
| 1 | Indicator relay |
| F1 | (20A) Heated rear window |
| F2 | (10A) Engine electrics |
| F3 | (15A) Audio |
| F4 | (10A) Starter motor |
| F5 | (15A) Indicator lamps |
| F6 | (15A) Horn, hazard lamps |
| F7 | (15A) Windscreen wiper motor |
| F8 | (10A) Rear fog lamp, tail lamp – left |
| F9 | (10A) Instruments |
| F10 | (10A) Tail lamp – right |
| F11 | (15A) Cigarette lighter |
| F12 | (20A) Spare |
| F13 | (15A) Spare |
| F14 | (10A) Spare |
| F15 | (15A) Headlamp – left |
| F16 | (15A) Headlamp – right |
| F17 | (20A) Ignition No.1 |
| F18 | (30A) Heater blower motor |
| F19 | (15A) Stop lamps |
| F20 | (15A) Interior lamp |
| F21 | (15A) Ignition No.2 |
| F22 | (30A) Main No.2 |
| F23 | (20A) Main No.1 |
Fuse box in engine compartment.
legend.
| 1 | Fuel pump relay |
| 2 | Engine control module relay |
| 3 | Engine coolant blower motor relay |
| 4 | Air conditioning condenser blower motor relay |
| F1 | (50A) ABS |
| F2 | (40A) Headlamps |
| F3 | (30A) Engine coolant blower motor |
| F4 | (30A) AC condenser blower motor |
