For Dodge Ram Van 1983, 1984, 1985, 1986, 1987, 1988, 1989 model year.

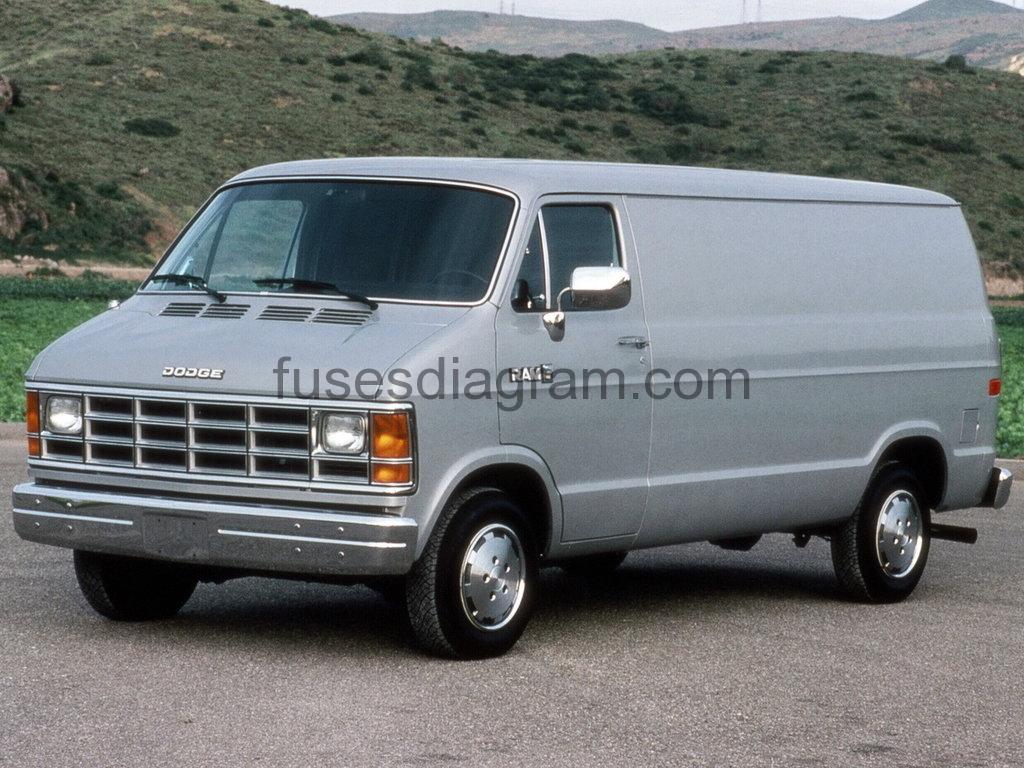

Dodge Ram Van (B150, B250, B350)
Cigarette lighter fuse – Fuse box in passenger compartment – Fuse №1/3A (1986-89) Cigarette lighter fuse – Fuse box in passenger compartment – Fuse №6/20A (1986-88) Cigarette lighter fuse – Fuse box in passenger compartment – Fuse №7/25A (1983-85); Cigarette lighter fuse – Fuse box in passenger compartment – Fuse №7/20A (1989); Cigarette lighter fuse – Fuse box in passenger compartment – Fuse №8/20A (1986-87); |
Fuse box location.
Fuse box is located underneath glove compartment door.
Fuse box diagram.
Assignment of the fuses.
| Fuses | Amps | Circuits protected |
|---|---|---|
| 1 | 5 Amp (1983-85); 3 Amp (1986-89) | Cluster Illumination, A/C-Heater Indicator Light, Switch Illumination, Radio & Clock Display Dimming, Radio Illumination, Rear Defroster, Auxiliary A/C (1983-85); Illumination Lights, Radio & Clock Display, A/C-Heater System, Headlight Switch, Cigarette Lighter, Auxiliary A/C, Rear Defroster (1986-89). |
| 2 | 20 Amp (1983-85); 10 Amp (1986-89) | Back-Up Lights, Turn Signals, A/C Clutch, Speed Control (1983-85); Radio, Clock (1986-89). |
| 3 | 20 Amp (1983-89) | A/C-Heater Blower Motor, Horn, Horn Relay (1983-85); Turn Signals (1987-88); Windshield Wipers (1989). |
| 4 | 5 Amp (1983-85); 20 Amp (1986-89) | Radio, Clock (1983-85); Back-Up Lights, Auxiliary A/C-Heater System, A/C Clutch (1986-89); Turn Signals (1989); Van Conversion Relay (1989). |
| 5 | 20 Amp (1983-85); 5 Amp (1986-89) | Voltage Limiter, Gauges, Warning Lights, Heated Rear Window Switch, Seat Belt Light & Buzzer, Maintenance Reminder Light, Clock Display, Heated Rear Window Relay (1983-85); Gauges, Warning Lights, Speed Control, Seat Belt Reminder (1986-89); Fuel Pacer (Except 1989); CHECK ENGINE Light, Rear Window Heater, Overdrive Lock-Out Relay (1989). |
| 6 | 20 Amp (1983-89) | Taillights, Park Lights, License & Side Marker Lights, Radio & Clock Display Dimming, Cavity 1 (1983-85); Horns (1986-89); Cigarette Lighter (1986-88); Radio & Clock Memory (1986-88); Key & Headlight Buzzers (1986-88); Illumination Lights (1989). |
| 7 | 25 Amp (1983-85); 20 Amp (1986-89) | Stoplights, Dome & Reading Lights, Courtesy Lights, Glove Box Lights, Cigarette Lighter, Ignition Switch Light & Relay, Electronic Clock (1983-85); Stoplights, Courtesy Lights, Reading & Glove Box Lights, Ignition Light Time-Delay Relay, Power Door Lock Relay (1986-89); Cigarette Lighter, Key & Headlight Buzzer, Auxiliary A/C-Heater System (1989). |
| 8 | 20 Amp (1983-89) | Hazard Flasher (1983-85); Horn, Cigarette Lighter, Rear Defroster, Radio & Clock Memory, Key & Headlight Buzzer (1986-87); Windshield Wipers (1988); Radio Memory, Glove Box & Dome Lights, Reading & Courtesy Lights, Time-Delay Lights & Relay (1989). |
| 9 | 30 Amp (1983-89) | A/C-Heater Blower Motor, Auxiliary A/C-Heater Coil (1989). |
| 10 | 25 Amp (1983-85); 20 Amp (1986-89) | Heated Rear Window, Idle-Up Solenoid (1983-85); Hazard Flashers (1986-89). |
Buzzers, relays & timers.
Component | Component Locators |
|---|---|
| A/C Cut-Off Relay | On left center of firewall, in engine compartment. |
| Dual Pick-Up (Start/Run) Relay | On right side of firewall, in engine compartment. |
| EGR Delay Timer | On right inner fender panel. See Fig. 2 . |
| Fuel Pump Relay | On left side of fender panel. See Fig. 1 . |
| Hazard Flasher Relay | Behind dash, to right of fuse block. See Fig. 3 . |
| Headlight/Key/Seat Belt Buzzer | Under dash, on firewall near bulkhead connector. |
| Heated Rear Window Relay | Under dash, to right of steering column. |
| Horn Relay | Under dash, just below speedometer head. |
| Idle Stop Solenoid Relay | On right inner fender panel. See Fig. 2 . |
| Ignition Switch Relay | Taped to ignition switch wires, under dash. |
| Part Throttle Unlock Relay | On left side of firewall, in engine compartment. |
| Power Door Lock Relay | On steering column support bracket. See Fig. 4 . |
| Power Window Safety Relay | On steering column support bracket. |
| Starter Relay | On left center of firewall, in engine compartment. |
| Time Delay Relay | Under dash, near steering column. See Fig. 3 . |
| Turn Signal Flasher Relay | Behind dash, to right of fuse block. See Fig. 3 . |
| Variable Load Flasher Relay | Behind dash, to right of fuse block. See Fig. 3 . |
