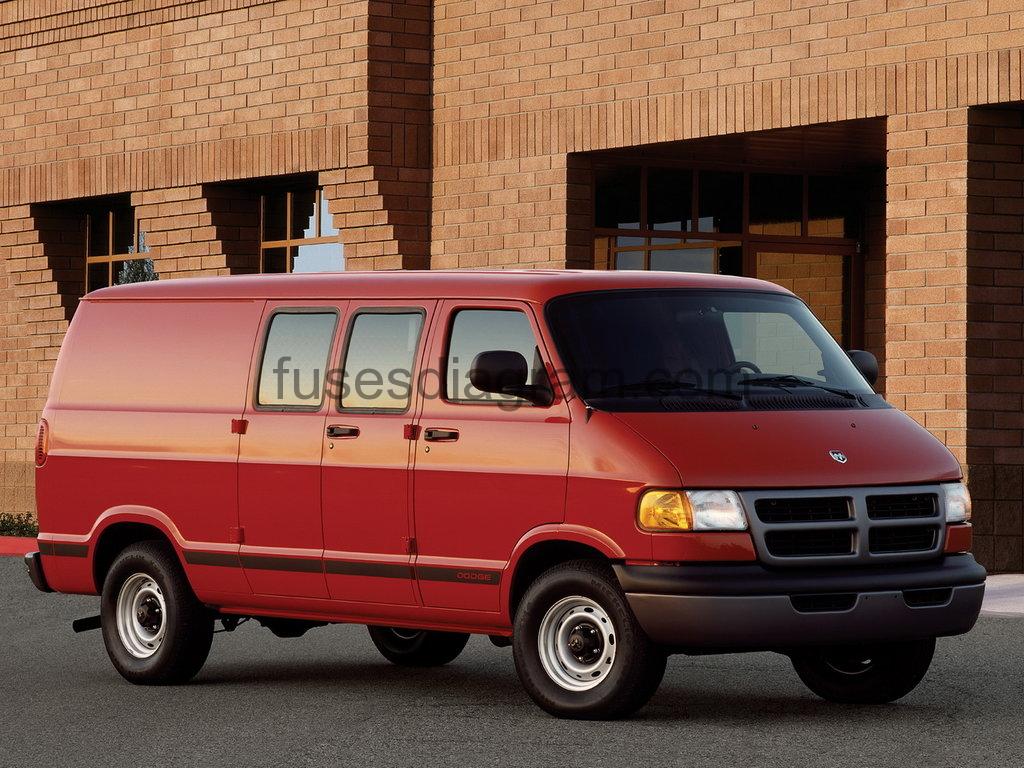

For Dodge Ram Van 2000, 2001, 2002. 2003 model year.
Dodge Ram Van/Wagon (B1500, B2500, B3500)
Cigarette lighter fuse – Fuse box in passenger compartment – Fuse №4/15A) Power Outlet – Fuse box in passenger compartment – Fuse №16/20A) |
MENU
Fuse box in engine compartment
Fuse box in passenger compartment
Buzzers, relays & timers location
Fuse box in engine compartment.
The power distribution center is located under the hood near the battery.
fuse box diagram.
Assignment of the fuses.
| Fuse (Amp) | Application |
|---|---|
| 1 (140) | Generator |
| 1/2 (40) | Van Conversion Provision |
| 3 (30) | Ignition Switch |
| 4 (20) | Brake Lamp Switch & Turn Signal/Hazard Switch |
| 5 (40) | Rear Window Defogger Switch |
| 6 (50) | Fuse Block |
| 7 (40) | Rear A/C Heater Unit |
| 8 (40) | Fuse Block |
| 9/10 (40) | Van Conversion Accessory Power Relay & Van Conversion Provision |
| 11 (30) | Automatic Shut Down Relay |
| 12 (50) | Blower Motor Relay & Blower Motor |
| 13 | Not Used |
| 14 (50) | Ignition Switch |
| 15 (30) | Headlamp Switch & Daytime Running Lamp Module |
| 16 (40) | Controller Anti-Lock Brake |
| 17/18 (20) | Powertrain Control Module & Transmission Control Relay |
| 19/20 (15) | Powertrain Control Module, Fuel Injectors No. 1-8, Ignition Coil & Oxygen Sensors |
Fuse box in passenger compartment
The fuse block and fuse/relay block are located behind the access door on the left end of the instrument panel support.
fuse box diagram.
Assignment of the fuses.
| Fuse (Amp) | Application |
|---|---|
| 1 (15) | Radio |
| 2 (10) | Central Timer Module |
| 3 (20) | Wiper Relay, Central Timer Module, Wipe/Wash Switch, Windshield Washer Pump, Intermittent Wiper Control Module & Hazard Flasher |
| 4 (15) | Cigar Lighter & Van Conversion Accessory Power Relay |
| 5 (20) | Passenger Airbag On/Off Switch & Airbag Control Module |
| 6 (10) | Fuel Pump Relay, Automatic Shut Down Relay, Powertrain Control Module & Torque Converter Clutch Solenoid |
| 7 (10) | Instrument Cluster, Power Door Lock Module & Central Timer Module |
| 8 (15) | Chime/Buzzer Module, Duty Cycle EVAP/Purge Solenoid & Daytime Running Lamp Module |
| 9 (20) | Airbag Control Module |
| 10 (15) | Blower Motor Relay, A/C Heater Control, Blend Door Actuator, Rear Window Defogger Switch, Rear A/C Heater Control & A/C Cycling Switch |
| 11 (10) | Control Anti-Lock Brake |
| 12 (20) | Park/Neutral Position Switch & Right/Left Back-Up Lamp |
| 13 (20) | A/C Compressor Clutch Relay & A/C Compressor Clutch |
| 14 (20) | Radio, Power Amplifier & Data Link Connector |
| 15 (20) | Driver/Passenger Door Lock Switch, Central Timer Module & Power Door Lock Module |
| 16 (20) | Power Outlet |
| 17 (20) | Engine Starter Motor Relay & Engine Starter Motor |
| 18 (20) | Fuel Pump Relay & Fuel Pump Module |
| 19 (20) | Headlamp Switch |
| 20 (20) | Horn Relay |
| Fuse (Amp) | Application |
|---|---|
| 1 (30) | Hazard Flasher |
| 2 (5) | Radio, Instrument Cluster, A/C Heater Control & Rear A/C Heater Control |
| 3 (10) | Center High Mounted Stop Lamp |
| 4 (15) | Dome Lamp Switch, Power Mirror Switch, Glove Box Lamp, Courtesy Lamp Relay, Underhood Lamp, Instrument Cluster & Chime/Buzzer Module |
Buzzers, relays & timers location.
Component | Component Location |
|---|---|
| A/C Compressor Clutch Relay | In power distribution center. |
| Automatic Shut Down Relay | In power distribution center. |
| Blower Motor Relay | On relay & fuse block. |
| Central Timer Module | Behind dash, on left center dash panel support. |
| Chime/Buzzer Module | On left center dash panel support, in wire harness connector. |
| Courtesy Lamp Relay | On relay & fuse block. |
| Engine Starter Motor Relay | In power distribution center. |
| Fuel Pump Relay | On fuse block. |
| Hazard Flasher | On relay & fuse block. |
| Headlamp Relay | On relay & fuse block. |
| High Blower Relay | In power distribution center. |
| Horn Relay | On relay & fuse block. |
| Intermittent Wiper Relay | Behind glove box, taped to wire harness. |
| Transmission Control Relay | In power distribution center. |
| Van Conversion Accessory Power Relay | Near rear of headlamp switch. |
