For Dodge Caravan 2005, 2006, 2007 mode year.

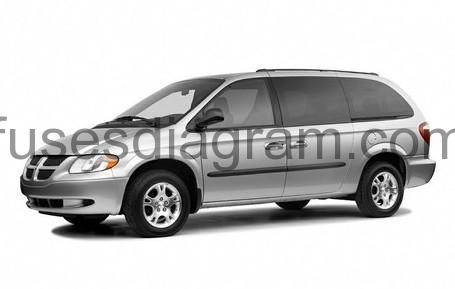

Dodge Caravan, Dodge Grand Caravan
Rear Cigar Lighter (All) – Fuse box in engine compartment – Fuse №6/20A Front Cigar Lighter – Fuse box in engine compartment – Fuse №5/20A |
Fuse box in engine compartment.
fuse box location.
fuse box diagram.
Assignment of the fuses (2005-2007).
FUSE NO. | AMPS | FUNCTION |
---|---|---|
1 | 20A | Fog Lights |
2 | 15A | Left Park/Tail Light |
3 | 15A | Right Park/Tail Light |
4 | 30A | Front Wipers |
5 | 20A | RDO/IP Ignition, Front Cigar Lighter |
6 | 20A | 12 Volt Out Ignition or Battery, Rear Cigar Lighter (All) |
8 | 20A | Horn |
9 | 40A | Anti-Lock Brake System Pump |
10 | 40A | Front Blower Motor |
11 | 20A | EWD/Rear Wiper |
12 | 25A | Rear Blower |
13 | 40A | Electronic Brake Light (EBL) |
14 | 20A | Ignition Off Draw (IOD) |
15 | 20A | Electronic Automatic Transaxle (EATX) Battery |
16 | 25A | ASD |
17 | 20A | Fuel Pump |
18 | 15A | A/C Clutch |
19 | 40A | Body Control Module (BCM) Feed 1 |
20 | 30A | Central Amplifier |
21 | 25A | Anti-Lock Brake System (ABS) Module |
22 | 40A | Seats |
23 | 10A | Ignition Switch |
24 | 20A | Hazard |
26 | 20A | Stop Lamp |
27 | 40A | Radiator Fan |
28 | 40A | Power Windows |
30 | 40A | Headlight Washers (Export Only) |
31 | 40A | Power Sliding Door |
32 | 40A | Power Liftgate |
33 | 15A | Front/Rear Washer |
Buzzers, relays & timers location.
Component | Location |
Accessory Relay | In integrated power module. |
A/C Compressor Clutch Relay | In integrated power module. |
Adjustable Pedals Relay | At left side of engine compartment. See Fig. 4. |
Auto Shut Down Relay | In integrated power module. |
Defogger Relay | Integrated power module. |
Front Blower Motor Relay | In integrated power module. |
Front Fog Lamp Relay | In integrated power module. |
Front Wiper High/Low Relay | In integrated power module. |
Front Wiper On/Off Relay | In integrated power module. |
Fuel Pump Relay | In integrated power module. |
Horn Relay | In integrated power module. |
Park Lamp Relay | In integrated power module. |
Passenger Folding Mirror Relay | On integrated power module. See Fig. 5. |
Radiator Fan Relay | At top of left front frame rail. See Fig. 1. |
Rear Blower Motor Relay | In integrated power module. |
Right Combination Relay | Behind left quarterpanel. |
Spare Relay | In integrated power module. |
Starter Motor Relay | In integrated power module. |
Transmission Control Relay | In integrated power module. |
