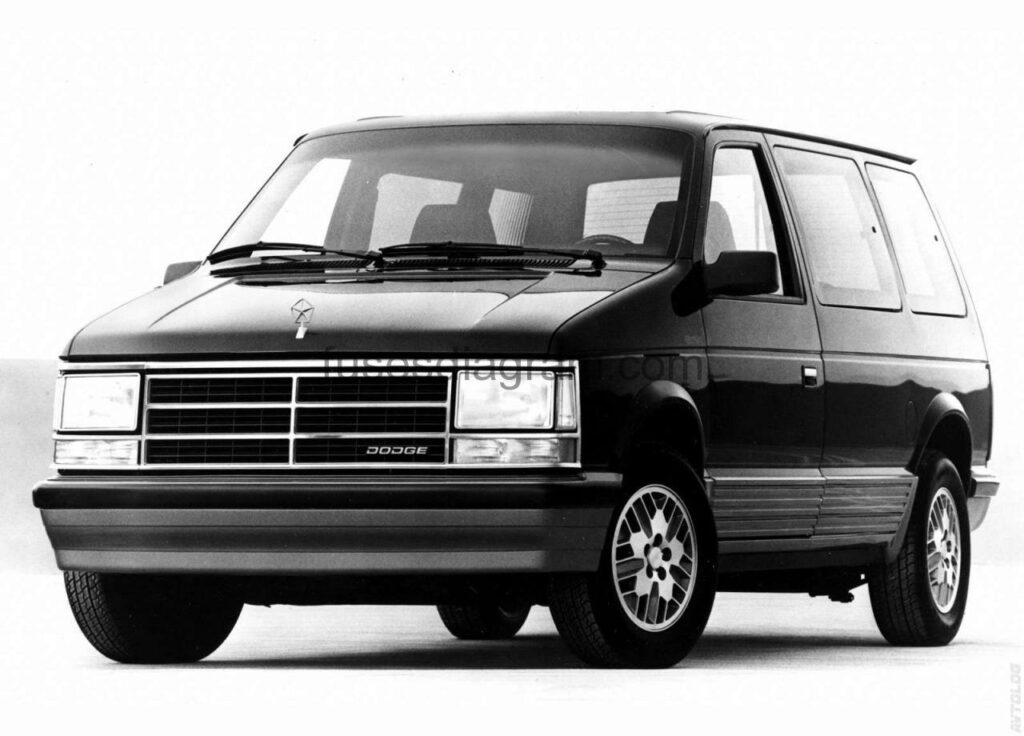

For Dodge Caravan 1984, 1985, 1986, 1987, 1988, 1990, 1990 model year.
Dodge Caravan, Dodge Grand Caravan
Cigarette lighter fuse – Fuse box in passenger compartment – Fuse №7/25A (1988-90) Cigarette lighter fuse – Fuse box in passenger compartment – Fuse №12/4A (1984-87) |
MENU
Fuse box in passenger compartment
Buzzers, relays & timers location
Fuse box in passenger compartment.
Fuse panel is located under the parking brake handle on the left side of the steering column.
fuse box diagram.
Assignment of the fuses.
| Fuse | Amps | Circuits protected |
|---|---|---|
| 1 | 20A | Hazard Flasher. |
| 2 | 20A | Back-Up Lights, A/C Fan & Clutch Relay Coil, Heater Rear Window Switch, Rear A/C, Rear Heater, Overhead Console (1984-87). |
| 3 | 30A | Power Window Motors, Sun Roof (1984-87), Power Vent Windows (1984-87). |
| 4 | 30A | A/C or Heater Blower Motor. |
| 5 | 20A | Taillights, Park, Side Marker & License Lights (1984-90), Clock, Radio, Overhead Console Intensity (1984-87), Rear A/C Unit Light (1988-90). |
| 6 | 20A | Stoplights, Chimes. |
| 7 | 25A | Horns, Cigarette Lighter, Power Amp Feed, Horn Relay (1988-90). |
| 8 | 30A | Power Seat Motors, Power Door Locks, Power Mirrors. |
| 9 | 10A | Radio & Clock Display. |
| 10 | 20A | Turn Signal Lights, Van Conversion Relay (1984-87). |
| 11 | 20A | Windshield Washer/Wiper. |
| 12 | 4A | Cluster, A/C & Heater Controls, Ash Receiver, Radio, Overhead Console, Rear Heater Switch, A/C Switch Lights, Cigarette Lighter (1984-87), Headlight Switch (1984-87). |
| 13 | 5A | Fuel, Voltage, Oil & Temp Gauges & Lights, BRAKE Warning, Liftgate Open (1984-87), Seat Belt CHECK ENGINE Lights, Speed Control, Fuel Pacer (1988-90). |
| 14 | 20A | Rear Washer/Wiper & Liftgate Release, Electronic Module (Manual Transmission 1984-87). |
| 15 | 10A | Underseat Storage, Lower Console, Dome, Map, Cargo & Storage Lights, Ignition, Headlight, Courtesy, Vanity Mirror Lights, Radio Memory, Time Delay Relay (1988-90). |
| 16 | 25A | Power Vent Windows (1984-87), Blank (1988-90). |
| 17 | Horn Relay. | |
| 18 | Ignition Switch, Key Light Time Delay Relay | |
| 19 | Turn Signal Flasher |
Buzzers, relays & timers location.
| Component | Location |
|---|---|
| A/C Condenser Fan Relay | On left fender panel. See Fig. 1 . |
| A/C Cut-Out Relay | On left fender panel. See Fig. 1 . |
| Auto. Shutdown Relay | On left fender panel. See Fig. 1 . |
| Back-Up Light Relay (V6) | On bracket, on right fender panel. See Fig. 2 . |
| Cooling Fan Relay | On left fender panel. See Fig. 1 . |
| Hazard Flasher Relay | On bracket, below fuse/relay block. |
| Horn Relay | On fuse/relay block. See Fig. 3 . |
| Ignition Light Time Delay Relay | On fuse/relay block. See Fig. 3 . |
| Liftgate Release Relay | On bracket, below fuse/relay block. |
| Low Fuel Relay | On back of message center, in right rear of instrument cluster. |
| Rear Window Defroster Timer/Relay | Under left side of instrument cluster. |
| Safety Shutdown Relay (V6) | On bracket, on right fender panel. See Fig. 2 . |
| Starter Relay | On left fender panel. See Fig. 1 . |
| Turn Signal Flasher Relay | On fuse/relay block. See Fig. 3 . |
