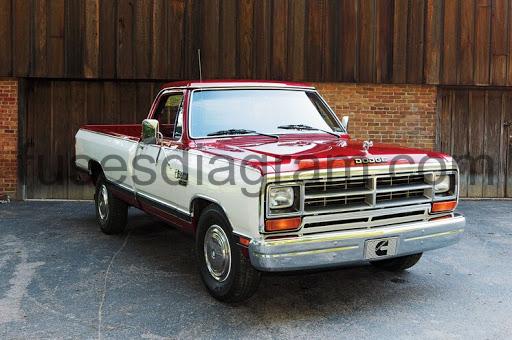

For Dodge Ram Pickup 1983, 1984, 1985, 1986, 1987 model year.
Dodge Ram D150, D250, D350, W150, W250, W350.
Cigarette lighter fuse – Fuse №7/20A . |
Fuse box in passenger compartment.
fuse box location.
fuse box diagram.
Assignment of the fuses.
| Fuses | Amps | Circuits protected |
|---|---|---|
| 1 | 30 Amp | A/C-Heater Blower Motor |
| 2 | 5 Amp (1983-87) | Cluster Illumination, Switch Lights, Snow Plow Light, 4WD Light, Radio, Clock & Ash Tray. |
| 3 | 15 Amp (1983-86); 20 Amp (1987) | Hazard Flasher |
| 4 | 5 Amp (1983-84); 10 Amp (1985-87) | Radio (1983-84); Radio, Clock (1985-87) |
| 5 | 15 Amp (1983-86); 20 Amp (1987) | Back-Up Lights, Turn Signal Indicator (1983-86); Turn Signals, Snow Plow Control, Transmission Oil Temperature Lamp (1987) |
| 6 | 20 Amp (1983-86); 20 Amp (1987) | A/C Clutch, Maint. Reminder Light, Speed Control, Transmission Oil Temperature Lamp, Snow Plow Control Solenoids (1983-86); Windshield Wipers, A/C Clutch (Diesel) (1987) |
| 7 | 20 Amp (1983); Blank (1984); 20 Amp (1985-87) | Maintenance Reminder Electronics (1983); Not Used (1984); Trailer Lights Circuit (1985-86); Horn Relay, Cigarette Lighter, Radio & Clock Memory, Key-In & Headlight Warning Buzzer (1987) |
| 8 | 25 Amp (1983-87) | Side & ID Lights (W/O Trailer Package), Tail, Park & License Lights, Radio & Clock, 4WD Indicator Module (1983-84); Clearance & ID Lights, Taillights, Park, Side Marker & License Lights (1985-87) |
| 9 | 20 Amp (1983-86) | Stop, Dome, Map & Courtesy Lights, Horn, Horn Relay, EMR Buzzer, Cargo & Glove Box Light, Clock & Radio Memory (1983-86); Dome, Map, Cargo & Courtesy Lights (1987) |
| 10 | 30 Amp (1983-87) | Power Windows, Door Locks, Relay |
| 11 | 3 Amp (1983-86); 5 Amp (1987) | Liftgate Ajar, Power Window Relay, Clock Display (1983); 4WD Indicator Light (1985-86); Liftgate Ajar, Power Window Relay, Speed Control Relay, 4WD indicator Light (1987) |
| 12 | 3 Amp (1983-86); 5 Amp (1987) | Brake Warning, Seat Belt Light & Buzzer, Fuel, Oil & Temperature Gauges (1983-86); Brake Warning, Seat Belt Light & Buzzer, Fuel, Oil & Temperature Gauges (1987) |
| 13 | Blank (1983-86); 20 Amp (1987) | A/C Clutch, Heated Rear Window Timer & Switch (1983-86); Back-Up Lights (1987) |
| 14 | Empty (1983-87) | |
| 15 | Blank (1983-87) |
NOTE: 1984 models have a circuit breaker integral with the wiper switch, which protects the circuitry of the wiper and washer system. These models do not use a fuse for this system.
CAUTIONS & WARNINGS
BATTERY
WARNING: When battery is disconnected, vehicles equipped with computers may lose memory data. When battery power is restored, driveability problems may exist on some vehicles. These vehicles may require a relearn procedure. See the COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION section.
