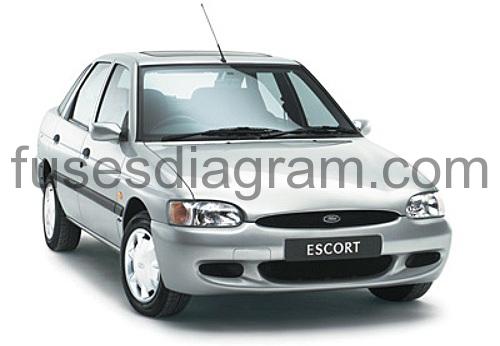

For Escort (17) 1991, 1992, 1993, 1994 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 model year.
| Cigarette lighter fuse – fuse box in passenger compartment – Fuse F29/15A |
MENU
Fuse box in passenger compartment.
- Fuse box diagram (Europe 1990-1995 RHD)
- Fuse box diagram (Europe 1990-1995 LHD)
- Fuse box diagram (USA, Canada 1991-1995 LHD)
- Fuse box diagram (USA, Canada 1994-1996 LHD)
- Fuse box diagram (Europe 1995-1997 RHD)
- Relay diagram type 2 (Europe 1996-1998 RHD).
- Fuse box diagram (USA, Canada 1997-2003 LHD).
- Fuse box diagram (Europe 1998-2003 LHD).
- Relay box diagram (Europe 1998-2003 LHD).
- Fuse box diagram type 1 (Europe 1998-2003 RHD).
Fuse box in engine compartment.
- Fuse box diagram 1.8L engine (USA, Canada 1991-1995 LHD).
- Fuse box diagram 1.9L engine (USA, Canada 1991-1995 LHD).
- Fuse box diagram (USA, Canada 1994-1996 LHD).
- Fuse box in engine compartment, near the battery, (Europe 1996 – 1998).
- Fuse box in engine compartment, near the battery, (Europe 1998 – 2003).
- Fuse box diagram engine compartment (USA, Canada 1997-2003).
Fuse box in passenger compartment.
fuse box location.
The interior fuse panel is below the instrument panel in front of the driver’s door.
Fuse box diagram (Europe 1990-1995 RHD).
Assignment of the fuses.
| F1 | (10A) Fog lamps |
| F2 | Spare |
| F3 | (10A) Headlamp adjustment, fog lamps, side lamps, number plate lamps, courtesy lamps, instrument lamps, auxiliary warning, heating, radio, radio/CD amplifier |
| F4 | Spare |
| F5 | (15A) Headlamps |
| F6 | (15A) Headlamps |
| F7 | (3A) Engine management, data link |
| F8 | (10A) Fog lamps, side lamps, number plate lamps, instrument illumination |
| F9 | (30A)ABS |
| F10 | (30A) Headlamps washers |
| F11 | (10A) ABS, engine control -1,8 TD, auxiliary warning, airbag system, headlamps, headlamp washers, alternator, instruments |
| F12 | (7,5A) Airbag system |
| F13 | (20A) Engine management, vehicle speed sensor |
| F14 | (10A) Engine management |
| F15 | (10A) Headlamps, headlamp adjustment |
| F16 | (20A) Ignition, engine management, engine control – 1,8D/TD, alarm system |
| F17 | (10A) Headlamps, headlamp adjustment |
| F18 | (30A) Sunroof, electric windows |
| F19 | Spare |
| F20 | (25A) Heater, air conditioning |
| F21 | (3A)ABS |
| F22 | (30A) Engine management, engine control – 1,8D/TD |
| F23 | (15A) Spare |
| F24 | (20A) Windscreen wipers, windscreen washers |
| F25 | (30A) ABS pump relay |
| F26 | (10A) Reverse lamps, indicators, hazard warning lamps |
| F27 | (25A) Heated front/rear windows, electric mirrors |
| F28 | (15A) Indicators, hazard warning lamps, horn, alarm system |
| F29 | (15A) Cigarette lighter, clock, radio, radio/CD amplifier alarm system (cabriolet) |
| F30 | (20A) Central locking |
| F31 | (15A) Fog lamps |
| F32 | (15A) Engine control – 1,8D/TD, alternator |
| F33 | (20A) Engine management |
| F34 | (15A) ABS, stop lamps, heated front/rear window |
| Relay | |
| 1 | Ignition main circuits relay |
| 2 | Headlamp low beam relay |
| 3 | Headlamp high beam relay I |
| 4 | Busbar for rear fog lamps |
| 5 | Engine control module relay – diesel |
| 6 | Fuel pump relay |
| 7 | Engine control module relay – petrol |
| 8 | Heated rear window relay |
| 9 | Interior lamp delay relay |
| 10 | Windscreen wiper intermittent relay – rear |
| 11 | Windscreen wiper intermittent relay – front |
| 12 | Starter motor inhibitor switch relay – AT/MT with alarm system |
| 14 | Headlamp dim-dip relay II |
| 15 | – |
| 16 | Headlamp dim-dip relay I |
| 17 | Fuel pump relay – 4X4 |
| 18 | ABS pump relay |
| 19 | ABS relay |
| 20 | Air conditioning relay (WOT) |
| 21 | Busbar for front fog lamps |
| 22 | Fog lamps relay – front |
| 23 | Busbar |
| 24 | Busbar |
| 25 | Busbar |
| 26 | Diode |
| F1 | (20A) Alarm system |
Fuse box diagram (Europe 1990-1995 LHD).
passenger compartment.
legend.
Fuse 1
Door light(s)
Heated rear windscreen
Mirrors
25.0 A
Fuse 2a
ABS
Instrument panel
30.0 A
Fuse 2b
ABS
Instruments (RS Cosworth)
3.0 A
Fuse 3a
Engine management
10.0 A
Fuse 3b
Engine management (RS Cosworth)
20.0 A
Fuse 4
Headlights
Daylight running system
15.0 A
Fuse 5
Engine management
20.0 A
Fuse 6
Headlight levelling
Fog lights
Number plate light(s)
Interior lights
Instrument panel
Instrument lighting
Warning lights
Heating and ventilation
Audio system
Heated seats
10.0 A
Fuse 7
Headlight levelling
Number plate light(s)
10.0 A
Fuse 8
Fog lights
10.0 A
Fuse 9a
Engine management (1.3 and 1.4 CFI )
Cooling fan
30.0 A
Fuse 9b
Engine management (1.3 and 1.4 CFI, RS Cosworth)
3.0 A
Fuse 10
Headlights
Daylight running system
10.0 A
Fuse 11
Fog lights
15.0 A
Fuse 12
Reversing lights
Hazard warning lights
Direction indicators
10.0 A
Fuse 13
Wash/wipe system
20.0 A
Fuse 14
Heating and ventilation
Air conditioning
Engine management (2.0 EFI)
25.0 A
Fuse 15
ABS
Or
ESP control unit
30.0 A
Fuse 16
Heated rear windscreen
3.0 A
Fuse 17
Airbags
7.5 A
Fuse 18
Headlights
Daylight running system
15.0 A
Fuse 19
ABS
Instrument panel
3.0 A
Fuse 20
Hazard warning lights
15.0 A
Fuse 21
Door light(s)
Cigarette lighter
Security system
15.0 A
Fuse 22
Sunroof
Windows
30.0 A
Fuse 23
Headlight washers
30.0 A
Fuse 24
Headlights
Daylight running system
10.0 A
Fuse 25
Engine management
Air conditi
Fuse 26
Heated seats
15.0 A
Fuse 27
ABS
Charging system
Headlights
Daylight running system
Brake lights
Fog lights
Door lights
Instrument panel
Warning lights
Cigarette lighter
Heated rear windscreen
Airbags
15.0 A
Fuse 28
Charging system
15.0 A
Fuse 29
Security system
Seats
Central locking
20.0 A
Relay R1
ABS pump
Relay R2
Air conditioning
Relay R3
Fuel pump 4×4
Relay R4
Headlight washers
Relay R5
Engine functions
Relay R6a
ABS main relay (except RS Cosworth)
Relay R6b
Voltmeter (RS Cosworth)
Relay R7a
Fuel pump
Relay R7b
Advance correction
Relay R8
Ignition
Relay R9
Heated rear windscreen
Relay R10
Supply relay
Relay R11
Rear fog light
Relay R12a
Daylight running system
Relay R12b
Reduced dipped beam (right-hand drive)
Relay R13
Fog lights
Relay R14
Intermittent windscreen wiper relay
Relay R15
Intermittent rear wiper
Relay R16a
Reduced dipped beam (right-hand drive)
Relay R16b
Daylight running system
Relay R17
Main beam
Relay R18
Advance correction
Relay R19
Interior lights
Relay R20
Dipped beam
Relay R21
Immobiliser or automatic transmission
A
Front fog lights
Fuse box diagram (USA, Canada 1991-1995 LHD)
legend.
1-10 Amp REAR WIPER
Rear Wiper/Washer Motors, WAC & A/C Relays, Daytime Running Lights (Canada), Climate Control Panel Illumination
2- 15 Amp HAZARD
Turn Signal Lights & Indicators, Hazard Flasher
3- 10 Amp ROOM
Dome, Map & Vanity Mirror Lights, TWS Unit (Tracer), Ignition Key Illumination, Luggage Compartment Light, Radio Memory, Door Lock Relay, Shift Lock System (Tracer), EEC Module
(1991-93), Powertrain Control Module ((PCM) 1994), EGI Module, EAT Control Unit
4- 5 Amp ENGINE
Cooling Fan Relays, Ignition & EEC Relays (1991-93), PCM Relay (1994)
5- 15 Amp RADIO
Radio & Premium Sound Amplifier, Remote Control Mirror, Instrument Panel Dimmer Switch
6- 30 Amp DOOR LOCK Door Lock Motor (If Equipped)
7- 30 Amp BELT
Passive Restraint Control Module, Passive Restraint Motors
8- 30 Amp POWER WIND Power Windows (If Equipped)
9- 15 Amp METER
Instrument Cluster, Back-Up & Turn Signal Lights, Speed Control System, Shift Lock System, TWS Unit, EAT Control Unit, Passive Restraint Control Module, Hazard Flasher, Auto Cruise, Safety Belt Warning Chime (1994), PCM ((1994)1.8L Canada)
10- 20 Amp WIPER
Front Wiper/Washer Motors, Interval Wiper Relay Unit
11- 20 Amp STOP
Stoplights & Hi-Mount Stoplight, Shift Interlock, Auto Cruise, EAT & EGI Modules, Horn
12- 15 Amp TAIL
Taillights & Side Marker Lights, License & Engine Compartment Lights, TNS Relay, EGI Module (1.8L), TWS Unit
13- 15 Amp SUN ROOF Moon Roof Motor (If Equipped)
14- 10 Amp
Anti-Lock Brake System (1994)
15- 20 Amp DEFOG
Rear Window Defogger (If Equipped), EGI Module (1.8L)
16- 30 Amp Circuit Breaker
Blower Motor, EGI Module (1.8L)
Fuse box diagram (USA, Canada 1994-1996 LHD).
| № | Amps | Description |
|---|---|---|
| 1 | 10A | A/C On Indicator, Air Conditioner Relay, Air Conditioner Switch, Daytime Running Lamp Module, Daytime Running Lamp Relay, Rear Wiper and Washer Motor, Wide-Open Throttle Cutout Relay |
| 2 | 30A | Door Lock Motor |
| 3 | 20A | Brakelamp, Electronic Automatic Transaxle Module, Powertrain Control Module, High-Mount Brakelamp, Horn, Shift Interlock System, Speed Control |
| 4 | 15A | Hazard Flashers, Front and Rear Turn Lamp, Turn Indicator Lamp |
| 5 | 30A | Passive Belt Control Module, Passive Belt Motor |
| 6 | 15A | Powertrain Control Module (1.8L engine), Exterior Lamps, Interior Illumination, Parking Lamp Relay, Warning Chime Module |
| 7 | 15A | Dome and Map Lamp, Door Lock Switch, Engine Room, Ignition Key Illumination, Luggage Lamp, Premium Sound Amplifier, Radio (memory), Powertrain Control Module, Shift Interlock System, Visor Mirror Lamp, Warning Chime Module |
| 8 | 30A | Power Window Motor |
| 9 | 15A | Moon Roof Motor |
| 10 | 15A | Cooling Fan System, Powertrain Control Module Power Relay |
| 11 | 15A | Air Bag Diagnostic Module, Backup Lamps, Cluster, Flasher Unit, Passive Belt Control Module, Powertrain Control Module (Canada Only), Shift-Lock System, Speed Control, Turn Signal Flashers, Warning Chime |
| 12 | 15A | Instrument Panel Dimmer Module, Radio, Remote Control Mirror |
| 13 | 20A | Front Wiper and Washer Motor, Interval Governor, Interval Wiper and Washer Switch |
| 14 | 20A | Powertrain Control Module (1.8L engine), Rear Window Defrost |
| 15 | 30A CB | Blower Motor, Powertrain Control Module (1.8L engine) |
| 16 | 10A (1.9L) / 20A (1.8L) | Heated Exhaust Gas Oxygen Sensor (1.9L engine) (on joint box side, not shown) Horn (on joint box side, not shown) |
| 17 | 20A | Cigar Lighter (on joint box side) |
| 18 | 10A | Anti-lock Brake System (1.8L engine) |
Fuse box diagram (Europe 1995-1997 RHD)
legend.
| F1 | (7,5A) Fog lamps |
| F2 | Spare |
| F3 | (10A) Headlamp adjustment, side lamps, number plate lamps, heater, radio, air conditioning, interior lamps |
| F4 | Spare |
| F5 | (15A) Headlamps |
| F6 | (15A) Headlamps |
| F7 | (3A) Data link, engine management, engine control – 1,8TCi/Endura-DE |
| F8 | (10A) Side lamps, number plate lamps, instrument illumination |
| F9 | (30A) ABS, ABS/traction control |
| F10 | (30A) Headlamp washers |
| F11 | (10A) Headlamps, ABS, ABS/traction control,engine management, engine control- 1,8TCi, alternator, fog lamps, instruments, instrument illumination, airbag system |
| F12 | (7,5A) Airbag system |
| F13 | (20A) Engine management, engine control- 1,8TCi/Endura-DE, vehicle speed sensor, air conditioning |
| F14 | (10A) Engine management |
| F15 | (10A) Headlamps, headlamp adjustment |
| F16 | (20A) Ignition, engine management, alarm system, central locking |
| F17 | (10A) Headlamps, headlamp adjustment |
| F18 | (30A) Instrument illumination, sunroof, electric windows |
| F19 | (25A) Spare |
| F20 | (25A) Heater, air conditioning |
| F21 | (3A) ABS, ABS/traction control |
| F22 | (30A) Engine management, engine control- 1,8D/TCi,AC |
| F23 | (15A) Heated seats |
| F24 | (20A) Windscreen wipers, windscreen washers, headlamp washers |
| F25 | (30A) ABS/traction control |
| F26 | (10A) Reverse lamps, indicators, hazard warning lamps |
| F27 | (25A) Heated front/rear windows, electric mirrors |
| F28 | (15A) Indicators, hazard warning lamps, horn, alarm system |
| F29 | (15A) Door lamps, cigarette lighter, clock, alarm system, audio |
| F30 | (20A) Central locking, electric windows |
| F31 | (15A) Fog lamps |
| F32 | (15A) Engine management, engine control – 1,8D/TCi/Endura-DE, air conditioning |
| F33 | (20A) Engine management |
| F34 | (15A) ABS, ABS/traction control, stop lamps, heated front/rear window |
| Relay | |
| 1 | Ignition main circuits relay |
| 2 | Headlamp low beam relay |
| 3 | Headlamp high beam relay I |
| 4 | Busbar for rear fog lamps |
| 5 | Engine control module relay – diesel |
| 6 | Fuel pump relay |
| 7 | Engine control module relay – petrol |
| 8 | Heated rear window relay |
| 9 | Interior lamp delay relay |
| 10 | Windscreen wiper intermittent relay – rear |
| 11 | Windscreen wiper intermittent relay – front |
| 12 | Starter motor inhibitor switch relay – AT/MT with alarm system |
| 14 | Headlamp dim-dip relay II |
| 15 | – |
| 16 | Headlamp dim-dip relay I |
| 17 | Fuel pump relay – 4X4 |
| 18 | ABS pump relay |
| 19 | ABS relay |
| 20 | Air conditioning relay (WOT) |
| 21 | Busbar for front fog lamps |
| 22 | Fog lamps relay – front |
| 23 | Busbar |
| 24 | Busbar |
| 25 | Busbar |
| 26 | Diode |
| F1 | (20A) Alarm system |
Relay diagram type 2 (Europe1996-1998 RHD).
legend.
Fuse 35
Central locking
20.0 A
Relay R1
Ignition lock
Relay R2
Engine management
Relay R3
Fuel pump
Relay R4
Engine running
Relay R5
Heated rear windscreen and mirrors
Relay R6
Intermittent windscreen wipers
Relay R7
Intermittent rear wiper
Relay R8
Dipped beam
Relay R9
Main beam
Relay R11
Time delay, interior light(s)
Relay R13
Start inhibitor
Relay R14
Lights on
Relay R15
Front fog lights
Relay R16
Headlight washers
Relay R17
Switching off (air conditioning)
Relay R18
Daylight running system
Relay R19
Rear fog light
Relay R20
Daylight running system
Relay R21
Not used
Relay R22
Security alarm system
Fuse box diagram (USA, Canada 1997-2003 LHD).
legend.
| Fuse/Relay Location | Fuse Amp | Panel Description |
|---|---|---|
| DRL | 10A | Daytime Running Lamps (DRL) |
| HAZARD | 15A | Hazard flasher |
| ROOM | 10A | Engine controls, RAP system, Radio, Shift lock, Courtesy lamps, Starting system, Warning chime, Instrument cluster |
| ENGINE | 15A | Electronic automatic transaxle, Ignition system, Constant control relay module (PCM relay) |
| RADIO | 5A | Power mirrors, Radio, RAP system |
| DOOR LOCK | 30A | Power door locks |
| HORN | 15A | Horn, Shift lock |
| AIR COND | 15A | A/C-heater, ABS |
| METER | 10A | Backup lamps, Engine coolant level switch, Instrument cluster, Rear window defrost, Shift lock, Warning chime, Turn signal switch |
| WIPER | 20A | Wiper/Washer, Blower motor relay |
| STOP | 20A | Stop lamps, Brake pressure switch |
| TAIL | 15A | Exterior lamps, Instrument illumination |
| SUN ROOF | 15A | Power moonroof |
| ASC | 10A | Speed control |
| P. WINDOW | 30A CB | Power windows |
| CIGAR | 20A | Cigar lighter |
| AIR BAG | 10A | Air bags |
| FOG | 10A | Fog lamps, DRL |
| AUDIO | 15A | Premium sound amplifier, CD changer |
| FUEL INJ. | 10A | H02S, Evaporative emission purge flow sensor |
| BLOWER | 30A CB | Blower motor relay |
Fuse box diagram (Europe 1998-2003 LHD).
legend.
| F1 | (30A) Glow plug control module, starter motor |
| F2 | (25A) Heater/air conditioning (AC) |
| F3 | (20A) Alarm system, daytime running lamps, entrance lamps, fog lamps, side lamps, horn, tail lamps, licence plate lamps |
| F4 | (10A) Entrance lamps, headlamp adjustment, interior lamps, licence plate lamps, side lamps, tail lamps |
| F5 | (15A) Daytime running lamps, headlamps |
| F6 | (15A) Daytime running lamps, headlamps |
| F7 | (10A) Fog lamps, licence plate lamps, side lamps, tail lamps |
| F8 | (7,5A) Alarm system, data link connector (DLC), engine management |
| F9 | (20A) Anti-lock brake system (ABS) |
| F10 | (30A) Headlamp washers |
| F11 | (7,5A) Airbag |
| F12 | (10A) Daytime running lamps, fog lamps, headlamps, instrument illumination, instrument panel |
| F13 | (15A) Air conditioning (AC), fuel heater (Diesel) |
| F14 | (15A) Engine management (petrol) |
| F15 | (10A) Engine management (petrol) |
| F16 | (20A) Air conditioning (AC), engine management, vehicle speed sensor(VSS) |
| F17 | (15A) Heated seats |
| F18 | (15A) Alarm system, audio system, instrument panel |
| F19 | (30A) Electric windows, instrument illumination, sunroof |
| F20 | (30A) Air conditioning (AC), engine coolant blower motor (except 1,3/1,6/1,8/1,8DTurbo) |
| F21 | (7,5A) Anti-lock brake system (ABS) |
| F22 | (20A) Central locking, data link connector (DLC), engine management (except 1,8D Turbo), starter motor relay (AT/MT with PATS), vehicle speed sensor(VSS) |
| F23 | (25A) – |
| F24 | (30A) Anti-lock brake system (ABS) |
| F25 | (20A) Alarm system, convertible top, headlamp washers, windscreen wash/wipe system |
| F26 | (10A) Indicators/hazard warning lamps, reversing lamp/s |
| F27 | (25A) Electric door mirrors, heated rear window, horn, indicators/hazard warning lamps |
| F28 | (15A) Alarm system, horn, indicators/hazard warning lamps |
| F29 | (15A) Alarm system, audio system, cigarette lighter, clock, entrance lamps, instrument panel |
| F30 | (10A) Daytime running lamps, headlamps, headlamp adjustment |
| F31 | (10A) Daytime running lamps, headlamps, headlamp adjustment |
| F32 | (15A) Fog lamps |
| F33 | (20A) Electric seats |
| F34 | (15A) Anti-lock brake system (ABS), heated windscreen washer jets, stop lamps |
Relay box diagram (Europe 1998-2003 LHD).
legend.
| 1 | Ignition main circuits relay |
| 2 | Headlamp low beam relay |
| 3 | Headlamp high beam relay |
| 4 | – |
| 5 | Ignition auxiliary circuits relay |
| 6 | Fuel pump relay |
| 7 | Engine control (EC) relay |
| 8 | Heated rear window relay |
| 9 | Interior lamp delay relay (with interior lamp delay) |
| 10 | Rear screen intermittent wiper relay (with intermittent wiper) |
| 11 | Windscreen wiper intermittent relay |
| 12 | Starter motor relay (AT/MT with PATS) |
| 13 | Horn relay |
| 14 | Headlamp washer pump delay relay |
| 15 | Daytime running lamps relay (headlamp low beam) |
| 16 | Fog lamps relay |
| 17 | Bridge |
| 18 | Bridge |
| 19 | Bridge |
| 20 | Alarm system flasher relay |
| 21 | Side lamps ‘on’warning buzzer |
| 22 | – |
| 23 | Wide open throttle (WOT) relay (petrol AC) |
| 24 | Rear fog lamp relay |
| 25 | Daytime running lamps relay (side lamps) |
| F35 | (20A) Alarm system, central locking, electric seats |
Fuse box diagram type 1 (Europe 1998-2003 RHD).
legend.
Fuse 1
Starter solenoid
30.0 A
Fuse 2
Heater blower
Air-conditioning compressor clutch solenoid
25.0 A
Fuse 3
Main light switch
15.0 A
Fuse 4
Right sidelight
10.0 A
Fuse 5
Left main beam
15.0 A
Fuse 6
Right main beam
15.0 A
Fuse 7
Left sidelight
Additional driving light
10.0 A
Fuse 8
EEC IV module
7.5 A
Fuse 9
ABS
Or
ESP control unit
20.0 A
Fuse 10
Headlight washers
30.0 A
Fuse 11
Airbag(s)
7.5 A
Fuse 12
Control lights
Main light switch
10.0 A
Fuse 13
Not used
15.0 A
Fuse 14
Fuel pump
15.0 A
Fuse 15
HEGO sensor (catalytic converter)
10.0 A
Fuse 16
Cold start valve
Engine management
20.0 A
Fuse 17
Heated seat(s)
15.0 A
Fuse 18
Supplementary radio equipment
15.0 A
Fuse 19
Front power windows and sunroof
30.0 A
Fuse 20
Cooling fan
30.0 A
Fuse 21
ABS module
7.5 A
Fuse 22
Ignition coil
20.0 A
Fuse 23
Rear power windows
25.0 A
Fuse 24
ABS
Or
ESP control unit
30.0 A
Fuse 25
Wiper motor
Windscreen washer(s)
20.0 A
Fuse 26
Direction indicators
Reversing light(s)
10.0 A
Fuse 27
Heated rear windscreen and mirrors
25.0 A
Fuse 28
Horn
Hazard warning lights
15.0 A
Fuse 29
Interior light(s)
Cigarette lighter
Radio
Clock
15.0 A
Fuse 30
Left dipped beam
10.0 A
Fuse 31
Right dipped beam
10.0 A
Fuse 32
Fog light(s)
15.0 A
Fuse 33
Electric seats
20.0 A
Fuse 34
Heated washer jets
Brake light(s)
15.0 A
Fuse box in engine compartment.
fuse box location.
fuse box diagram 1.8L engine (USA, Canada 1991-1995 LHD).
legend.
1 – 30 Amp FUEL INJ
Fuel Injection System
2 – 30 Amp HEAD
Headlights, High Beam Indicator, Foglights, Daytime Running
Lights (Canada)
3 – 80 Amp MAIN
Turn Signal Lights, Back-Up Lights, Cigarette Lighter, Power
Window Cluster, Shiftlock System, Moon Roof Motor
4 -60 Amp BTN
Taillights, Stoplights Belt & Hazard Lights, Door Lock Fuses,
Charging System
5 – 30 Amp
Horn (1994)
6 – 30 Amp COOLING FAN
Cooling Fan Motor (M/T)
6 – 40 Amp COOLING FAN
Cooling Fan Motor (A/T)
7 – 20 Amp AIR CON
A/C Magnetic Clutch (If Equipped)
8 – 10 Amp
Air Bag Dignostic Module (1994)
9 – 10 Amp ST SIGN
Circuit Relay, EGI Module, PCM (1993-94), Fuel Pump Relay
(1994)
10 -Empty
Fuse box diagram 1.9L engine (USA, Canada 1991-1995 LHD).
legend.
1 – 30 Amp FUEL INJ
Fuel Injection System
2 – 30 Amp HEAD
Headlights, High Beam Indicator, Fog lights, Daytime Running
Lights (Canada)
3 – 100 Amp MAIN
Charging System, (FAN, A/C, & BTN fuses), Ignition Switch
Wiper/Washer Motors, Audio System
4 -40 Amp BTN
(Tail lights, Stop lights Belt & Hazard Lights, Door Lock
Fuses, Charging System (1992-93)), (Interior Lights,
Transaxle, PCM, Exterior Lights, Horn, Power Door Locks,
Radio, Passive Restraint Control Module, Safety Belt warning
Chime (1994))
5 – 60 Amp
Anti-Lock Brake System (1994)
6 – 40 Amp COOLING FAN
Cooling Fan Motor
7 – 10 Amp AIR CON
A/C Magnetic Clutch (If Equipped), EEC Module
8 – 10 Amp
Air Bag Diagnostic Module (1994)
9 – Empty
10 – Empty
Fuse box diagram (USA, Canada 1994-1996 LHD).
| № | Amps | Description |
|---|---|---|
| 1 | 30A | Charging System (1.8L Engine), Fuel Injection System |
| 2 | 30A FL | Daytime Running Lamps (Canada), Fog Lamps, Headlamps, High Beam Indicator |
| 3 | 80A FL (1.8L) / 100A FL (1.9L) | Charging System, Engine Compartment Fuse Panel (ABS, A/C, BTN, Fan, Horn [1.8L Engine], Engine Controls, Instrument Cluster (Manual Transaxle Only), Instrument Panel Fuse Panel (Cigar, Defrost, Engine ABS, Heater, HEGO [1.9L Engine], Meter, Power Window, Radio, Rear Wiper, Sun Root), Starting System |
| 4 | 60A FL (1.8L) / 40A FL (1.9L) | Charging System (1.9L Engine), Instrument Panel Fuse Panel (Belt, Door Lock, Hazard, Room, Stop, Tail) |
| 5 | 30A (1.8L MTX) / 40A (1.9L, 1.8L ATX) | Cooling Fan System |
| 6 | 10A (1.9L) / 20A (1.8L) | Air Conditioner Magnet Clutch, Powertrain Control Module (1.9L engine) |
| 7 | 10A FL (1.8L) | Fuel Pump Relay, Powertrain Control Module |
| 7 | 20A (1.9L) | Fuel Pump |
| 8 | 60A (1.8L) | Anti-lock Brake System |
| 9 | 10A | Air Bag Diagnostic Module |
| 10 | 20A (1.8L) | Fuel pump |
| 10 | 10A (1.9L) | OBD-II (Data link connector) |
Fuse box in engine compartment, near the battery, (Europe 1996 – 1998).
legend.
Fuse A
Supply line to main fuse box
80.0 A
Fuse B
Supply line to main fuse box
60.0 A
Fuse C
Supply line to main fuse box
60.0 A
Fuse D
Not used
50.0 A
Fuse E
Heated windscreen
50.0 A
Fuse F
Cooling fan (50A also used)
40.0 A
Fuse box in engine compartment, near the battery, (Europe 1998 – 2003).
legend.
| F1 | (80A) Fuse box/relay plate – fascia 1 & 2 |
| F2 | (60A) Fuse box/relay plate – fascia 1 & 2 |
| F3 | (60A) Fuse box/relay plate – fascia 1 & 2 |
| F4 | (40A) Engine coolant blower motor relay – without AC |
| F5 | (50A) Heated windscreen |
| F6 | (50A) Glow plugs |
Fuse box diagram engine compartment (USA, Canada 1997-2003).
legend.
| Fuse/Relay Location | Fuse Amp Rating | Power Distribution Box Description |
|---|---|---|
| FUEL INJ. | 30A* | Air bags, Constant control relay module (PCM relay), Generator |
| DEFOG | 30A* | Rear window defrost |
| MAIN | 100A* | Overall circuit protection |
| BTN | 40A* | Hazard, Stop, Door lock, Tail, Room and Horn fuses of the I/P fuse panel |
| ABS | 60A* | Anti-lock Brake System (ABS) main relay |
| COOLING FAN | 40A* | Constant control relay module (cooling fan) |
| OBD-II | 10 A* | Data Link Connector (DLC), Instrument cluster |
| FUEL PUMP | 20A** | Constant control relay module (fuel pump) |
| HEAD RH | 10A** | Headlamps |
| HEAD LH | 10A** | Headlamps |
| * Fuse Link Cartridge **Fuse | ||
