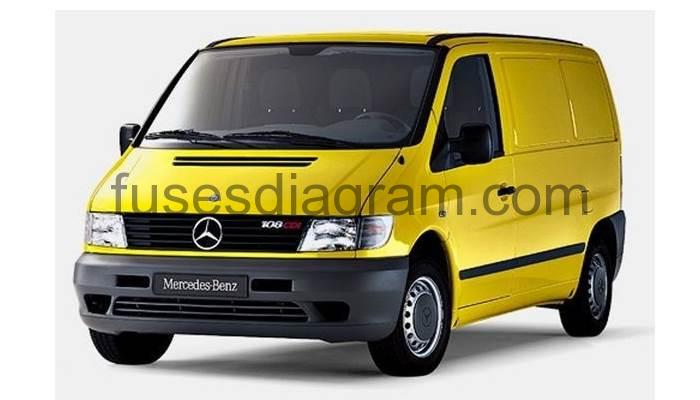

Fuses and Relay Mercedes Vito W638

For Mercedes Vito (W638) 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 model year.

Mercedes Vito (108 D, 108 CDI, 110 D, 110 CDI, V200 (113), V230 (114), V280, 112 CDI).

Cigarette lighter fuse (front) – Fuse box on the underside of the steering column – Fuse F8/20A

MENU

Fuse box on the underside of the steering column.

Fuse box under dashboard.

Fuse box under seat.

Relay box under seat.



Fuse box on the underside of the steering column.

fuse box location.



1 – closed

2 – open

fuse box diagram.



Assignment of the fuses.

FusesAmpsCircuits Protected
115ARight parking light
Right tail light
215ARight main beam
315ALeft main beam
415AReversing light
Horn
515ABrake lights
Heated washer jets
620AWiper motor
Direction indicators
715AInstrument panel
Diagnostic connector
820AInterior lights
Radio
Cigarette lighter
915AHazard warning lights
Instrument panel
1015AInstrument lighting
Number plate light(s)
1115ALeft parking light
Left tail light (not in combination with daylight running system)
1215ARight dipped beam (not in combination with daylight running system)
Rear fog light(s)
1315ALeft dipped beam (not in combination with daylight running system)
1415AFog lights
1515ARadio
Airbag
1610AABS/ABD control unit
1710AHeater system
1810AHeater system
R1Flasher relay
R2Wiper relay

Fuse box under dashboard.

legend.

FusesAmpsCircuits Protected
f17,5ACentral locking
f230ACentral locking, Sunroof, Power window
f330ACentral locking, Sunroof, Left front power window
f425ACentral locking
f510AInterior lighting
f620A12 volt socket
f77,5ATelephone
f820ACar alarm
f910ASupplementary heating
f1010ACar alarm
f117,5ACar alarm, Direction indicator
f1215ACar alarm, Direction indicator
f1315ACar alarm
f147,5ACar alarm
f157,5ACar alarm





Fuse box under seat.

fuse box diagram (type 1).

legend.

FusesAmpsCircuits Protected
f17,5АABS ECU, Air suspension, 7.5A
f225АRear window wiper relay, 25A
f37,5ARadiator fan, 7.5A
f425ARadiator fan, 25A
f525AABS ECU, 25A
f610AAutomatic transmission ECU, 10A
f730AHeater blower, 30A
f820AHeadlight washer pump, 20A
f97,5AFuel fired independent heater, 7.5A
f1025ATrailer socket, Refrigerator, 25A
f1130ARear window wiper relay, Direction indicator, 30A
f1210AA/C ECU, 10A
f1330AAir suspension, 30A
f147,5AFuel fired independent heater, Air suspension, Tachograph, 7.5A
f157,5ACommunication system, 7.5A
f1615AA/C ECU, 15A
f1715AAutomatic transmission ECU, Automatic transmission, 15A
f1810ACar alarm, Telephone, Power mirrors, 10A
f1915ARadiator fan, Crankcase ventilation heater, Relay, 15A
f2015ALambda sensor, Camshaft sensor, Throttle body, 15A
f2115AAir flow meter, Crankcase ventilation heater, Ignition coil, Lambda sensor, EGR valve, 15A
f2220AFuel pump, Fuel injectors, 20A
f237,5AEngine management (diesel), 7.5A
f2425AEngine management (diesel), 25A
f2510AFuel fired independent heater, 10A
f2625ASupplementary heating, 25A
f2725ASupplementary heating, 25A
f2815AFog light, 15A
f2910ADaytime running lights, 10A
f3010ADaytime running lights, 10A
f3110AInterior lighting, 10A
f3230ASeat heating, left, Power seat driver side, 30A
f3325ASeat heating, right, Power seat passenger side, 25A
f347,5A
f357,5A
f3615A
M140ARadiator fan, 40A
M260AABS ECU, 60A
М350AAir pump, 40A
М440A





Fuse box diagram (under seat type 2).

legend.

FusesCircuits Protected
f1ABS ECU, Air suspension, 10A
f2EGR valve, Idle speed motor, Fuel injection, 15A
f3Radiator fan, 7.5A
f4Seat belt warning system, 15A
f5Fuel injectors, Ignition coils, 20A
f6Automatic transmission ECU, Immobilizer, 10A
f7Air suspension, 15A
f8Seat belt tensioner, 10A
f9Airbag warning lamp, 7.5A
f10Trailer socket, Refrigerator, 25A
f11Rear window wiper relay, 30A
f12ABS ECU, 25A
f13Air suspension, 30A
f14Air suspension ECU, Auxiliary heater ECU, Tachograph, 7.5A
f15Radio, 7.5A
f16Auxiliary heater 1, A/C compressor relay, 15A
f17Automatic transmission ECU, A/C, 15A
f18Car alarm, Telephone, Power window, 10A
f19Daytime running lights, 10A
f20Daytime running lights, 10A
f21Relay, 10A
f22Heater blower, 40A
f23Rear window wiper relay, Rear window wiper, Seat heating, right, 25A
f24Seat heating, left, 30A
f25Supplementary heating, Fuel fired independent heater, 10A
f26Headlight washer pump, 20A
f27Supplementary heating, Radiator fan, 25A
f28Not used
f29Not used
f30Not used
f31Not used
f32Not used
f33Not used
f34Not used
f35Not used
f36Not used
M1Radiator fan, 40/60A
M2ABS ECU, 50A
М3Not used
М4Not used



Relay box under seat.

legend.

RelaysCircuits Protected
(1) K12Front fog light relay
(2) K12Front fog light relay
(3) V8Auxiliary heater
(4) V10Car alarm
(5) V9Car alarm
(6) K19Independent heater relay
(7) K04Engine management relay
(8) K36Headlight washer pump relay
(9) K17-2Daytime running light relay – 2
(10) K17Daytime running light relay
(11) K05Starter lock relay
(12) K12Front fog light relay
(13) K69Main relay
(14) K00Occupant weight sensor
(15) K00Air suspension
(16) K16Parking light relay
(17) K27Terminal 15a relay
(18) K02Horn relay
(19) K76Relay for coolant circulation pump
(20) K49Fuel pump relay
(21) K26Terminal 15 relay
(22) K02
(23) K76Relay for coolant circulation pump
