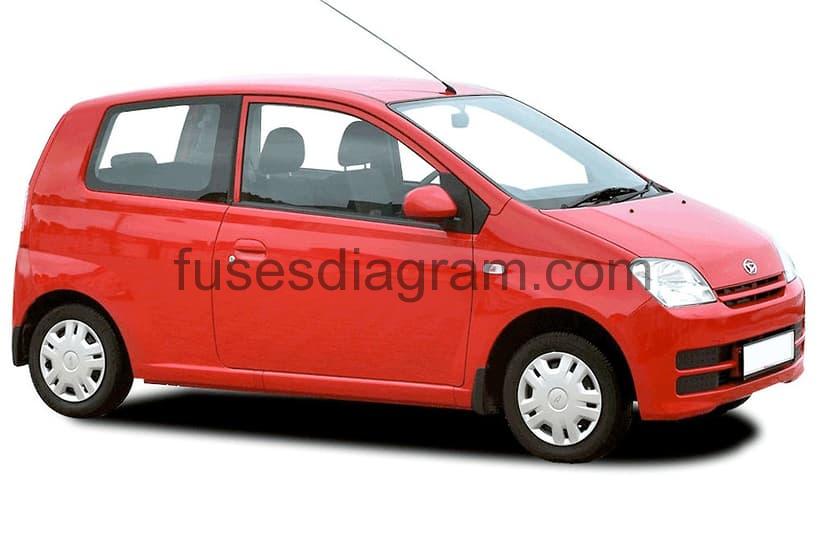

For Daihatsu Charade 2003, 2004, 2005, 2006 2007 model year.
| Cigarette lighter fuse – fuse box in passenger compartment – Fuse F13/15A |
Fuse box in passenger compartment.
fuse box location.
fuse box diagram.
Assignment of the fuses.
| 1 | Starter motor relay |
| 2 | Indicator relay |
| 3 | Ignition main circuits relay |
| 4 | Engine control (EC) relay |
| 5 | Horn relay |
| 6 | Fuel pump (FP) relay |
| F1 | (7,5A) Starter motor |
| F2 | (15A) Central locking system |
| F3 | (30A) Heater blower motor |
| F4 | (10A) Hazard warning lamps |
| F5 | (20A) Windscreen wash/wipe system |
| F6 | (30A) Electric windows |
| F7 | (10A) Engine management system |
| F8 | (10A) Engine control module (ECM) |
| F9 | (15A) Heated rear window |
| F10 | (7,5A) Reversing lamp(s) |
| F11 | (7,5A) |
| F12 | (7,5A) |
| F13 | (15A) Cigarette lighter |
Fuse box in engine compartment.
fuse box location.
fuse box diagram.
legend.
| 1 | Engine coolant blower motor relay |
| 2 | Headlamp relay |
| 3 | AC compressor clutch relay |
| F1 | (50A) Electric power steering |
| F2 | (30A) Engine coolant blower motor |
| F3 | (40A) |
| F4 | (30A) Electric windows |
| F5 | (7,5A) Tail lamps |
| F6 | (10A) LH headlamp |
| F7 | (10A) RH headlamp |
| F8 | (30A) Ignition main circuits |
| F9 | (15A) Engine management system |
| F10 | (10A) |
| F11 | (10A) Horn(s) |
| F12 | (15A) Stop lamps |
| F13 | (15A) Engine management system |
| F14 | (7,5A) AC system |
