For Dodge Ram Van 1990, 1991, 1992, 1993, 1994 model year.

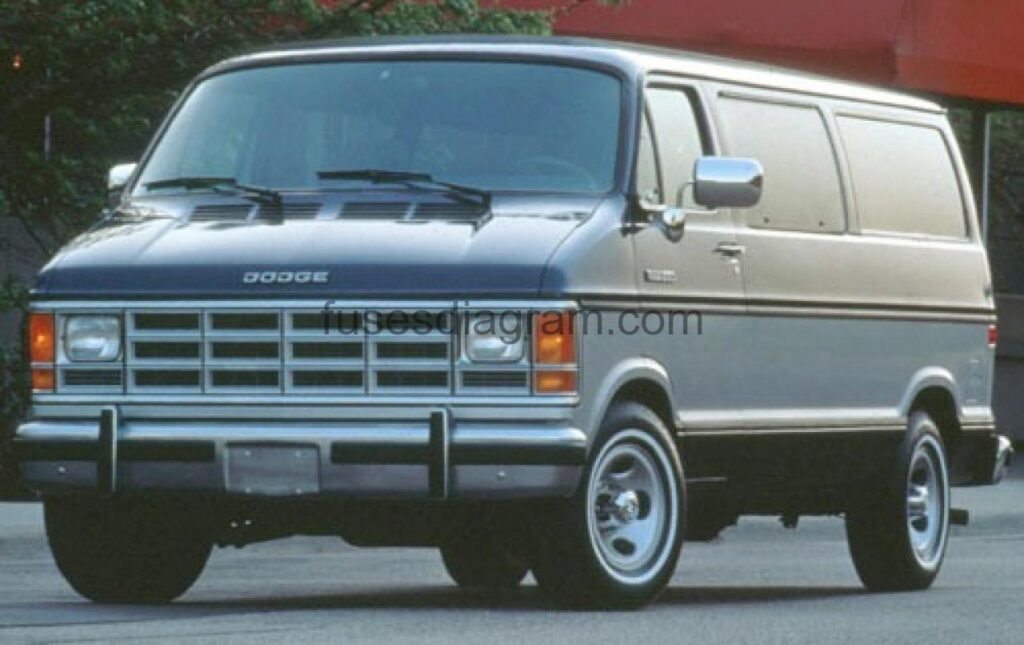

Dodge Ram Van (B150, B250, B350)
Cigarette lighter fuse – Fuse box in passenger compartment – Fuse №7/25A) |
Fuse box is located underneath glove compartment door.
Fuse box diagram.
Assignment of the fuses (1990).
| Fuses | Amps | Circuits protected |
|---|---|---|
| 1 | 20A | Hazard Flasher |
| 2 | 20A | Back-Up Lights, A/C Fan & Clutch Relay, Heated Rear Window Switch, Rear Seat Heater & A/C, Overhead Console. |
| 3 | 30A | Power Window & Sun Roof Motors, Power Vent Windows. |
| 4 | 30A | A/C-Heater Blower Motor. |
| 5 | 20A | Taillights, Park Lights, Side Marker & License Lights, Clock & Radio Display Intensity. |
| 6 | 20A | Stoplights, Chimes. |
| 7 | 25A | Horns, Cigarette Lighter, Speaker Amp. |
| 8 | 30A | Power Door Locks, Power Seats & Mirrors. |
| 9 | 10A | Radio & Clock Display. |
| 10 | 20A | Turn Signal Lights, Van Conversion Relay. |
| 11 | 20A | Windshield Wiper & Washers. |
| 12 | 4A | Cluster, A/C-Heater Control, Switch Indicator Light, Ashtray Light, Radio Illumination, Overhead Console Lights, Rear Seat Heater, A/C Switch Lights. |
| 13 | 5A | Gauges, Warning Lights & Modules, Speed Control. |
| 14 | 20A | Rear Wash Wipe, Liftgate Release, Liftgate Interlock, Electronic Module (M/T). |
| 15 | 10A | Under Seat Storage Light, Lower Console, Dome & Cargo Lights, Ignition Switch Light, Headlight Switch Light, Courtesy & Vanity Mirror Lights, Reading & Console Lights, Radio Memory. |
| 16 | 25A | Power vent windows |
| 17 | Flasher | Turn Signal. |
| 18 | Ignition Light Time-Delay. | |
| 19 | Horn. | |
| 20 | Circuit Breaker No additional definition. |
Buzzers, relays & timers location.
| Component | Location |
|---|---|
| Auto Shutdown Relay | On left inner fender well, below 50-pin bulkhead connector |
| A/C Cut-Out Relay | On firewall, to left of voltage regulator. See Fig. 1 . |
| Fuel Pump Relay | On firewall, behind brake booster. See Fig. 1 . |
| Hazard Flasher Relay | On lower right side bracket, on fuse block. |
| Headlight/Key/Seat Belt Buzzer | Behind dash, on bracket above steering column. |
| Heated Rear Window Relay | On bracket, at lower right corner of instrument cluster. |
| Horn Relay | Under dash, just below speedometer head. |
| Ignition Light Time Delay Relay | Behind dash, above instrument cluster. |
| Part Throttle Unlock Relay | On firewall, left of fuel pump relay. See Fig. 1 . |
| Power Door Lock Relay | On steering column support bracket. See Fig. 2 . |
| Power Window Safety Relay | On steering column support bracket. |
| Starter Relay | On firewall, to right of brake booster. See Fig. 1 . |
| Turn Signal Flasher Relay | On upper right side bracket, on fuse block. |
