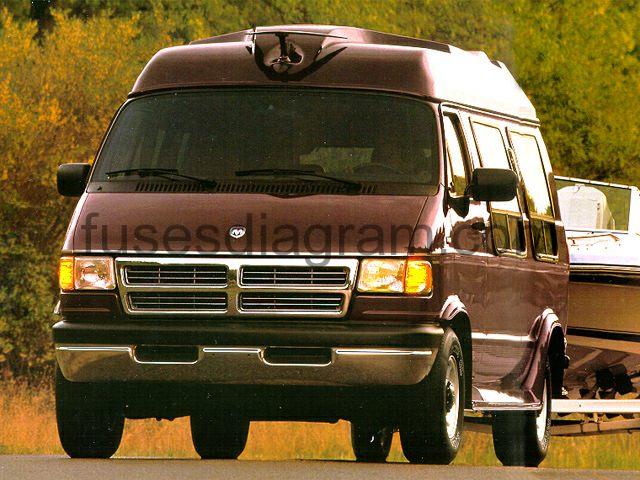

For Dodge Ram Van 1998-1999 model year.
Dodge Ram Van/Wagon (B1500, B2500, B3500)
Cigarette lighter fuse – Fuse box in passenger compartment – Fuse №15/15A) |
MENU
Fuse box in engine compartment
Fuse box in pasenger compartment
Buzzers, relays & timers location
Fuse box in engine compartment.
The power distribution center is located under the hood near the battery.
fuse box digram.
Assignment of the fuses (1998-1999).
| Fuse (Amp) | Application |
|---|---|
| 1 (140) | Generator |
| 1/2 (30) | Van Conversion Provision & Power Outlet |
| 3 (40) | Controller Anti-Lock Brake |
| 4 (50) | HVAC, Ign. Run Relay & Blower Motor |
| 5 (20) | A/C Compressor Clutch Relay & Engine Starter Motor Relay |
| 6 (40) | Rear Window Defogger Switch |
| 7 (40) | Rear A/C Heater Unit |
| 8 (30) | Daytime Running Lamp Module, Headlamp Switch & Headlamp Relay |
| 9/10 (40) | Van Conversion Accessary Power Relay |
| 11 (20) | Junction Block |
| 12 (40) | Ignition Switch |
| 13 (20) | Brake Lamp Switch |
| 14 (40) | Junction Block |
| 15 (20) | Fuel Pump Relay |
| 16 (40) | Ignition Switch |
| 17/18 (20) | Transmission Control Relay & Powertrain Control Module |
| 19/20 (10) | Oxygen Sensors, Fuel Injectors No. 1-8 & Ignition Coil |
Fuse box in pasenger compartment.
The junction block is located behind the access door on the left end of the instrument panel support.
fuse box diagram.
Assignment of the fuses (1998-1999).
| Fuse (Amp) | Application |
|---|---|
| 1 (20) | Horn Relay |
| 2 (10) | Blend Door Actuator, A/C Heater Control, A/C Cycling Switch, A/C Compressor Clutch Relay, HVAC Ignition Run Relay & High Blower Relay |
| 3 (10) | Controller Anti-Lock Brake |
| 4 (20) | Central Timer Module, Power Door Lock Module & Driver/Passenger Door Lock Switch |
| 5 (5) | Radio, Instrument Cluster, Rear A/C Heater Control & A/C Heater Control |
| 6 (20) | Intermittent Wiper Control Module, Wiper Relay, Wiper/Washer Switch & Intermittent Wiper Motor |
| 7 (10) | Rear Window Defogger Switch & Rear A/C Heater Unit |
| 8 (15) | Radio |
| 9 (10) | Fuel Pump Relay, Automatic Shut Down Relay, Powertrain Control Module & Torque Converter Clutch Solenoid |
| 10 (15) | Combination Flasher |
| 11 (10) | Instrument Cluster |
| 12 (15) | Underhood Lamp, Radio, Power Mirror Switch, Instrument Cluster, Glove Box Lamp & Dome Lamp Switch |
| 13 (20) | Headlamp Switch & Chime/Buzzer Module |
| 14 (20) | Data Link Connector, Power Amplifier & Courtesy Lamp Relay |
| 15 (15) | Cigar Lighter & Van Conversion Accessary Power Relay |
| 16 (5) | Central Timer Module |
| 17 (10) | Chime/Buzzer Module, Duty Cycle Evap/Purge Solenoid, Park/Neutral Position Switch, Daytime Running Lamp Module & Central Timer Module |
| 18 (10) | Airbag Control Module |
| 19 (10) | Passenger Airbag On/Off Switch & Airbag Control Module |
Buzzers, relays & timers location.
| Component | Component Location |
|---|---|
| A/C Compressor Clutch Relay | In power distribution center. |
| Automatic Shut Down Relay | In power distribution center. |
| Central Timer Module | Behind dash, on left center dash panel support. |
| Chime/Buzzer Module | On left center dash panel support, in wire harness connector. |
| Combination Flasher | On junction block. |
| Courtesy Lamp Relay | Behind left center of dash, on wiring trough. |
| Engine Starter Motor Relay | In power distribution center. |
| Fuel Pump Relay | In power distribution center. |
| Headlamp Relay | Behind left side of dash, behind headlamp switch. |
| High Blower Relay | In engine compartment, on heater-A/C housing top cover. See Fig. 5 . |
| Horn Relay | On junction block. |
| HVAC Ignition Run Relay | In power distribution center. |
| Transmission Relay | In power distribution center. |
| Van Conversion Accessory Power Relay | Near rear of headlamp switch. |
| Wiper Relay | Behind glove box, taped to wire harness. |
