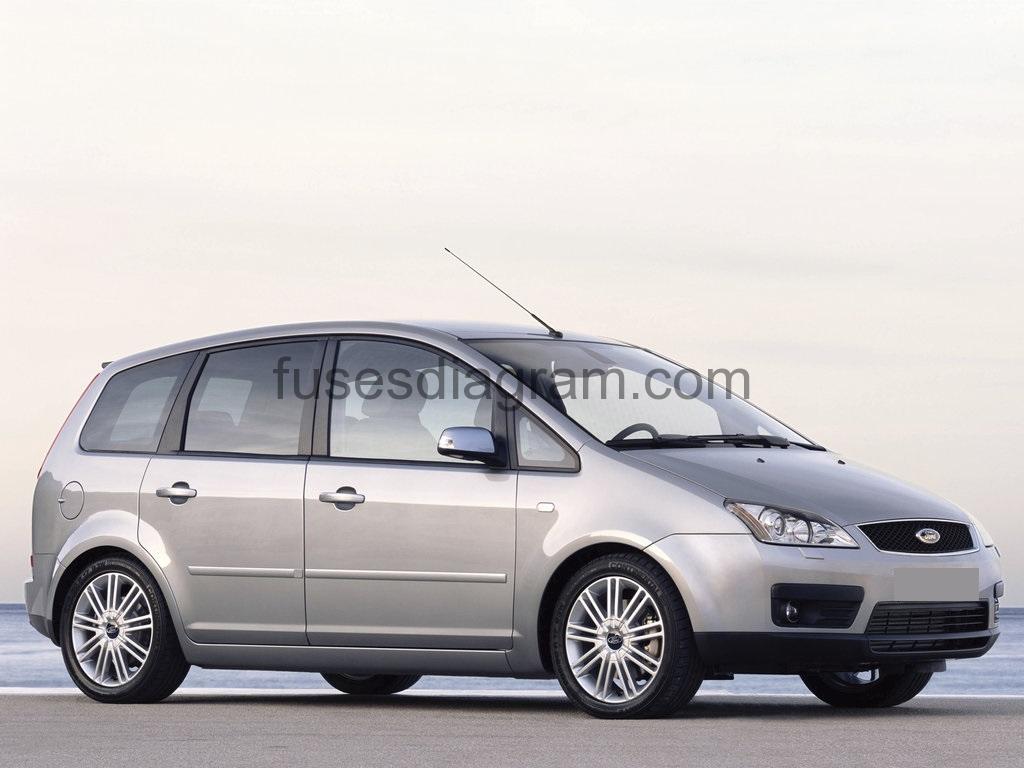

For Ford C-MAX (22), Ford Focus C-MAX 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 model year.
Cigarette lighter fuse – fuse box in passenger compartment – Fuse F39/20A (2003-2007) Cigarette lighter fuse – fuse box in passenger compartment – Fuse F109/20A (2007-2011) |
MENU
Fuse box in passenger compartment.
Fuse box in engine compartment.
Fuse box in passenger compartment.
fuse box location.
This is located behind the glove compartment in the instrument panel.
To gain access to the fuse box:
• Remove the screws in the instrument panel trim underneath the glove compartment and let the trim panel drop down.
• Loosen the quick fix screws on the fuse box.
• Let the fuse box down and pull it towards you.
• Hang the fuse box in the front fixture of the bracket.
Reinstall in the reverse order.
Assignment of the fuses.
R1 | – |
R2 | – |
R3 | Daytime running lamps relay |
R4 | Heated rear window relay |
R5 | Fuel pump (FP) relay |
F37 | (10A) LH headlamp |
F38 | (10A) RH headlamp |
F39 | (20A) Cigarette lighter |
F40 | (20A) Sunroof |
F41 | (20A) Door function control module, passenger |
F42 | (7,5A) Electric door mirrors |
F43 | (10A) Fuel additive control module, heater function control module, keyless entry control module, steering column adjustment module |
F44 | (10A) Data link connector (DLC) |
F45 | (10A) Ignition switch, lightswitch |
F46 | (10A) Instrument panel |
F47 | (15A) Windscreen washer jet heaters |
F48 | (20A) Daytime running lamps |
F49 | (15A) Light switch |
F50 | (20A) Windscreen wipers – low speed |
F51 | (15A) Fuel pump (FP) relay |
F52 | (25A) Heated rear window |
F53 | (7,5A) LH tail lamp |
F54 | (7,5A) RH tail lamp |
F55 | (20A) Door function control module, driver |
F56 | (20A) Keyless entry control module |
F57 | (10A) Door mirror retract control module |
F58 | (15A) Alarm system, navigation system |
F59 | (20A) Trailer control module |
F60 | (15A) RH headlamp |
F61 | (15A) LH headlamp |
F62 | (20A) Electric seats |
F63 | (25A) Electric door mirrors, electric windows |
F64 | – |
F65 | (10A) Supplementary restraint system (SRS) |
F66 | (7,5A) Gas discharge headlamp control module, lightswitch |
F67 | (10A) Alarm system, instrument panel |
F68 | (7,5A) Alarm system, audio system, instrument panel, navigation system |
F69 | (20A) Light switch |
F70 | (10A) Fuel additive control module, hazard warning lamps, heated rear window, heated seats, heated windscreen, heater function control module, parking aid control module, sunroof |
F71 | (10A) Lightswitch |
F72 | (25A) Multifunction control module |
F73 | (7,5A) Licence plate lamps |
F74 | (15A) Stop lamps |
F75 | (10A) Engine management |
F76 | (7,5A) Parking brake control module |
F77 | (25A) Central locking |
F78 | (15A) Rear screen wash/wipe system |
F79 | (15A) Auxiliary power socket |
F80 | (10A) Battery saver relay |
F81 | (20A) Door function control module, right rear |
F82 | (20A) Door function control module, left rear |
F83 | (10A) Audio system – rear |
F84 | (10A) Electric windows, reversing lamps |
F85 | (10A) Coolbox control module |
F86 | (20A) Heated seats |
fuse box diagram(2007-2011 type 1)
legend.
№ | Amp | Description |
---|---|---|
100 | 10A | Electronic modules ignition supply |
101 | 20A | Electric sunroof control module, driver’s electric seat, |
102 | 10A | Heater control, steering column, diesel particulate filter, remote control receiver |
103 | 10A | Lighting control battery supply |
104 | 10A | Battery saver, interior lamps |
105 | 25A | Heated rear window |
106 | 20A | Keyless system |
107 | 10A | Instrument cluster battery supply, on-board diagnostics |
108 | 7.5A | Accessory to cluster (audio and navigation unit) |
109 | 20A | Cigar lighter, rear auxiliary power socket |
110 | 10A | Daytime running lamps ignition supply to lighting control switch |
111 | 15A | Fuel pump (petrol engine only) |
112 | 15A | Audio modules battery supply |
113 | 10A | Daytime running lamps (parking lamps) |
114 | 10A | Instrument cluster ignition supply, engine immobiliser |
115 | 7.5A | Lighting control ignition supply |
116 | 20A | Fog lamps |
117 | 7.5A | Number plate lamps |
118 | 20A | Door module, left-hand rear |
119 | 15A | Luggage compartment auxiliary power socket |
119 | 25A | Luggage compartment auxiliary power socket (vehicles with trailer tow module) |
120 | 20A | Door module, right-hand rear |
121 | 20A | Heated front seats |
122 | 10A | Airbag module |
123 | 7.5A | Heated exterior mirrors |
124 | 7.5A | Parking lamps, side lamps, tail lamps (left-hand side) |
125 | 7.5A | Parking lamps, side lamps, tail lamps (right-hand side) |
126 | 20A | Keyless system |
127 | 25A | Electric windows |
128 | – | Not used |
129 | 20A | Windscreen wipers |
130 | – | Not used |
131 | 15A | Rear window wiper |
132 | 15A | Brake lamps |
133 | 25 | Central locking relays, passenger door module |
134 | 20A | Central locking, driver door module |
135 | 20A | Daytime running lamps |
136 | 15A | Washer pump, heated washer jets |
137 | 10A | Battery backup sounder |
138 | 10A | Powertrain control module, accelerator pedal, automatic transmission |
139 | 10A | Main beam right-hand side |
140 | 10A | Main beam left-hand side |
141 | 10A | Reversing lamp, electric mirrors |
142 | 15A | Dipped beam, right-hand side |
143 | 15A | Dipped beam, left-hand side |
Fuse box diagram (2007-2011 type 2).
legend.
Fuses | Amps | Circuits Protected |
---|---|---|
1 | 10A | Automatic transmission Heating and ventilation Air conditioning Instrument panel Instrument panel lighting Parking assistance Exterior lights Seats Power windows Front and rear wipers and washers Roof control panel: sliding roof Parking assistance control unit Flexible fuel module Heater control unit Heated rear windscreen switch Heated windscreen switch Automatic transmission shift lever Transmission position switch Heated front seat(s) switch PTC heater Power inverter Rain and light sensor Sliding roof switch Video system |
2 | 20A | Seats Roof control panel: sliding roof Convertible roof Driver’s seat adjustment switch Convertible roof control unit |
3 | 10A | Starting system Additional heater Air conditioning Heater control unit Keyless entry control unit Fuel additive control unit Steering column control(s) Electronic automatic temperature control (EATC) Remote control unit Video system |
4 | 10A | Parking assistance Instrument panel Roof control panel: sliding roof Daylight running system Headlight switch |
5 | 10A | Interior lights Battery saver Rear-view mirror |
6 | 25A | Power windows |
7 | 10A | Engine control system Heating and ventilation |
8 | 10A | Instrument panel Communication network Data link connector Security system |
9 | 7.5A | Starting system Air conditioning Instrument panel Clock Audio unit Security system Navigation system Radio Additional instrument panel Touchscreen |
10 | 20A | Rear power point Instrument panel Front cigarette lighter Rear cigarette lighter |
11 | 10A | Exterior lights Daylight running system Headlight switch |
12 | 15A | Multifunction control unit Fuel pump relay Engine control system |
13 | 15A | Air conditioning Clock Audio unit Navigation system Telephone CD changer Radio Telephone control unit Touchscreen |
14 | 10A | Exterior lights Daylight running system Headlight switch Ignition 2 relay Ignition switch |
15 | 10A | Security system Instrument panel Exterior lights Multifunction control unit Daylight running system Transponder antenna |
16 | 7.5A | Instrument panel lighting Exterior lights Daylight running system Front and rear wipers and washers |
17 | 20A | Exterior lights Headlight switch Instrument panel |
18 | 7.5A | Exterior lights Daylight running system Number plate lights |
19 | 20A | Power windows Instrument panel lighting Passenger’s power window switch Driver’s power window switch Electric mirror switch |
20 | 25A | Trailer control unit Exterior lights Instrument panel Power point Reversing light relay, trailer (15A also used) |
21 | 20A | Instrument panel lighting Power windows Keyless entry control unit Door control unit, rear right Rear right power window |
22 | 20A | Seats Heated driver’s seat control unit Heated passenger’s seat control unit |
23 | 10A | Supplemental restraint system (SRS) Restraint control unit (RCM) Passenger’s side airbag deactivation light Exterior lights Parking assistance |
24 | 7.5A | Rear-view mirror Power windows Electric rear-view mirror |
25 | 7.5A | Exterior lights Daylight running system Left headlight Trailer connector socket Rear left light Left tail light |
26 | 7.5A | Exterior lights Daylight running system Trailer connector socket Right headlight Rear right light Right tail light |
27 | 20A | Starting system Keyless entry control unit Remote keyless entry control unit |
28 | 25A | Power windows Instrument panel lighting Passenger’s power window switch Driver’s power window switch Electric mirror switch |
29 | Not used | |
30 | 20A | Front and rear wipers and washers Wiper relay |
31 | Not used | |
32 | 15A | Front and rear wipers and washers Rear wiper motor Rear wiper relay |
33 | 15A | ABS or ESP Automatic transmission Exterior lights Brake light switch |
34 | 25A | Rear-view mirror Instrument panel lighting Keyless entry control unit Exterior lights Interior lights Power windows Passenger’s door control unit Door unlock relay Driver’s door control unit Door lock relay Double locking relay |
35 | 20A | Rear-view mirror Instrument panel lighting Keyless entry control unit Exterior lights Interior lights Power windows Driver’s door unlock relay Driver’s door control unit Double locking relay |
36 | 20A | Exterior lights Fuse and relay box in passenger compartment, relay R2 Dipped beam relay Daylight running system |
37 | 15A | Front and rear wipers and washers Heated washer jets |
38 | 10A | Battery backed-up sounder (BBUS) Electric mirror module Rear-view mirror Security system |
39 | 10A | Engine control system Keyless entry control unit Accelerator pedal position sensor Powertrain control unit (PCM) Starting system |
40 | 10A | Exterior lights Daylight running system Right headlight |
41 | 10A | Exterior lights Daylight running system Left headlight |
42 | 10A | Exterior lights Rear-view mirror Driver’s power window switch Electric mirror switch Reversing light relay or not used |
43 | 15A | Exterior lights Daylight running system Right headlight |
44 | 15A | Exterior lights Daylight running system Left headlight |
R1 | Engine control system relay Fuel pump | |
R2 | Daylight running system relay |
Fuse box in engine compartment.
fuse box location.
fuse box diagram.
legend.
R1 | Starter motor inhibitor switch relay |
R2 | Horn relay |
R3 | Reversing lamp relay |
R4 | – |
R5 | Exhaust gas recirculation (EGR) relay – petrol |
R6 | – |
R7 | Heated windscreen relay |
R8 | Ignition main circuits relay |
R9 | Headlamp washer pump relay |
R10 | Heater blower relay |
R11 | Wide open throttle (WOT) relay – AC |
R12 | Engine coolant blower motor relay |
R13 | Starter motor relay |
R14 | Engine control (EC) relay |
FL1 | (40A/50A/60A) Engine coolant blower motor control module |
FL2 | (80A) Power steering |
FL3 | (60A) Fascia fuse box/relay plate F41-F56/F59/F72/F77, headlamps, windscreen wipers |
FL4 | (60A) Fascia fuse box/relay plateF39-F40/F52/F57-F58/F62/F78-F83 |
FL5 | (80A) Auxiliary heater 1 |
FL6 | (60A) Glow plug control module |
F7 | (30A) Anti-lock brake system (ABS) |
F8 | (20A) Anti-lock brake system (ABS) |
F9 | (20A) Engine management Powertrain control module |
F10 | (30A) Heater/air conditioning (AC) Climate control blower |
F11 | (20A) Ignition switch |
F12 | (40A) Ignition main circuits relay |
F13 | (20A) Starter motor relay |
F14 | (40A) Heated windscreen |
F15 | (30A) Engine coolant blower motor relay |
F16 | (40A) Heated windscreen |
F17 | (30A) Parking brake control module |
F18 | Power inverter |
F19 | (10A) Anti-lock brake system (ABS) |
F20 | (15A) Horn |
F21 | (20A) Auxiliary heater 2 |
F22 | (10A) Power steering |
F23 | (30A) Headlamp washers |
F24 | (15A) Fuel heater |
F25 | (10A) Fuel heater, headlamp washers, heated windscreen, reversing lamps |
F26 | (10A) Transmission control module (TCM) |
F27 | (10A) Wide open throttle (WOT) relay – AC |
F28 | Glow plug monitoring (diesel only) |
F29 | Dual zone climate control |
F30 | (3A) Engine management Powertrain control module, automatic transmission |
F31 | (10A) Alternator Battery sensor smart charging |
F32 | (10A) Exhaust gas recirculation (EGR) relay Automatic transmission |
F33 | Heated oxygen sensors (petrol only Intercooler bypass valve (diesel only) |
F34 | (10A) Engine management Injectors, ignition transformers |
F35 | (10A) Engine management Powertrain control module, valves, solenoids |
F36 | (10A) Engine management Powertrain control module |
