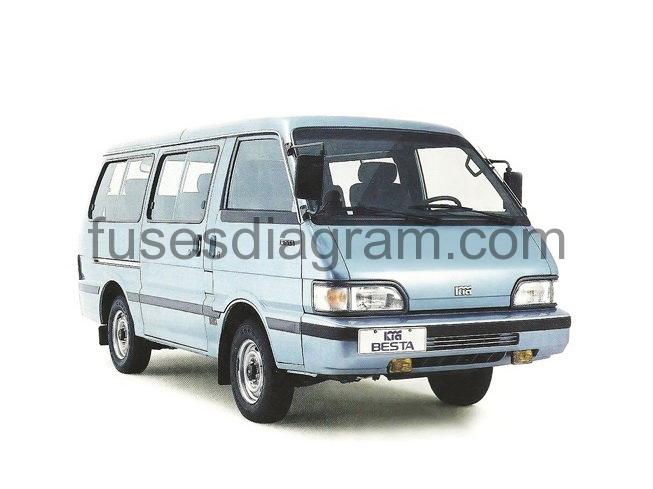

For Kia Besta 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 model year.
Cigarette lighter fuse (front) – Fuse box in passenger compartment – Fuse F8/15A |
Fuse box in passenger compartment.
fuse box location.
fuse box diagram.
Assignment of the fuses.
| Fuses | Amps | Circuits Protected |
|---|---|---|
| 1 | 20A | Front blower |
| 2 | 15A | Windscreen wash/wipe system |
| 3 | 15A | Rear blower |
| 4 | 30A | Power windows |
| 5 | 10A | Brake lights Horn |
| 6 | 10A | Interior light(s) |
| 7 | 20A | Central locking |
| 8 | 15A | Cigarette lighter |
| 9 | 15A | Air conditioning |
| 10 | 15A | Ignition system, petrol |
| 11 | 10A | Meter Direction indicators |
| 12 | 20A | Heated rear windscreen |
| 13 | 10A | Tail light(s) |
| 14 | 10A | Fog light(s) |
| 15 | Spare fuse | |
| 16 | Spare fuse | |
| 17 | Spare fuse | |
| 18 | Spare fuse | |
| 19 | 10A | Cooling fan |
| 20 | 30A | Warning lights Siren (ambulance) |
Fuse box in engine compartment, near the battery.
Fuse FL1
BTN
Fuse FL2
Main fuse
Fuse FL3
Headlights
Fuse FL4
Glow plug system
