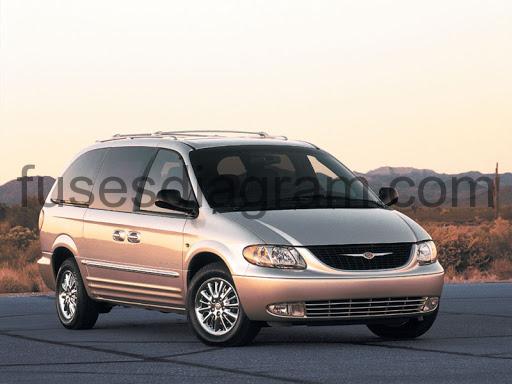

For Chrysler Voyager 2001, 2002, 2003, 2004, 2005, 2006, 2007 model year.
Chrysler Grand Voyager.
Cigarette lighter fuse – Fuse box in engine compartment – Fuse №8/20A |
Fuse box in passenger compartment.
fuse box diagram.
Assignment of the fuses
| Fuses | Amps | Circuits Protected |
|---|---|---|
| fuse1 | 10A | Body control unit |
| fuse 2 | 10A | Instrument panel Transmission control unit |
| fuse 3 | 15A | Washer module Direction indicators Front right parking light/direction indicator |
| fuse 4 | 15A | Fog lights |
| fuse 5 | 15A | Washer module Front left parking light/direction indicator Number plate light(s) Headlight switch |
| fuse 6 | 20A | Message centre Air-conditioning heater control Rear wiper motor |
| fuse 7 | 10A | Electric mirrors |
| fuse 8 | 10A | Speaker relay |
| fuse 9 | 15A | Electric wiper de-icer |
| fuse 10 | 10A | Radio |
| fuse 11 | 20A | Rear air-conditioning heater |
| fuse 12 | 10A | Heated rear windscreen relay Electric rear-view mirror Flasher unit Daylight running system |
| R1 | Door unlock relay | |
| R2 | Door lock relay | |
| R3 | Daylight running system Flasher unit | |
| R4 | Driver’s door unlock relay | |
| R5 | Washer module | |
| R6 | Electric mirror fold relay | |
| R7 | Electric mirror unfold relay | |
| R8 | Heated rear windscreen relay | |
| R9 | Speaker relay | |
| R10 | Fog light relay | |
| R11 | Courtesy light(s) relay | |
| 1 | 9A | Fuel pump relay Spare relay Air-conditioning compressor clutch relay Powertrain control unit (PCM) Exhaust gas recirculation solenoid Evaporative purge solenoid Fuse box in engine compartment, fuse 27 |
| 2 | ||
| 3 | 9A | Tailgate lock motor Sliding door contact, rear left |
| 4 | ||
| 5 | ||
| 6 | ||
| 7 | 9A | Front and rear washer pumps Accessory socket relay |
| 8 | 9A | Switch, left power window |
| 9 | 9A | Switch, left power window Switch, right power window |
| 10 |
Fuse box in engine comparment.
legend.
Fuse 1
Airbag control unit
10.0 A
Fuse 2
Airbag control unit
10.0 A
Fuse 3
Spare fuse
Fuse 4
Left main beam
Left headlights
10.0 A
Fuse 5
Right main beam
Right headlights
10.0 A
Fuse 6
Fog light relay
Left dipped beam
20.0 A
Fuse 7
Right dipped beam
Right headlights
15.0 A
Fuse 8
Cigarette lighter
20.0 A
Fuse 9
Horn
Horn relay
20.0 A
Fuse 10
Fuse box in passenger compartment
20.0 A
Fuse 11
Air-conditioning compressor clutch relay
15.0 A
Fuse 12
ABS control unit
25.0 A
Fuse 13
Brake light switch
20.0 A
Fuse 14
Spare fuse/relay
Fuse 15
Transmission control relay
20.0 A
Fuse 16
Fuel pump relay
Powertrain control unit (PCM)
20.0 A
Fuse 17
Automatic shutdown relay
20.0 A
Fuse 18
Electric mirrors
Fuse box in passenger compartment
15.0 A
Fuse 19
Wiper relay
30.0 A
Fuse 20
Not used
Fuse 21
Front blower motor relay
40.0 A
Fuse 22
Parking light relay
40.0 A
Fuse 23
Ignition switch
Starter motor relay
40.0 A
Fuse 24
Cooling fan 1 relay
Cooling fan 2 relay
40.0 A
Fuse 25
ABS control unit
40.0 A
Fuse 26
Central locking
Fuse box in passenger compartment
40.0 A
Fuse 27
Heated rear windscreen
Fuse box in passenger compartment
40.0 A
Fuse 28
Memory seats
Electric mirror module
Fuse box in passenger compartment
10.0 A
Relay R1
Cigarette lighter relay
Accessory socket
Relay R2
Wiper high/low relay
Relay R3
Wiper relay
Relay R4
Main beam relay
Relay R5
Dipped beam relay
Relay R6
Spare relay
Relay R7
Horn relay
Relay R8
Air-conditioning compressor clutch relay
Relay R9
Spare relay
Relay R10
Front blower motor relay
Relay R11
Starter relay
Relay R12
Parking light relay
Relay R13
Transmission control relay
Relay R14
Fuel pump relay
Additional relay, fuel pump
Relay R15
Automatic shutdown relay
