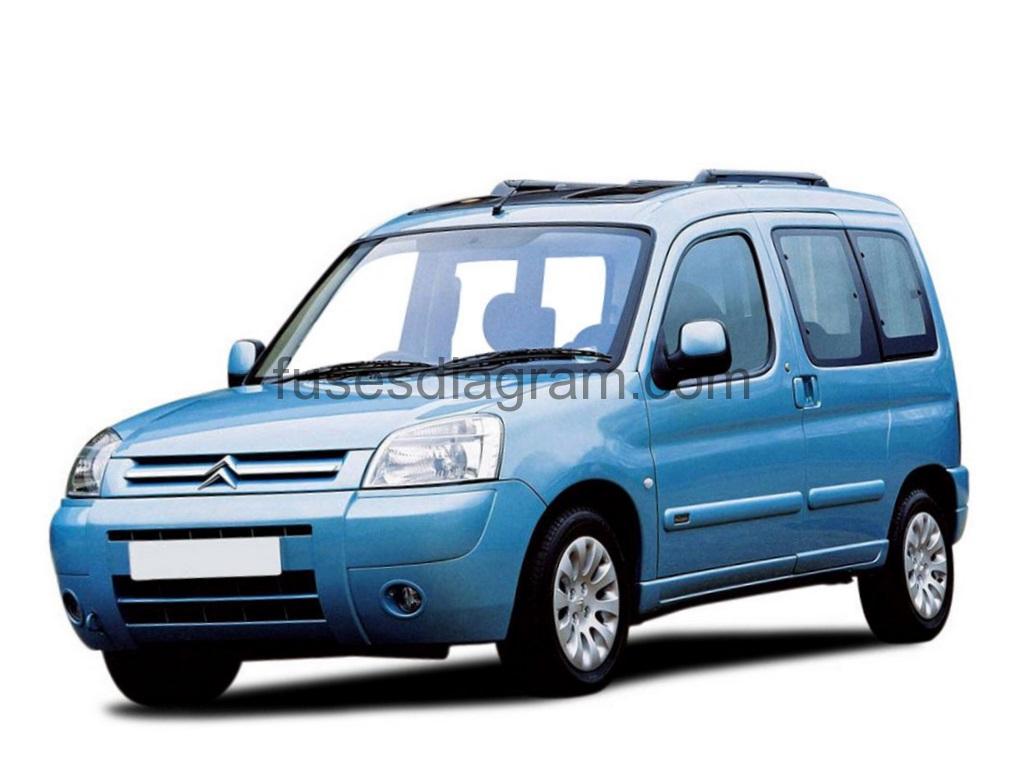

Fuse box diagram Citroen Berlingo MK1 (1996-2011)

Fuse 1
Multiplex system
15.0 A
Fuse 2
Power windows
Sunroof
30.0 A
Fuse 3
Air-conditioning compressor
15.0 A
Fuse 4
Heated mirror(s)
Heated rear windscreen
30.0 A
Fuse 5
Windscreen wiper
25.0 A
Fuse 6
Central locking
20.0 A

Fuse on the BSI (intelegent power distribution module) LHD, since 4 November 2002

Fuse 1
Diagnostic connector supply
Trailer connector socket supply
Or
Rear wiper motor
15.0 A
Fuse 4
Clock
Switch module
Radio
Multifunction display
Security alarm system
Or
20.0 A
Fuse 5
Alarm siren
Or
Not used
15.0 A
Fuse 6
Diagnostic connector
Coolant level sensor
10.0 A
Fuse 7
Rain sensor
Daylight running system
Or
Not used
15.0 A
Fuse 9
Engine running relay
30.0 A
Fuse 10
Rear-view mirror
Heated rear windscreen
40.0 A
Fuse 11
Rear wiper motor
15.0 A
Fuse 12
Front power windows
Sunroof switch
Power window control unit
30.0 A
Fuse 14
Fuse box in engine compartment
Airbag
Seat belt pretensioners
Switch module
10.0 A
Fuse 15
Instrument panel
Radio
Multifunction display
Or
Parking assistance control unit
15.0 A
Fuse 16
Central locking
30.0 A
Fuse 20
Right tail light
10.0 A
Fuse 21
Left tail light
Additional brake light(s)
15.0 A
Fuse 22
Rear-view mirror
Front cigarette lighter
Courtesy light(s)
Interior light(s)
Rear 12V socket
Air-conditioning switch
30.0 A

Fuse box in passenger compartment (1997-2002) (RHD).

Assignment of the fuses.

Fuse 1
Pretensioner and front airbag shunt
Fuse 2
Instrument panel
Diagnostic connector
5.0 A
Fuse 3
Not used
Fuse 4
BSI (Intelligent power distribution module)
5.0 A
Fuse 5
Stop switch
10.0 A
Fuse 6
Clock
Multifunction LED
Code command
5.0 A
Fuse 7
Cooling fan relay
Water temperature sender
Injection relay
Injection control unit
10.0 A
Fuse 8
Interior light(s)
Radio
Multifunction relay
10.0 A
Fuse 9
BSI (Intelligent power distribution module)
5.0 A
Fuse 10
Rear wiper motor
20.0 A
Fuse 11
Radio
Air conditioning
Cigarette lighter
Interior light(s)
Multifunction display
5.0 A
Fuse 12
Rear fog light(s)
5.0 A
Fuse 13
Relay, heated seats
15.0 A
Fuse 14
Headlight washer relay
30.0 A
Fuse 15
12V socket
20.0 A
Fuse 16
Blower relay
30.0 A
Fuse 17
Horn
15.0 A
Fuse 18
Left sidelight
Right tail light
5.0 A
Fuse 19
Right sidelight
Left tail light
Number plate light(s)
5.0 A
Fuse 20
Left dipped beam
10.0 A
Fuse 21
Right dipped beam
10.0 A
Fuse 22
Multifunction display
Passenger’s rear-view mirror
10.0 A
Fuse 23
Cigarette lighter
20.0 A
Fuse 23b
Cigarette lighter
20.0 A
Fuse 24
Not used
Fuse 25
Not used
Fuse 26
Not used
Fuse 27
Wiper(s)
Headlight washers
5.0 A
Fuse 28
Not used
Fuse A
Central locking
Tailgate/boot release
20.0 A
Fuse B
Front wiper(s)
25.0 A
Fuse C
Heated rear windscreen and mirrors
30.0 A
Fuse D
Rear wiper
Air conditioning
15.0 A
Fuse E
Power windows
Electric sunroof
30.0 A
Fuse F
Instrument panel
15.0 A

Fuse box in passenger comparment RHD (since 5 June 2001).

1
Pretensioner and front airbag shunt
Fuse 2
Instrument panel
Diagnostic connector
Air-conditioning switch
Switch, warning lights
5.0 A
Fuse 3
Not used
10.0 A
Fuse 4
BSI (Intelligent power distribution module)
5.0 A
Fuse 5
Brake light switch
10.0 A
Fuse 6
Clock
Multifunction LED
Dipped beam relay
Diagnostic socket
5.0 A
Fuse 7
Cooling fan relay
Engine coolant temperature (ECT)
Injection relay
Injection control unit
Or
Canister purge solenoid(s)
10.0 A
Fuse 8
Interior light(s)
Radio
Multifunction display
Navigation control unit
10.0 A
Fuse 9
BSI (Intelligent power distribution module)
5.0 A
Fuse 10
Not used
10.0 A
Fuse 11
Heater
Radio
Air conditioning
Cigarette lighter
Interior light(s)
Multifunction display
5.0 A
Fuse 12
Rear fog light warning light
5.0 A
Fuse 13
Relay, heated seats
15.0 A
Fuse 14
Headlight washer relay
30.0 A
Fuse 15
12V socket
20.0 A
Fuse 16
Air-conditioning blower
30.0 A
Fuse 17
Horn
15.0 A
Fuse 18
Left sidelight
Right tail light
5.0 A
Fuse 19
Right sidelight
Left tail light
Number plate light(s)
5.0 A
Fuse 20
Left dipped beam
Instrument panel warning light(s)
10.0 A
Fuse 21
Right dipped beam
Headlight switch
10.0 A
Fuse 22
Multifunction display
Passenger’s rear-view mirror
Navigation control unit
Reading light(s)
10.0 A
Fuse 23
Cigarette lighter
20.0 A
Fuse 23b
Cigarette lighter
20.0 A
Fuse 24
Radio
10.0 A
Fuse 24b
Radio
10.0 A
Fuse 25
Rear wiper
20.0 A
Fuse 26
Not used
30.0 A
Fuse 27
Wiper switch, front and rear
BSI
Headlight washer control unit
5.0 A
Fuse 28
Not used
20.0 A

Fuse box in passenger compartment LHD (since 2002).

Fuse 1
Diagnostic connector
Rear 12V socket
15.0 A
Fuse 4
Clock
Radio
Multifunction display
Protection and Switching unit
20.0 A
Fuse 5
Not used
15.0 A
Fuse 6
Diagnostic connector
Coolant level
10.0 A
Fuse 7
Not used
Fuse 9
Engine control relay
30.0 A
Fuse 10
Heated rear windscreen
Heated mirror(s)
Heated window
40.0 A
Fuse 11
Rear wiper
15.0 A
Fuse 12
Front power windows
Sunroof
30.0 A
Fuse 14
Protection and Switching unit
Airbag control unit
Fuse box in engine compartment
10.0 A
Fuse 15
Control panel
Multifunction display
Radio
15.0 A
Fuse 16
Central locking
30.0 A
Fuse 20
Right brake light
10.0 A
Fuse 21
Left brake light
Additional brake light
15.0 A
Fuse 22
Accessory supply
12V socket
Cigarette lighter
Air-conditioning switch
Interior light(s)
Passenger’s rear-view mirror
30.0 A

Fuse box in passenger compartment LHD (pre 25 May 2000).

Fuse 1
Audio system
10.0 A
Fuse 2
Main relay
Instrument panel
Coolant level warning light
Coolant temperature warning light
Diagnostic socket
Brake lights
5.0 A
Fuse 3
ABS control unit
15.0 A
Fuse 4
Parking lights
5.0 A
Fuse 5
Daylight running system
5.0 A
Fuse 6
Air conditioning
10.0 A
Fuse 7
Immobiliser
Horn
Diagnostic socket
15.0 A
Fuse 8
Shunt
Fuse 9
Tail light(s)
Number plate light(s)
5.0 A
Fuse 10
Driver’s power window
20.0 A
Fuse 11
Power window, passenger’s side
20.0 A
Fuse 12
Brake lights
Engine immobiliser
Air-conditioning cut-off relay
Cooling fan relay
Or
Brake lights
Double relay
Air-conditioning cut-off relay
Cooling fan relay
10.0 A
Fuse 13
Driver’s power window switch
5.0 A
Fuse 14
Remote control
10.0 A
Fuse 15
Central locking control unit
15.0 A
Fuse 16
Cigarette lighter
15.0 A
Fuse 17
No information is available
Fuse 18
Rear fog lights
Indicator light
5.0 A
Fuse 19
Lights
5.0 A
Fuse 20
Air conditioning blower
25.0 A
Fuse 21
Air-conditioning switch
Blower relay
Relay, heated seats
Heated rear windscreen switch
Heated rear windscreen, timer
5.0 A
Fuse 22
Rear windscreen wiper
Rear wiper timer
20.0 A
Fuse 23
Shunt
Fuse 24
Windscreen wiper motor
20.0 A
Fuse 25
Cooling fan, low speed
Water temperature control unit
Interior lights
Audio system
Inertia switch
5.0 A
Fuse 26
Hazard warning light switch
15.0 A
Fuse 27
Heated rear windscreen
Heated mirrors
30.0 A
Fuse 28
Electric mirror
Wiper timer
Power window relay
15.0 A
Fuse 29
Air-conditioning blower
Or
Heated seat
30.0 A
Fuse 30
Courtesy light(s)
Direction indicators
Remote control receiver
Instrument panel
10.0 A

Relay box in passenger comparment LHD (since 5 June 2000).

Relay R1
Engine running relay
Relay R2
Dipped beam relay
Or
Main beam relay
Relay R3
Main beam relay
Or
Dipped beam relay
Relay R4
Relay, heated seats
Relay R5
Headlight washer relay

Relay box №2 in passenger comparment LHD (5 May 1997- 29 November 1998).

Relay R1
Air conditioning blower
Or
Heated seat
Relay R2
Heated rear windscreen
Or
Not used
Relay R3
Lights on
Relay R4
Engine running relay
Relay R5
Alarm
Relay R6
Overspeed
Or
Not used
Relay R7
Flasher unit
Relay R8
Rear heater relay
Relay R9
Windscreen wiper delay
Relay R10
Power window relay
Relay R11
Rear wiper timer

Relay box №3 in passenger compartment LHD (30 November 1998 – 4 June 2000).

Relay R1
Blower relay
Relay R2
Heated rear windscreen
Relay R3
Lights on
Relay R4
Engine running relay
Relay R5
Not used
Relay R6
Heated seats
Speed control buzzer
Relay R7
Flasher unit
Relay R8
Rear heater relay
Relay R9
Windscreen wiper delay
Relay R10
Power window relay
Relay R11
Rear wiper timer
12
Diagnostic socket
13
Buzzer

Fuse box in egine compartment RHD (1997-2002).

Fuse 1
No information is available
70.0 A
Fuse 5
BSI (Intelligent power distribution module)
20.0 A
Fuse 6
Not used
30.0 A
Fuse 7
Additional heater system
20.0 A
Fuse 8
No information is available
70.0 A
Fuse 9
No information is available
50.0 A
Fuse 10
No information is available
40.0 A
Fuse 11
No information is available
60.0 A
Fuse 12
No information is available
50.0 A
Fuse 14
Injection system double relay
Fuse 16
No information is available
20.0 A
Fuse 17
No information is available
20.0 A
Fuse 18
Right main beam
10.0 A
Fuse 19
Left main beam
10.0 A
Fuse 20
ABS control unit
10.0 A
Fuse 21
Additional heater relay
5.0 A
Fuse 22
Not used
20.0 A
Fuse 22a
Not used
30.0 A
Fuse 23
Not used
15.0 A
Fuse 24
Not used
5.0 A
Fuse 25
Fuel pump
15.0 A
Fuse 26
Injection system double relay
Fuse 27
Not used
30.0 A
Fuse 28
Heated throttle housing, petrol
5.0 A
Fuse 28a
Not used
10.0 A
Fuse 29
Not used
30.0 A
Fuse 30
Front left fog light
10.0 A
Fuse 31
Front right fog light
10.0 A
Fuse 32
Injection control unit
5.0 A
Fuse 32a
Injection control unit
10.0 A
Fuse 33
Reversing light(s)
Coolant level
Cooling fan
15.0 A
Fuse 34
Exhaust gas sensor
5.0 A

Fuse box in engine compartment LHD (since 2002).

Fuse 1
Reversing light switch
Vehicle speed sensor
Clutch pedal position switch
10.0 A
Fuse 2
Fuel pump with fuel gauge sensor
Canister purge solenoid
15.0 A
Fuse 3
ABS control unit
10.0 A
Fuse 4
Engine control unit
Cooling fan, low-speed relay
Brake pedal switch
10.0 A
Fuse 5
Not used
Fuse 6
Front fog lights
15.0 A
Fuse 7
Headlight washer pump
20.0 A
Fuse 8
Engine control unit
Cooling fan, low-speed relay
20.0 A
Fuse 9
Left headlight
15.0 A
Fuse 10
Right headlight
15.0 A
Fuse 11
Left headlight
10.0 A
Fuse 12
Right headlight
10.0 A
Fuse 13
Horn
15.0 A
Fuse 14
Washer pump
10.0 A
Fuse 15
Ignition coil
Oxygen sensors
Injectors
30.0 A
Fuse 16
Air pump
30.0 A
Fuse 17
Windscreen wiper(s)
30.0 A
Fuse 18
Blower
40.0 A
Fuse MF1
Cooling fan
(20A also used)
80.0 A
Fuse MF2
ABS control unit
(20A also used)
80.0 A
Fuse MF3
Not used
Fuse MF4
Fuse box in passenger compartment
(20A also used)
80.0 A
Fuse MF5
Fuse box in passenger compartment
(20A also used)
80.0 A
Fuse MF6
Not used
Fuse MF7
Ignition switch
(20A also used)
80.0 A
Fuse MF8
Not used

Fuse and relay box in engine compartment LHD (since 2 April 1996).

Fuse 1
Fog lights
Fuse A
Ignition switch
Fuse B
Ignition switch
Fuse C
Engine running relay
Fuse D
Lighting switch
Fuse E
Air conditioning
Fuse F
Air conditioning
Fuse G
No information is available
Fuse H
ABS control unit
Relay R1
Carburettor heating
Or
Compressor cut-off
Relay R2
Cooling fan relay
Air-conditioning compressor relay
Relay R3
Front fog light relay
Fuel pump relay
Or
Not used
Relay R4
Headlight washer timer
Or
Not used
Relay R5
Daylight running system relay
Or
Not used
Relay R6
Daylight running system relay
Or
Not used
Relay R7
EGR
Relay R8
Automatic injection advance

Fuse and relay box in engine comparment LHD (since 5 June 2001).

Fuse A
Coolant heater
40.0 A
Fuse B
Coolant heater
40.0 A
Relay R1
Coolant heater relay 1
Relay R2
Coolant heater relay 2

Fuse box №1 in engine compartmet LHD (since 5 June 2001).

Fuse 5
BSI
20.0 A
Fuse 6
Not used
30.0 A
Fuse 7
Additional heater
(20A also used)
30.0 A
Fuse 14
Injection system double relay
20.0 A
Fuse 18
Right main beam
10.0 A
Fuse 19
Left main beam
Instrument panel warning light(s)
10.0 A
Fuse 20
ABS control unit
Or
LPG control unit
LPG relay
LPG switch
10.0 A
Fuse 21
Alarm siren
Additional heater relay
Or
LPG control unit
5.0 A
Fuse 22
Carburettor heating
(5A also used)
(30A also used)
20.0 A
Fuse 23
Diesel fuel heater relay
15.0 A
Fuse 24
Not used
5.0 A
Fuse 25
Fuel pump
15.0 A
Fuse 26
Double relay
40.0 A
Fuse 27
Not used
30.0 A
Fuse 28
Injection pump, diesel
Or
Heater
Not used
10.0 A
Fuse 29
Air pump
30.0 A
Fuse 30
Front fog lights
Fog light warning light
10.0 A
Fuse 31
Not used
10.0 A
Fuse 32
Anti-start system
Fuel injection control unit
LPG control unit
Speed sensor
Temperature sensor
10.0 A
Fuse 33
Pre-post heating
Reversing light switch
Coolant level sensor
Heater
Fuel cut-off solenoid
Speed control relay
Advance correction
EGR
Injection pump, diesel
Mass airflow meter
Additional heater
Engine coolant temperature (ECT)
Air conditioning
Cooling fan relay
Thermal sensor
Cruise control switch
15.0 A
Fuse 34
Oxygen sensor
5.0 A
Fuse MF1
BSI
70.0 A
Fuse MF4
Not used
60.0 A
Fuse MF8
Fuse box in passenger compartment
70.0 A
Fuse MF9
BSI
50.0 A
Fuse MF10
Lighting control
Daylight running system relay
Dipped beam relay
40.0 A
Fuse MF11
Fuse box in passenger compartment
60.0 A
Fuse MF12
Ignition switch
50.0 A
Fuse MF13
Not used
40.0 A
Fuse MF15
Anti-lock brakes
Or
Not used
50.0 A
Fuse MF16
Cooling fan
20.0 A
Fuse MF17
Cooling fan
20.0 A
Relay R1
Blower relay
Relay R2
Rear fog light relay
Relay R3
LPG pump
Relay R4
Carburettor heating
Or
Additional heater

Fuse box №2 in engine compartment LHD (since 30 September 2002).

Fuse 1
Speed sensor
Reversing light switch
Clutch pedal position sensor
10.0 A
Fuse 2
Fuel gauge
Canister purge solenoid(s)
15.0 A
Fuse 3
ABS (hydraulic unit)
ESP control unit
10.0 A
Fuse 4
Engine control unit
Cooling fan relay, lower stage 1
Brake light switch
10.0 A
Fuse 5
Not used
10.0 A
Fuse 6
Front fog light(s)
15.0 A
Fuse 7
Headlight washer pump
20.0 A
Fuse 8
Engine control unit
Cooling fan relay, lower stage 1
20.0 A
Fuse 9
Left headlight
15.0 A
Fuse 10
Right headlight
15.0 A
Fuse 11
Left headlight
10.0 A
Fuse 12
Right headlight
10.0 A
Fuse 13
Horn
15.0 A
Fuse 14
Front and rear washer pumps
10.0 A
Fuse 15
Ignition coil
Oxygen sensor in front of the catalytic converter
Oxygen sensor behind the catalytic converter
Injectors (cylinders 1 – 4)
30.0 A
Fuse 16
Turbocharger
Or
Not used
30.0 A
Fuse 17
Windscreen wiper motor
30.0 A
Fuse 18
Blower
40.0 A
Fuse MF1
(No value is available)
Cooling fan relay
Fuse MF2
(No value is available)
ESP control unit
ABS (hydraulic unit)
Or
Fuse MF3
Not used
Fuse MF4
(No value is available)
BSI
Fuse MF5
(No value is available)
BSI
Fuse MF6
Not used
Fuse MF7
(No value is available)
Ignition switch
Fuse MF8
Not used

Fuse box in engine compartment LHD (pre 25 May 2000).

Fuse 1
Headlight washer timer
20.0 A
Fuse 2
No information is available
Fuse 3
Cooling fan unit
30.0 A
Fuse 4
No information is available
Fuse 5
No information is available
Fuse 6
ABS control unit
30.0 A
Fuse 7
No information is available
Fuse 8
No information is available
Fuse 9
Fuel pump
20.0 A
Fuse 10
Oxygen sensor
5.0 A
Fuse 11
No information is available
Fuse 12
Right main beam
10.0 A
Fuse 13
Left main beam
10.0 A
Fuse 14
Right dipped beam
10.0 A
Fuse 15
Left dipped beam
10.0 A

Additional Relay in engine compartment (since 26 May 2000).

Relay R1
Main relay
Relay R2
ABS relay
Or
ESP relay
Relay R3
Air pump relay

Cookie	Duration	Description
cookielawinfo-checkbox-analytics	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checkbox-functional	11 months	The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checkbox-necessary	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-others	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-performance	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
viewed_cookie_policy	11 months	The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.
