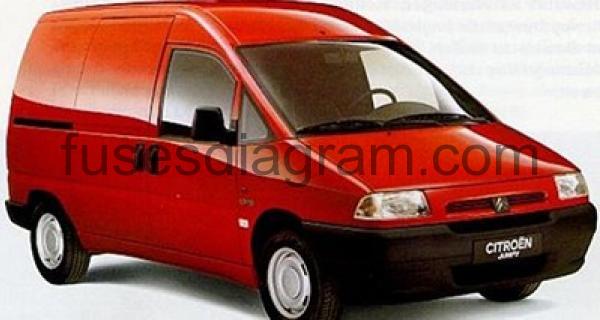

For Citroen Jumpy /Dispatch (U6) 1995, 1996, 1997, 1998 ,1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 model year.
Cigarette lighter fuse – fuse box in passenger compartment – Fuse F16/20A |
MENU
Fuse box in passenger compartment.
Fuse box in engine compartment, Without ABS.
Fuse box in engine compartment, With ABS.
Fuse and relay box in engine compartment, LHD.
Fuse box in passenger compartment.
fuse box diagram.
Assignment of the fuses.
| Fuses | Amps | Circuits Protected |
|---|---|---|
| 1 | 10А | Audio system |
| 2 | 5А | Ignition + position Speed sensor CPH Instrument panel warning light(s) |
| 3 | 15А | Brake light(s) Cruise control |
| 4 | 10А | Right sidelight Left tail light Headlight levelling |
| 5 | 10А | Air conditioning Front power windows Blower Pressure switch |
| 6 | 15А | Heated rear windscreen Heated seat(s) |
| 7 | 20А | Warning system |
| 8 | Shunt | |
| 9 | 5А | Right sidelight Left tail light Number plate light(s) Headlight washers |
| 10 | 15А | Front fog lights |
| 11 | 30А | Not used |
| 12 | 10А | Reversing light(s) Diagnostic connector |
| 13 | 30А | Not used |
| 14 | 5А | CPH |
| 15 | 30А | CPH Central locking Interior light(s) |
| 16 | 20А | Cigarette lighter Permanent + position Accessories + position |
| 17 | 15А | Coolant temperature control unit Cooling fan |
| 18 | 10А | Fog light(s) |
| 19 | 10А | Instrument lighting Audio system Sidelights |
| 20 | 30А | Air conditioning Blower |
| 21 | 20А | Heated seat(s) |
| 22 | 20А | Accessories + position Not used |
| 23 | Shunt | |
| 24 | 30А | Windscreen washer(s) Windscreen wiper(s) |
| 25 | 10А | Air conditioning Interior light(s) Radio memory Clock |
| 26 | 15А | Hazard warning lights |
| 27 | 30А | Heated rear windscreen |
| 28 | 15А | Power windows Charge warning light |
| 29 | 30А | Power windows |
| 30 | 15А | Interior light(s) Direction indicators Clock Electric rear-view mirror |
Fuse box in engine compartment, Without ABS.
Right-hand drive is shown.
Fuse 1
Fuel pump
20.0 A
Fuse 2
Right dipped beam
10.0 A
Fuse 3
Left dipped beam
10.0 A
Fuse 4
Headlight washers
25.0 A
Fuse 5
Shunt
Fuse 6
Immobiliser
10.0 A
Fuse 7
Catalytic converter sensor
10.0 A
Fuse 8
Trailer
20.0 A
Fuse 9
Cooling fan
25.0 A
Fuse 9a
Cooling fan
30.0 A
Fuse 10
Not used
15.0 A
Fuse 11
Not used
5.0 A
Fuse 12
Left main beam
10.0 A
Fuse 13
Right main beam
10.0 A
Fuse MF1
No information is available
20.0 A
Fuse MF2
No information is available
30.0 A
Fuse box in engine compartment, With ABS.
Right-hand drive is shown
Fuse 1
Trailer
20.0 A
Fuse 2
Fuel pump
15.0 A
Fuse 2a
Fuel pump
20.0 A
Fuse 3
Left dipped beam
10.0 A
Fuse 4
Right dipped beam
10.0 A
Fuse 5
Diagnostic connector
10.0 A
Fuse 6
Electronic injection
Immobiliser
10.0 A
Fuse 7
Left main beam
10.0 A
Fuse 8
Right main beam
10.0 A
Fuse 9
Engine cooling fan
25.0 A
Fuse 9a
Engine cooling fan
40.0 A
Fuse 10
Headlight washers
30.0 A
Fuse 11
Additional heater
20.0 A
Fuse 12
Headlight washer pump
5.0 A
Fuse 13
Catalytic converter sensor
Blower
15.0 A
Fuse 15
Blower
Air conditioning
40.0 A
Fuse 16
Engine cooling fan
30.0 A
Fuse 16a
Engine cooling fan
50.0 A
Fuse MF1
Engine cooling fan
20.0 A
Fuse MF2
Injection relay
30.0 A
Fuse MF4
ABS control unit
60.0 A
Fuse and relay box in engine compartment, LHD.
Left-hand drive is shown
Fuse 1
Left main beam
10.0 A
Fuse 2
Fuel pump
20.0 A
Fuse 3
No information is available
10.0 A
Fuse 4
Left dipped beam
10.0 A
Fuse 5
Right dipped beam
10.0 A
Fuse 6
No information is available
20.0 A
Fuse 7
Not used
Fuse 8
No information is available
5.0 A
Fuse 9
Fuel pump relay
Additional relay, fuel pump
10.0 A
Fuse 10
Right main beam
10.0 A
Fuse 11
No information is available
Fuse 12
Headlight washers
25.0 A
Fuse 13
Cooling fan
30.0 A
Fuse 14
No information is available
30.0 A
Fuse 15
Not used
Fuse 16
No information is available
10.0 A
Fuse 17
Diagnostic connector
Trailer connector
Fuse MF1
Main light switch
Main relay
Fuse box in passenger compartment
70.0 A
Fuse MF2
Fuse box in passenger compartment
Ignition switch
ADC (anti-start system) panel
Main relay
70.0 A
Fuse MF3
Secondary air pump relay
40.0 A
Fuse MF4
Cooling fan
50.0 A
Relay R1
Air conditioning
Relay R2
Cooling fan
Relay R3
No information is available
Relay R4
Headlight washers
Relay R5
Cooling fan
Relay R6
Air conditioning
Relay R7
Cooling fan
