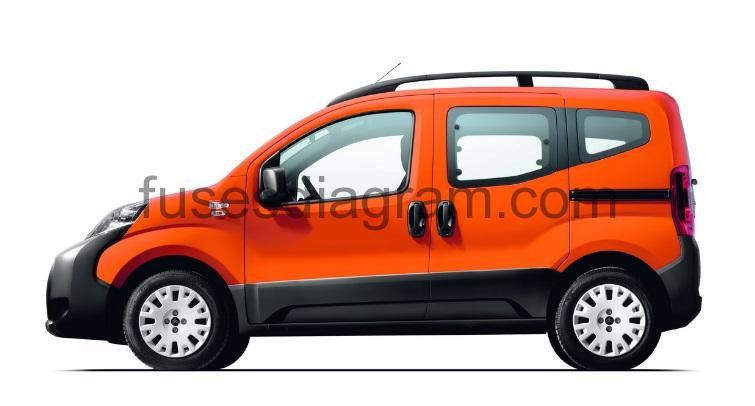

For Citroen Nemo (MCV) 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 model year.
Cigarette lighter fuse – fuse box in passenger compartment (type 1) – Fuse F7/15A Cigarette lighter fuse – fuse box in passenger compartment (type 2) – Fuse F94/15A Cigarette lighter fuse – fuse box in engine compartment (type 1) – Fuse F85/15A Cigarette lighter fuse – fuse box in engine compartment (type 2) – Fuse F85/30A |
MENU
Fuse box in passenger compartment.
Fuse box in engine compartment.
Fuse box in passenger compartment.
fuse box location.
On the dashboard on the driver's side. To gain access to the dashboard fuses, remove the 2 screws using the ignition key and tilt the housing.
Assignment of the fuses.
| Fuses | Amps | Circuits Protected |
|---|---|---|
| 1 | Not used | |
| 2 | Not used | |
| 3 | 7.5А | Heated mirrors |
| 4 | Not used | |
| 5 | Not used | |
| 6 | Not used | |
| 7 | 15А | Cigarette lighter |
| 8 | 15А | 12V socket |
| 9 | 10А | Heated driver's seat |
| 10 | 10А | Heated passenger's seat |
| 11 | Not used | |
| 12 | Not used or (7.5A) Right-hand dipped beam headlamp supply | |
| 13 | 7.5А | Right dipped beam |
| 14 | 7.5А | Interior lights |
| 15 | 5А | Rear fog lights Control panel |
| 16 | 20А | Central locking |
| 17 | 10А | Front and rear washer pumps |
| 18 | 15А | Windscreen washer pump |
| 19 | 20А | Passenger's power window |
| 20 | 20А | Hazard warning lights Headlight levelling |
| 21 | 7.5А | Airbag control unit |
| 22 | 7.5А | Brake pedal switch Clutch pedal switch Air conditioning |
| 23 | 5А | Brake lights Control panel |
| 24 | 7.5А | Ultrasonic proximity sensors Electric mirror |
| 25 | 5А | Engine control unit power supply |
| 26 | 20А | Passenger's power window |
No location information is available for the following relays:
Relay T01
Hazard warning light relay
Dipped beam relay
Relay T15A
Windscreen wiper relay(s)
Relay T15B
Windscreen wiper relay(s)
Relay T16
Wiper motor relay(s)
Relay T23A
Front and rear washer pumps
Relay T23B
Front and rear washer pumps
Relay T25A
Front one-touch power windows
Relay T25B
Not used
Relay T26A
Front one-touch power windows
Relay T26B
Not used
Relay T37A
Door lock switches
or not used
Relay T37B
Door lock switches
or not used
Relay T37C
Locks deadlocking control relay
Relay T37D
Door lock switches
or not used
Relay T44
Courtesy light relay
legend.
Marking | Rating | Functions |
|---|---|---|
F12 | 7.5 A | Right-hand dipped beam headlamp supply |
F13 | 7.5 A | Left-hand dipped beam headlamp supply – headlamp height adjuster |
F31 | 5 A | Engine control unit supply switch |
F32 | 7.5 A | Front lamp – front courtesy lamp – rear courtesy light lamp |
F36 | 10 A | Audio system – mobile telephone pre-equipment – air conditioning control panel – EODB diagnostic socket |
F37 | 5 A | Brake lamp – instrument panel |
F38 | 20 A | Door locking |
F43 | 15 A | Screenwash pump |
F47 | 20 A | Driver's electric window motor supply |
F48 | 20 A | Passenger's electric window motor supply |
F49 | 5 A | Parking sensors control unit – rear lighting switch – electric door mirrors – volumetric alarm control unit |
F50 | 7.5 A | Airbags control unit |
F51 | 7.5 A | Switch on brake pedal – switch on clutch pedal – door mirror controls – central Bluetooth system |
F53 | 5 A | Instrument panel – rear foglamps |
F41 | 7.5 A | Door mirror demisting. |
F94 | 15 A | Cigar lighter. |
F96 | 15 A | 12 V accessory socket. |
F97 | 10 A | Heated seat, driver's side. |
F98 | 10 A | heated seat, passenger's side. |
Fuse box in engine compartment.
fuse box locaton.
For access to the fuses in the engine compartment, remove the left hand front headlamp connector, then unclip the fusebox cover.
legend.
| Fuses | Amps | Circuits Protected |
|---|---|---|
| 1 | 60А | Feed to built-in systems interface |
| 2 | Not used | |
| 3 | 20А | Starter Supply |
| 4 | 40А | ABS pump |
| 5 | Not used | |
| 6 | 20А | Single-speed cooling fan |
| 7 | 40А | Cooling fan, high speed |
| 8 | 30А | Air conditioning |
| 9 | 15А | Trailer or not used |
| 10 | 15А | Horn |
| 11 | 10А | Engine control unit |
| 14 | 15А | Headlights |
| 15 | Not used | |
| 16 | 7.5 | Main relay |
| 17 | 7.5А | Engine control unit or not used |
| 18 | 7.5А | Main relay or not used |
| 19 | 7.5А | Air-conditioning compressor |
| 20 | 30А | Heated rear windscreen supply Heated mirrors |
| 21 | Fuel supply pump or not used | |
| 22 | 15А | Ignition coil |
| 23 | 20А | Fuse and relay box in engine compartment |
| 24 | 7.5А | ABS control unit |
| 30 | 15А | Fog lights |
| 81 | 60А | Preheating control unit or not used |
| 82 | Not used | |
| 84 | Not used | |
| 85 | 15А | 12V socket Cigarette lighter Heated seats |
| 87 | 7.5А | Reversing lights |
| T02 | Main beam relay | |
| T03 | Horn relay | |
| T05 | Air-conditioning compressor relay | |
| T06 | Cooling fan relay | |
| T07 | Two-speed cooling fan | |
| T08 | Air-conditioning blower motor | |
| T09 | Engine control unit, main relay | |
| T10 | Fuel pump relay Additional relay, fuel pump | |
| T14 | Fog light relay | |
| T17 | Not used | |
| T19 | Heated rear windscreen relay Heated mirror | |
| T20 | Starter blocker relay or not used | |
| T30 | Not used | |
| T31 | Power socket Lighting Relay, heated seats |
legend.
Marking | Rating | Functions |
|---|---|---|
F01 | 60 A | Control unit |
F02 | 40 A | Passenger compartment fan. |
F03 | 20 A | Starter motor supply |
F04 | 40 A | ABS hydraulic block pump supply |
F06 | 30 A | Single speed cooling fan control |
F07 | 40 A | High speed cooling fan control |
F08 | 30 A | Air conditioning compressor |
F09 | 15 A | Tow bar harness. |
F10 | 10 A | Horn |
F11 | 10 A | Engine management secondary load supply |
F14 | 15 A | Main beam headlamps |
F15 | 15 A | 12 V accessory socket. |
F16 | 7.5 A | Engine management control unit – electronic gearbox control unit and gear lever – T20 relay coil |
F17 | 15 A | Supply for ignition coil – injectors – engine management control unit (1.3 HDi) |
F18 | 7.5 A | Engine management control unit (1.3 HDi) – T09 relay coil |
F19 | 7.5 A | Air conditioning compressor |
F20 | 30 A | Supply for heated rear screen, electric door mirrors heater elements |
F21 | 15 A | Fuel pump (1.4 petrol and 1.3 HDi) |
F22 | 20 A | Engine management control unit (1.3 HDi) |
F23 | 20 A | ABS hydraulic block electrovalves supply |
F24 | 7.5 A | ABS |
F30 | 15 A | Fog lamps |
F81 | 60 A | Pre-heat unit (1.3 HDi) |
F82 | 30 A | Electronic gearbox pump – electronic gearbox supply |
F84 | 10 A | Electronic gearbox control unit and electro valves |
F85 | 30 A | Cigar lighter – 12 V accessory socket |
F87 | 7.5 A | Reversing lamps – water in Diesel sensor – airflow sensor – T02, T05, T14, T17 and T19 relay coils (except 1.3 HDi) |
| 5 A | Reversing lamps – water in Diesel sensor – airflow sensor – T02, To5, T14, T17 and T19 relay coils – battery state of charge sensor (except 1.3 HDi) |
