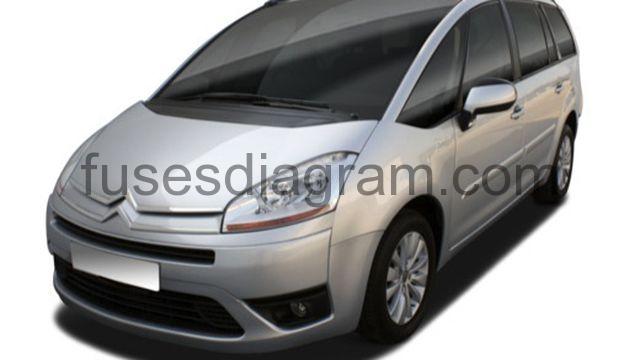

For Citroen C4 Picasso, Citroen C4 Grand Picasso (B58) 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 model year.
Cigarette lighter fuse (front) – Fuse box in passenger compartment – Fuse F9/30A |
MENU
Fuse box in passenger compartment.
Fuse box №2 in passenger compartment.
Fuse box in engine compartment.
Fuse box №2 in engine compartment type 1.
Fuse box №2 in engine compartment type 2.
Fuse box in passenger compartment.
fuse box location.
The extraction tweezer is fitted on the back of the dashboard fusebox cover. For access to it: unclip the cover by pulling at the top right, then left, pull the cover down, remove the tweezer.
fuse box diagram.
Assignment of the fuses.
| Fuse N° | Rating | Functions |
|---|---|---|
| F1 | 15 A | Rear screen wipe |
| F2 | 30 A | Locking and unlocking earth |
| F3 | 1 A | Airbags and pretensioners |
| F4 | 10 A | Multimedia, photochromatic rear view mirror, particle filter, diagnostic socket, air conditioning, manual headlamp height adjustment |
| F5 | 30 A | Front windows, front door electronic control panel, panoramic sunroof |
| F6 | 30 A | Rear windows |
| F7 | 3 A | Interior lamps, cooled glovebox, radio |
| F8 | 30 A | Multifunction screen, radio, steering mounted controls, multimedia, under inflation detection, alarm, trailer |
| F9 | 30 A | Multimedia, front 12 V sockets, Cigarette lighter, torch, radio |
| F10 | 35 A | Height corrector (suspension) |
| F11 | 35 A | Brake switch, ignition switch |
| F12 | 35 A | Parking sensors, automatic wipers and lighting, passenger’s electric seat, lane departure warning system, Hi-Fi amplifier, trailer |
| F13 | 3 A | Engine relay unit (BSM), driver’s electric seat |
| F14 | 35 A | Air conditioning, Bluetooth® hands-free system, automatic gearbox selector lever, airbags, instrument panel |
| F15 | 30 A | Locking and unlocking |
| F16 | – | SHUNT |
| F17 | 30 A | Heated rear screen |
Fuse box №2 in passenger compartment.
legend.
| Fuse N° | Rating | Functions |
|---|---|---|
| F29 | 20 A | Heated seats |
| F30 | – | Not used |
| F31 | 40 A | Trailer relay unit |
| F32 | 15 A | Rear 12 V socket |
| F33 | 5 A | Parking sensors, automatic rain sensitive wipers and automatic illumination of headlamps, passenger’s electric seat, lane departure warning system, Hi-Fi amplifier |
| F34 | 5 A | Trailer |
| F35 | – | Not used |
| F36 | 20 A | Hi-Fi amplifier |
| F37 | 10 A | Air conditioning, lighting pack |
| F38 | 30 A | Driver’s electric seat |
| F39 | 5 A | Fuel filler flap |
| F40 | 30 A | Passenger’s electric seat, panoramic sunroof |
Fuse box in engine compartment.
fuse box location.
fuse box diagram type1.
or
fuse box diagram type 2.
legend.
| Fuses | Amps | Circuits Protected |
|---|---|---|
| 1 | 20A | Engine control unit or Engine control unit or Not used |
| 2 | 15A | Horns |
| 3 | 10A | Front and rear windscreen washers |
| 4 | 20A | Headlight washers |
| 5 | 15A | Turbo bypass solenoid Heater blower |
or
Fuel pump
Canister purge solenoid
6
10A
Automatic transmission control unit
Gear lever blocking control relay
Power window control
Electronic stability program (ESP) relay
ESP hydraulic unit
or
Cruise control switch
Relay 3 protection switch unit
Cornering light(s)
or
Xenon dual-function directional headlamps,
automatic headlamp height adjustment,
clutch switch, protection switch box (BCP)
7
10A
Power steering control unit
Right headlight
Left headlight
or
Automatic transmission control unit
Power steering pump
8
15A
Starter motor
9
10A
Relay 3 protection switch unit
or
ESP sensor
or
Brake pedal switch
Left headlight
Right headlight
10
30A
Injection pump
or
Boost pressure regulator solenoid
Oxygen sensor in front of the catalytic converter
Oxygen sensor behind the catalytic converter
Air heating
Variable valve timing
or
Diesel fuel heater
Boost pressure regulator solenoid
Exhaust heat exchanger solenoid valve
11
40A
Air-conditioning blower
12
30A
Windscreen wiper(s) motor
13
40A
Fuses on the BSI (Intelligent power distribution module)
14
30A
Air pump relay
or
not used
or
Exhaust heat exchanger pump
15
10A
Right main beam
16
10A
Left main beam
17
15A
Left dipped beam
18
15A
Right dipped beam
19
15A
Engine components
or
not used
20
15A
Engine components
or
Variable valve timing
Wastegate control solenoid
10.0 A
or
Intercooler valve control solenoid
21
5A
Cooling fan relay
or
Fuel filter heater
10A
MF1
30A
Cooling fan
(50A also used)
or
ESP
MF2
30A
ABS or ESP pump
MF3
50A
ABS or ESP
or
Electric parking brake
30.0 A
MF4
80A
Fuses on the BSI (Intelligent power distribution module)
MF5
80A
Fuses on the BSI (Intelligent power distribution module)
MF6
80A
Fuse box No. 2 in passenger compartment
or
Blower control unit
50.0 A
MF7
20A
Diagnostic socket
Additional fuel pump
or
Fuse box No. 2 in passenger compartment
50.0 A
MF8
70A
not used
or
Suspension control unit
50.0 A
Fuse box №2 in engine compartment type 1.
Fuses on the battery
legend.
| Fuses | Amps | Circuits Protected |
|---|---|---|
| 1 | Battery Plus connection studs | |
| 2 | Supply connection studs, BSM (engine relay unit) | |
| 3 | 5A | Battery sensor |
| 4 | 5A | Automatic transmission control unit |
| 5 | 15A | Diagnostic socket |
| 6 | 15A | Transmission control unit Or Automatic transmission control unit |
| 7 | 5A | ESP control unit |
| 8 | 20A | Rear 12V socket |
| 9 | 60A | Fuses on the BSI (Intelligent power distribution module) |
| 10 | 80A | Power steering pump |
| 11 | 30A | Transmission control unit Or Automatic transmission control unit |
| 12 | 60A | Cooling fan control unit Cooling fan |
| 13 | 60A | Fuses on the BSI (Intelligent power distribution module) |
| 14 | 70A | Pre-post heating |
| 15 | 100A | Relay 3 protection switch unit |
| 16 |
Fuse box №2 in engine compartment type 2.
Fuses on the battery
legend.
| F1 | Automatic gearbox actuator |
| F2 | (5A/15A) Brake pedal position (BPP) switch |
| F3 | (5A) Battery condition sensor |
| F4 | (20A/30A) ABS/ESP supply |
| F5 | (5A/30A) ABS/ESP supply |
| F6 | (20A/70A) Transmission control module (TCM) |
| F7 | (100A) Power steering |
| F8 | (50A) Engine coolant blower motor |
| F9 | (30A) |
| F10 | (30A) ABS |
| F11 | (30A) |
| F12 | – |
