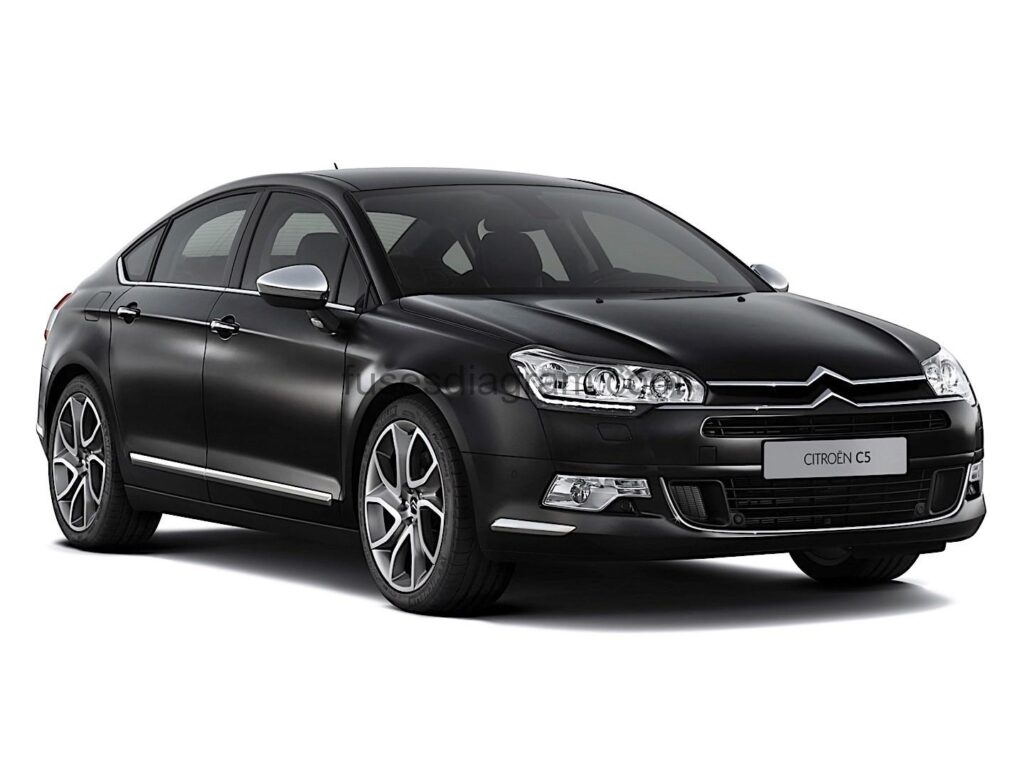

Fuse box diagram Citroen C5 2008-2017

For Citroen C5 (X7) 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 model year.

Cigarette lighter fuse – Fuses under the dashboard (fuse box C) – Fuse F9/30A

Fuses under the dashboard.

fuse box location.

fully open the storage box then pull firmly on it horizontally, remove the trim by pulling sharply on the bottom.

fuse box diagram.

Assignment of the fuses.

Fuse box A

Fuse №	Rating	Function
1	–	Not used
2	5 A	Heated dear mirrors
3	5 A	Rain and sunshine sensor
4	5 A	Seat belt not fastened warning lamps
5	5 A	Electrochrome mirrors
6	20 A	Sunroof (saloon)
7	5 A	Passenger door lighting – Passenger door mirror adjustment
8	30 A	Electric tailgate (Tourer) Luggage compartment opening
9	20 A	Heated front seats Electric driver’s seat Seat memory
10	30 A	Driver’s electric seat
11	30 A	Passenger’s electric seat – Hi-Fi amplifier
12	ЗА	Trailer relay unit supply
Fusebox В
Fuse №	Rating	Function
13	15 A	6-speed automatic gearbox
13	5 A	4-speed automatic gearbox
14	10 A	Daytime running lamps – Diagnostic socket Headlights
15	ЗА	DSC/ASR ESP control unit
16	10 A	Hydraulic suspension
17	ЗА	STOP switch

Fuse box C

Fuse №	Rating	Function
F1	15 A	Rear screen wipe (Tourer)
F2	30 A	Locking and deadlocking relay
F3	5 A	Airbags
F4	10 A	Automatic gearbox Additional heater unit (Diesel) Electrochrome rear view mirrors
F5	30 A	Front window Sunroof Passenger door lighting Passenger door mirror adjustment
F6	30 A	Rear window
F7	5 A	Vanity mirror lighting Glove box lighting Interior lamps Torch (Tourer)
F8	20 A	Radio CD changer Steering mounted controls Screen Under-inflation detection Electric boot ECU
F9	30 A	Cigarette lighter – Front 12 V socket
F10	15 A	Alarm Steering mounted controls, lighting, signalling and wiper stalks
F11	15 A	Low current anti-theft switch Immobiliser
F12	15 A	Driver’s electric seat Instrument panel Seat belt not fastened warning lamps Air conditioning controls
F13	5 A	Engine relay unit Hydraulic suspension pump cut-off relay Airbag ECU supply
F14	15 A	Rain and sunshine sensor Parking sensors Passenger’s electric seat Trailer relay unit – HI-FI amplifier ECU Bluetooth system Lane Departure Warning System
F15	30 A	Locking and deadlocking relay
F17	40 A	Heated rear screen Heated door mirrors
FSH	SHUNT	PARK SHUNT

Fuse box in engine compartment.

fuse box location.

Undo each screw by a 1/4 turn. Remove the cover. Change the fuse.

fuse box diagram.

legend.

Fuse №	Rating	Function
F1	20 A	Engine control unit
F2	15 A	Horn
F3	10 A	Screen wash pump Front and rear wash/wipe system
F4	10 A	Headlamp wash pump
F5	15 A	Engine actuators
F6	10 A	Air flow meter Directional headlamps Diagnostic socket
F7	10 A	Automatic gearbox lever lock Power steering
F8	25 A	Starter motor
F9	10 A	Clutch switch Stop switch
F10	30 A	Engine actuators
F11	40 A	Air conditioning blower
F12	30 A	Windscreen Wipers
F13	40 A	BSI supply (ignition on)
F14	30 A	–
F15	10 A	Right-hand main beam
F16	10 A	Left-hand main beam
F17	15 A	Right-hand dipped beam
F18	15 A	Left-hand dipped beam
F19	15 A	Engine actuators
F20	10 A	Engine actuators
F21	5 A	Engine actuators
MF1	50A	Fan control
MF2	80A	Fuse box No. 2 in passenger compartment
MF3	80A	Power steering control unit
MF4	80A	Fuse box No. 1 in passenger compartment
MF5	20A	Electronic stability program (ESP)
MF6	40A	Electronic stability program (ESP)
MF7	20A	Adaptive damping control unit
MF8	80A	Fuse box in passenger compartment

Fuse box, near battery.

fuse box diagram.

legend.

Fuses	Amps	Circuits Protected
1	40A	Hydra-active suspension Pump control
2	70A	Preheating control unit
3	60A	Cooling fan No. 2
4	100A	Relay 3 protection switch unit
5	30A	Trailer
6	25A	12V socket in luggage compartment Rear 12V socket
7	15A	Fog light(s)
8	20A	Additional heater
9	30A	Electric parking brake
