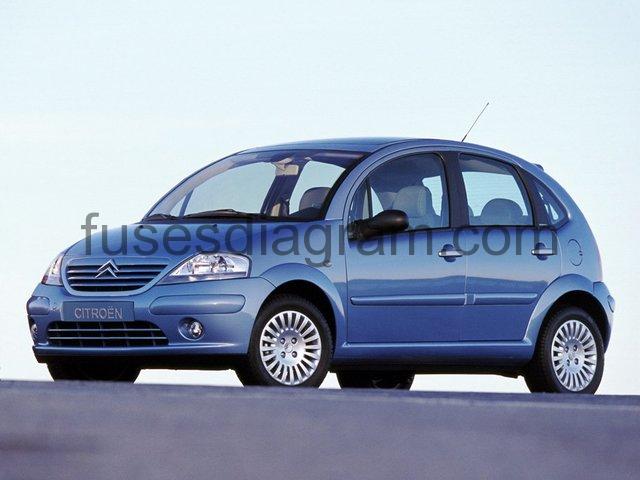

Fuses and Relay Citroen C3 2002-2011

For Citroen C3 (FC) 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 model year.

Cigarette lighter fuse – Fuse box in passenger compartment (pre 2005) – Fuse F22/30A

Cigarette lighter fuse – Fuse box in passenger compartment (since 2005) – Fuse F9/30A



MENU

Fuse box in passenger compartment.

Fuse box in engine compartment.




Fuse box in passenger compartment.

fuse box location.

fuse box diagram (pre 2005).

Assignment of the fuses (pre 2005).

F1(15A) Data link connector (DLC)
F4(20A) Steering column function control module, transmission control module (TCM), SRS control module, digital clock, digital multifunction display, telematics, audiounit, engine control module(ECM), fuse box (engine bay)
F5(15A) Alarm system horn
F6(10A) Data link connector (DLC), steering column function control module
F7(15A) Rain sensor
F9(30A) Electric windows – rear
F10(40A) Heated rear window, electric door mirrors
F11(15A) Rear screen wash/wipe system
F12(30A) Sunroof, electric window control module – passenger’s side, electric window control module – driver’s side
F14(10A) Steering column function control module, fuse box(engine bay), SRS control module
F15(15A) Instrument panel, telematics, parking aid control module, audio unit, digital multifunction display, heater/air conditioning (AC)
F16(30A) Central locking
F20(10A) RH tail lamp
F21(15A) LH tail lamp, stop lamp (high level)
F22(30A) Accessories connector – front, accessories connector – rear, interior rearview mirror, cigarette lighter – front

Fuse box diagram (since 2005).

legend.

Ref.RatingFunction
35 AAirbags
410 ADiagnostic socket – Clutch switch – Steering angle sensor
630 AScreen wash
820 ADigital clock – Controls at the steering wheel – Radio – Display
930 ADigital clock – Interior lamps

cigarette lighter

1115 AIgnition switch – Diagnostic socket
1215 AAirbag ECU – Rain and brightness sensor
1415 AInstrument panel – Air conditioning
1530 ACentral locking – Deadlocking
1740 AHeated rear screen
18SHUNTCUSTOMER PARK SHUNT

Fuse box diagram since 2009.

legend.

FusesAmpsCircuits Protected
115ARear wiper motor
35AAirbag control unit
410ADiagnostic socket
Fuel pump
Clutch switch
Steering column control(s)
Steering angle sensor
Or
Diagnostic socket
Fuel pump
Clutch switch
Steering column control(s)
Steering angle sensor
Mass airflow meter
530AFront power windows
Sunroof motor
630APower windows
75AInterior light
Clock
820AElectric mirrors
Clock
Steering column control(s)
Audio system
Multifunction display
Alarm control unit
Handsfree telephone
Check system
930ARear 12V socket
Cigarette lighter
Audio system
1015AAlarm siren
Or
Steering column control(s)
Check system
1115ADiagnostic socket
Automatic transmission control unit
Ignition switch
1215AAirbag control unit
Rain and light sensor
135AABS control unit
Fuse box in engine compartment
Manual transmission
Brake light switch
Or
Fuse box in engine compartment
Manual transmission
Brake light switch
1415AParking assistance
Instrument panel
Heater
Handsfree telephone
Headlight levelling
1515ACentral locking
16Shunt
1740AHeated rear windscreen
Heated rear-view mirror






Additional fuse box in passenger compartment.

(since 2005).

legend.

FusesAmpsCircuits Protected
1Not used
2Not used
3Not used
4Not used
5Not used
6Not used
75ASunroof
Electric mirror(s)
Front power window
8Not used
930AElectrically operated bonnet
Or
Rear windows
Or
Not used
1030ARear windows
Or
Heated seats
Or
Not used
1120AHeated front seats
Or
Not used
1230ARear windows
Or
Not used






Additional fuse box №2 in passenger compartment.

(since 2005).

legend.

FusesAmpsCircuits Protected
3615AAudio system
Or
Not used
3720AHeated seats
Or
Folding roof control unit
(30A also used)












Fuse box in engine compartment.

fuse box location.

To access the fusebox located in the engine compartment, remove the battery cover and detach the lid.

fuse box diagram (pre 2005).

legend.

1(10A) Automatic transmission (AT), reverse gear position switch, vehicle speed sensor (VSS), transmission control module (TCM), electronic stability program (ESP) control module, fuel/water separator sensor, heater/air conditioning (AC)
2(15A) Fuel pump
3(10A) ABS control module, electronic stability program (ESP) control module
4(10A) Engine coolant ‘low’ sensor, automatic transmission (AT), engine control module (ECM), engine coolant heater relays, power steering control module, cruise control, brake pedal position (BPP) switch
5(10A) Fuel additive control module
6(15A) Front fog lamps
7(20A) Headlamp washer pump
8(20A) Engine management
9(15A) LH headlamp – low beam
10(15A) RH headlamp – low beam
11(10A) LH headlamp – high beam
12(10A) RH headlamp – high beam
13(15A) Horn
14(10A) Windscreen/rear screen washer pump
15(30A) Engine management
16(30A) Secondary air injection (AIR) pump
17(30A) Windscreen wiper motor
18(40A) Heater/air conditioning (AC)
MF1(20/80A) Engine coolant blower motor
MF2(20/80A) Anti-lock brake system (ABS)
MF3(20/80A) Anti-lock brake system (ABS)
MF4(20/80A) Multifunction control module 1
MF5(20/80A) Multifunction control module 1
MF6(20/80A) Heated seats
MF7(20/80A) Ignition switch
MF8(20/80A) Power steering

Fuse box diagram (pre 2009).

legend.

FusesAmpsCircuits Protected
120AFuel injection control unit
EGR valve
Cooling fan
215AHorn
310AWindscreen washer
Rear windscreen washer
420AHeadlight washer pump
515AFuel pump
610AAutomatic transmission
Automatic gearbox
Gear lever blocking control relay
Speed sensor
Electric steering
710ARelay 3 protection switch unit
815AStarter
910AABS control unit
ESP control unit
ABS relay
Brake light switch
LPG control unit
1030AIgnition coil
Oxygen sensors
Canister purge solenoid
Thermostat
Oil vapour recirculation heater
EGR valve
Butterfly valve
Injectors
Variable valve timing
1140ABlower
1230AWindscreen wiper
1340AFuse box in passenger compartment
1430AAir pump
1510ARight main beam
1610ALeft main beam
1715ALeft dipped beam
1815ARight dipped beam
MF130ACooling fan
Or
Automatic gearbox
(50A also used)
(70A also used)
MF230AABS control unit
ESP control unit
MF330AABS control unit
ESP control unit
MF460AFuse box in passenger compartment
MF560AFuse box in passenger compartment
MF630AManual transmission
MF740AFuse box in passenger compartment
Diode module
MF880AElectric steering




Fuse box diagram (since 2009).

Facelift and Pluriel.

legend.

FusesAmpsCircuits Protected
120ACooling fan
ABS/ESP relay(s)
Injection
215AHorn
310AFront and rear washer pumps
420ANot used
515AFuel pump
610Automatic transmission control unit
Automatic gearbox
Gear lever blocking control relay
Power steering control unit
Or
Power steering control unit
710ARelay 3 protection switch unit
825AStarter motor
910AABS/ESP control unit
ABS/ESP relay(s)
Brake pedal switch
Gas control unit
Or
ABS/ESP control unit
ABS/ESP relay(s)
Brake pedal switch
1030AInjection
Ignition coil
Injectors
Or
Injection
Ignition coil
Capacitor
Injectors
Canister purge solenoid
1140AAir-conditioning blower
1230AWindscreen wiper
1340AFuse box in passenger compartment
1430ANot used
1510ARight main beam
1610ALeft main beam
1715ALeft dipped beam
1815ARight dipped beam
1915AInjection
Oxygen sensors
Canister purge solenoid
EGR control solenoid
Butterfly valve
Or
Injection
Oxygen sensors
Canister purge solenoid
EGR control solenoid
Butterfly valve
Turbocharger air recirculation valve
2010AInjection
Or
Injection
Turbo pressure control solenoid
215ACooling fan
ABS/ESP relay(s)
MF170ACooling fan
MF230AABS/ESP control unit
MF330AABS/ESP control unit
MF460AFuse box in passenger compartment
MF560AFuse box in passenger compartment
MF630AGearbox
MF780AFuse box in passenger compartment
Or
Fuse box in passenger compartment
Diode module
(40A also used)
MF880APower steering control unit






Relay in engine compartment.

Relay R1 – Child safety locks
Relay R2 – Gear lever blocking control relay
Relay R3 – Start inhibitor relay
Relay R4 – Fan relay
Relay R5 – ABS/ESP relay(s)
