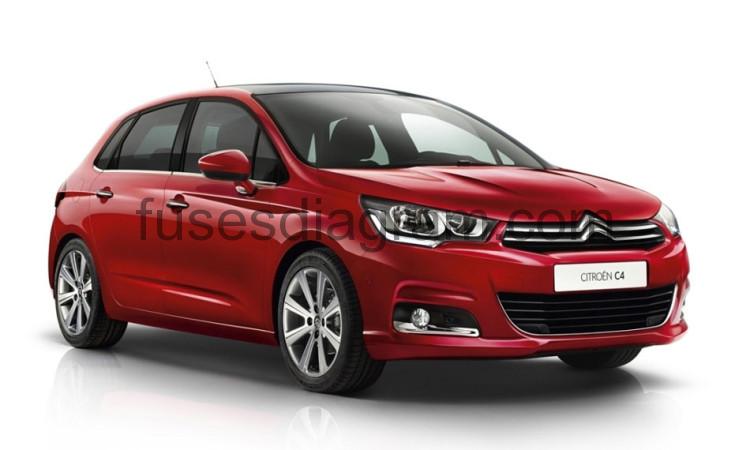

For Citroen C4 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 model year.
Cigarette lighter fuse – Fuse box in passenger compartment – Fuse F13/10A (front) Cigarette lighter fuse – Fuse box in passenger compartment – Fuse F14/10A (luggage)) Additional fuses in passenger compartment – F36 (15 A) – Rear 12 V socket. Additional fuses in passenger compartment – F40 (25 A) – 230 V / 50 Hz socket. |
MENU
Fuse box in passenger compartment.
Fuse box №2 in passenger compartment.
Additional fuses in passenger compartment.
Fuse box in engine compartment.
Fuse box №2 in engine compartment.
Fuse box №3 in engine compartment.
Fuse box in passenger compartment.
fuse box location.
The fuseboxes are located in the lower dashboard (left-hand side).
fuse box diagram.
Assignment of the fuses.
| Fuses | Amps | Circuits Protected |
|---|---|---|
| F2 | 7.5A | Diagnostic socket |
| F3 | 3A | Ignition switch |
| F4 | 5A | Telematics control unit |
| F5 | 3A | Tyre under-inflation detection control unit |
| F6A F6B | 15A | Radio |
| F7 | 15A | Fuse and relay box in passenger compartment |
| F8 | ЗА | Alarm |
| F9 | 3A | Steering wheel controls |
| F11 | 5A | ESP control unit |
| F12 | 15A | Brake pedal switch |
| F13 | 10 А | Front 12V socket/Cigarette lighter fuse (front) |
| F14 | 10 А | 12V socket/Cigarette lighter fuse (luggage) |
| F16 | ЗА | Glovebox light(s) Interior lighting Lighting |
| F17 | ЗА | Torch socket Courtesy mirrors Interior lighting Chip card reader Fuse box No. 1 in passenger compartment, relay R1 |
| F19 | 5A | Instrument panel |
| F21 | 10A | Multifunction switch Multiplex control unit |
| F22 | 10A | Parking assistance Instrument panel Multifunction display |
| F23 | 5A | Fuse box No. 1 in engine compartment |
| F24 | 3A | Rain sensor Brightness sensor |
| F25 | 5A | Airbags |
| F26 | 15A | Fuse and relay box in passenger compartment |
| F27 | 3A | Brake pedal switch |
| F28 | 15 А | Audio system |
| F29 | 3A | Steering wheel controls |
| F30 | 20 А | Rear wiper motor |
| F31 | 30A | Central locking |
| F32 | 10 А | Amplifier |
| F35 | 3A | Seat belts Power steering relay |
| F37 | 3A | Headlight adjustment Rear-view mirror Heater control unit |
| F38 | 3A | Electrochromatic rear-view mirror |
Fuse box №2 in passenger compartment.
legend.
| Fuses | Amps | Circuits Protected |
|---|---|---|
| 1 | 40А | Heated rear windscreen |
| 2 | 7.5А | Heated rear-view mirror |
| 3 | 20А | Trailer fuse box |
| 4 | 20А | Trailer fuse box |
| 5 | 30А | Rear power window |
| 6 | 30А | Front power window |
| 7 | 30А | Additional heater |
| 8 | ||
| 9 | ||
| 10 | 30А | Driver’s seat control unit |
| 11 | 20А | Trailer fuse box |
| 12 | 30А | |
| 13 | 30А | Amplifier |
| 14 | 7.5А | Seat control unit |
| 15 | 5А | Mirror memory control unit Rear-view mirror Lighting |
| 16 | 5А | Driver’s power window Mirror control unit |
| 17 | ||
| 18 | 3А | Lane detection control unit Blind spot monitoring |
| 19 | 3А | |
| 20 | 3А | Immobiliser |
| 21 | 3А | Engine Start and Stop system control unit |
| 22 | 20А | Trailer fuse box |
Additional fuses in passenger compartment.
F36 (15 A) – Rear 12 V socket.
F40 (25 A) – 230 V / 50 Hz socket.
Fuse box in engine compartment.
fuse box location.
The fusebox is placed in the engine compartment near the battery (lefthand side). Unclip the cover. Change the fuse (see corresponding paragraph). Then you have finished, close the cover carefully to ensure sealing of the fusebox.
fuse box diagram.
legend.
| Fuses | Amps | Circuits Protected |
|---|---|---|
| F1 | 15 A | Engine control unit Power supply control unit |
| F2 | 5 A | Two-speed cooling fan |
| F3 | 5 A | Engine control unit |
| F4 | 5 A | Engine control unit |
| F5 | 15 A | Engine control unit Air inlet fan control unit |
| F6 | 20 A | Engine control unit Fuel pump with level sensor |
| F7 | 10 A | Engine control unit |
| F8 | 10 A | Engine control unit |
| F10 | 5 A | Clutch switch Automatic transmission control unit Headlights |
| F11 | 5 A | Clutch switch Automatic transmission control unit Headlights |
| F12 | 5 A | ABS |
| F15 | 20 A | Diagnostic socket Power steering Coolant level sensor Fuel additive pump BSI |
| F17 | 20 A | Diagnostic socket Power steering Coolant level sensor Fuel additive pump BSI |
| F19 | 30 A | Windscreen wash/wipe system |
| F20 | 15 A | Front and rear washer pumps |
| F21 | 20 A | Headlight washer pump |
| F22 | 15 A | Horn |
| F23 | 15 A | |
| F24 | 15 A | |
| F26 | Air-conditioning compressor Air-conditioning compressor clutch | |
| F27 | 5 A | Left headlight |
| F28 | 5 A | Right headlight |
| F29 | 25 A | Starter |
| F30 | 30 A | Engine control unit |
Fuse box №2 in engine compartment.
legend.
| Fuses | Amps | Circuits Protected |
|---|---|---|
| F8 | 30.0 A | Power steering pump Manual transmission |
| F10 | 5.0 A | Automatic transmission |
| F11 | 5.0 A | Shift lock relay |
| F12 | 15.0 A | Automatic transmission |
| F18 | 5.0 A | Selector lever |
Fuse box №3 in engine compartment.
legend.
| Fuses | Amps | Circuits Protected |
|---|---|---|
| 1 | 80A | Fuse and relay box in passenger compartment |
| 2 | 70A | BSI |
| 3 | 125A | Fuse box No. 1 in engine compartment |
| 4 | 60A | BSI |
| 5 | 60A | Cooling fan control unit |
| 6 | ||
| 7 | 40A | ABS/ESP control unit |
| 8 | 20A | ABS/ESP control unit |
| 9 | 60A | Fuse and relay box in passenger compartment |
| 10 | 40A | Air-conditioning blower |
| 11 | 40A | Fuse and relay box in passenger compartment |
| 12 | 80A | Heater control unit |
| 13 | 70A | Pre-post heating |
| 14 | 40A | Electric parking brake |
| 15 | 80A | Power steering |
| 16 | 30A | |
| 17 | 40A | Engine Start and Stop system control unit |
| 18 | ||
| 19 | 40A | Fuse box No. 2 in passenger compartment |
| 20 | 4A | |
| 21 | 5A | Battery control unit |
