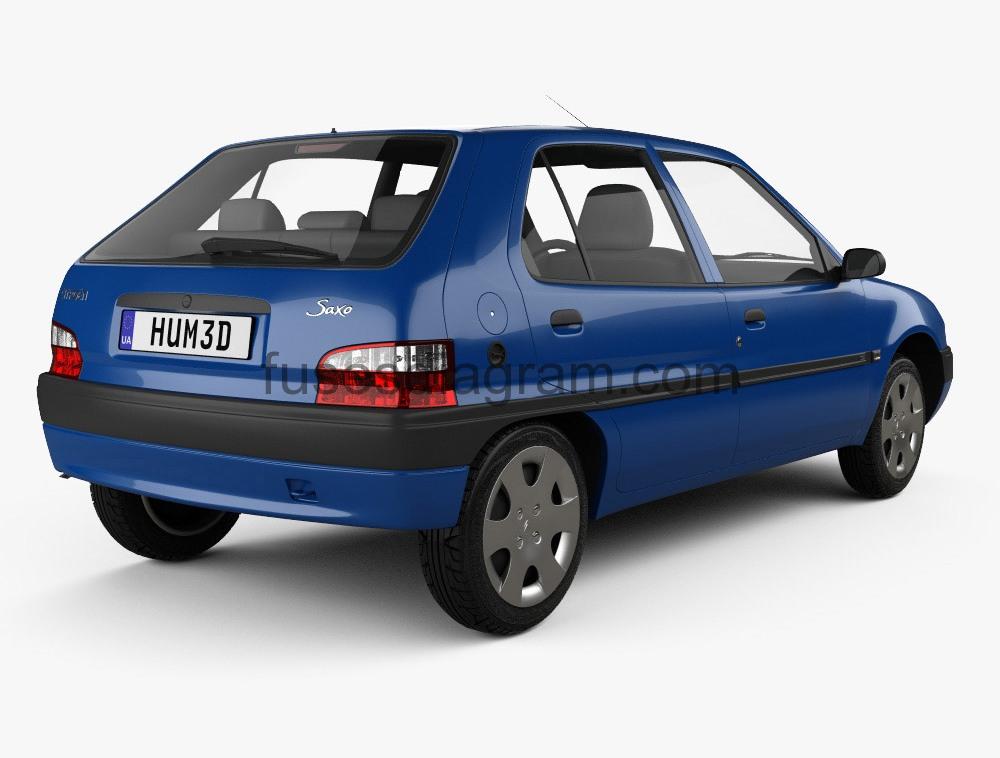

For Citroen Saxo 1995, 1996, 1997, 1998 ,1999, 2000, 2001, 2002, 2003 model year.
Cigarette lighter fuse – fuse box in passenger compartment – Fuse F5/20A |
MENU
Fuse box in passenger compartment.
- fuse box diagram (pre 1997)
- fuse box diagram (since 1997)
- additional relay behind fuse box (since 1997)
Fuse box in engine compartment.
Fuse box in passenger compartment.
fuse box location.
Assignment of the fuses.
| F1 | (5A) Alarm horn, instrument panel warning lamps, tachometer, fuelcut-off valve, AC compressor clutch relay, data link connector, ABS warning lamp, glow plug relay |
| F2 | (25A) Heater/air conditioning blower motor, heated rear window, door mirror heater |
| F3 | (25A) Heated rear window, door mirror heater |
| F4 | (10A) Map reading lamp, clock, audible warning, alternator warning lamp, electric window circuit, door mirror adjustment, audio unit, indicators |
| F5 | (20A) Horn, cigarette lighter, engine coolant temperature module |
| F6 | (10A) Hazard lamps |
| F7 | (15A) Stop lamps, reversing lamps, air conditioning system, data link connector |
| F8 | (20A) Boot lamp, interior lamp, audio unit memory, data link connector, clock memory, alarm warning lamp and module, central locking module, central locking signal control module |
| F9 | (20A) Windscreen wash/wipe, rear screen wash/wipe |
| F10 | (30A) Electric windows |
| F11 | (5A) Rear fog lamps |
| F12 | (5A) Side lamps, side lamps ‘on’ warning lamp, tail lamp – right, side lamps ‘on’ warning buzzer, instruments, panel lamps, instrument illumination rheostat |
| F13 | (5A) Licence plate lamps, tail lamp – left |
| R1 | Heater blower relay |
| R2 | Electric window circuit relay |
| R3 | Heated rear window relay |
| R4 | Indicator relay |
| R5 | Side lamps ‘on’ warning buzzer |
| R6 | – |
| R8 | Windscreen wiper intermittent relay |
Fuse box diagram (since 1997).
legend.
| 1 | Over speed warning buzzer – if fitted |
| 2 | Windscreen wiper intermittent relay |
| 3 | Heated rear window timer relay |
| 4 | Indicator relay |
| 5 | Lamps ‘on’ warning buzzer |
| F1 | (25A) Heated door mirrors, heated rear window, air conditioning (AC), anti-lock brake system (ABS), data link connector (DLC), instrument panel |
| F2 | (25A) Heater blower relay, heated door mirrors, heated rear window |
| F3 | (5A) Data link connector (DLC), instrument panel warning lamps, tachometer, starter motor relay, alarm system control module – if fitted, anti-lock brake system (ABS) |
| F4 | (10A) Alternator warning lamp, vanity mirror, reading lamps, audio unit, electric windows, electric door mirrors, indicators, lamps ‘on’ warning buzzer |
| F5 | (20A) Horn, cigarette lighter |
| F6 | (10A) Hazard warning lamps |
| F7 | (15A) Stop lamps, reversing lamp/s |
| F8 | (20A) Interior lamps, audio unit, central locking, alarm system, data link connector (DLC) |
| F9 | (20A) Windscreen wash/wipe system, rear screen wash/wipe system |
| F10 | (30A) Electric windows |
| F11 | (5A) Rear fog lamps |
| F12 | (5A) Front side lamps, LH tail lamp, lamps ‘on’ warning buzzer, instrument illumination |
| F13 | (5A) RH tail lamp, licence plate lamps |
| F14 | (5A) Heated seats – if fitted |
Additional relay behind fuse box (since 1997).
legend.
1 – Central locking control module (position 2)
2 – Immobilizer control module
3 – Electric window circuit relay
4 – AC/heater blower motor relay
Fuse box in engine compartment.
fuse box location.
legend.
| 1 | Fog lamps relay |
| 2 | Alarm system headlamp low beam relay |
| 3 | – |
| 4 | Air conditioning compressor clutch relay |
| 5 | Air conditioning relay |
| 6 | – |
| 7 | – |
| F1 | (15A) Engine control module relay |
| F2 | (30A)ABS |
| F3 | (30A) Engine coolant blower motor |
| F4 | (30A)ABS |
| F5 | (30A) Engine coolant blower motor |
| F6 | (15A) Fog lamps, alarm system |
| F7 | (20A) – |
| F8 | (10A) Headlamp wash |
| F9 | (10A) Fuel pump |
| F10 | (20A) Engine control module relay, glow plug relay, engine coolant blower timer control module, ABS warning lamp, transmission warning lamp |
| F11 | (5A) Oxygen sensor |
| F12 | (10A) Headlamp high beam – left |
| F13 | (10A) Headlamp high beam – right |
| F14 | (10A) Headlamp low beam – left, headlamp washer |
| F15 | (10A) Headlamp low beam – right |
Fuse box (B).
| F1 | (40A) Headlamps |
| F2 | (80A) Fuse box |
| F3 | (20A) Ignition switch |
| F4 | (40A) Ignition switch |
Fuse box diagram (since 1997).
legend.
| 1 | Front fog lamps relay |
| 2 | – |
| 3 | Headlamp washer pump delay relay |
| 4 | Wide open throttle (WOT) relay (with AC) |
| 5 | AC compressor clutch cut-off relay |
| 6 | Starter motor relay – AT |
| F1 | (15A) Engine management |
| F2 | (30A) Anti-lock brake system (ABS) |
| F3 | (30A) Engine coolant blower motor relay |
| F4 | (30A) Anti-lock brake system (ABS) |
| F5 | (30A) Engine coolant blower motor relay |
| F6 | (15A) Front fog lamps |
| F7 | (10A/15A/20A) Daytime running lamps (if fitted) |
| F8 | (10A/20A) Headlamp washers |
| F9 | (10A) Fuel pump |
| F10 | (20A/30A) Automatic transmission (AT), engine management, anti-lock brake system (ABS), engine coolant blower motorcontrol module (with AC), engine coolant blower motor relay |
| F11 | (5A) Heated oxygen sensor (HO2S) |
| F12 | (10A) LH headlamp – high beam |
| F13 | (10A) RH headlamp – high beam |
| F14 | (10A) LH headlamp – low beam, headlamp washers |
| F15 | (10A) RH headlamp – low beam |
| F16 | (30A) Secondary air injection (AIR) pump (if fitted) |
Fuse box (B).
| F1 | (40A) Light switch |
| F2 | (80A) Fuse box (fascia) |
| F3 | (20A) Ignition switch |
| F4 | (40A) Ignition switch |
