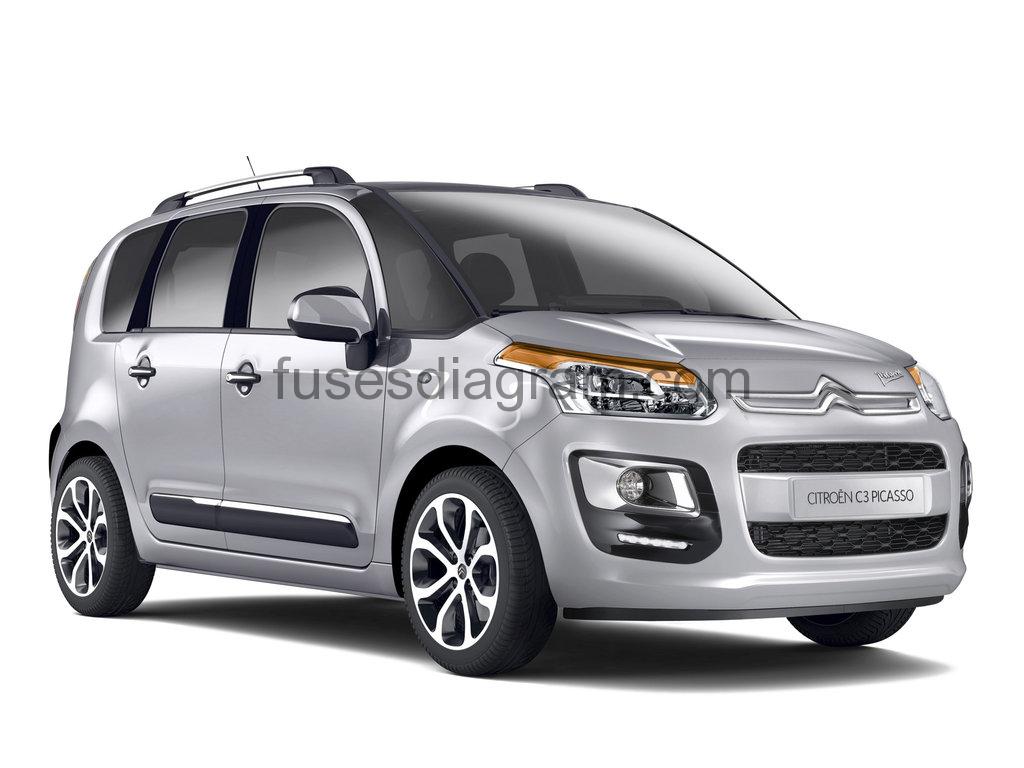

For Citroen C3 Picasso (A58) 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 model year.
Cigarette lighter fuse – Fuse box in passenger compartment – Fuse F9/30A |
MENU
Fuse box in passenger compartment.
Fuse box in engine compartment.
Fuse box №2 in engine compartment.
Fuse box №3 in engine compartment.
Fuse box in passenger compartment.
fuse box location.
The fusebox is placed in the lower dashboard (left-hand side).
legend (type 1).
Fuses | Amps | Circuits Protected |
---|---|---|
1 | 15A | Rear wiper motor |
3 | 5A | Airbag control unit |
4 | 10A | Diagnostic socket Fuel additive pump Heater panel Brake system Clutch pedal position sensor |
5 | 30A | Front power windows One-touch power windows Driver’s door control unit |
6 | 30A | Power window control |
7 | 5A | Glovebox light(s) |
8 | 20A | Control panel Radio Telephone Alarm system |
9 | 30A | Cigarette lighter Radio Glovebox light Rear 12V socket Front 12V socket |
10 | 15A | Switch module |
11 | 15A | Diagnostic socket Ignition switch |
12 | 15A | Rain and light sensor |
13 | 5A | Brake system |
14 | 15A | Control panel |
15 | 30A | Door lock |
17 | 40A | Mirrors Heated rear windscreen |
16 | Shunt |
legend (type 2).
Fuse N° | Rating | Functions |
---|---|---|
F1 | 15 A | Rear wiper. |
F2 | – | Not used. |
F3 | 5 A | Airbags and pretensioners control unit. |
F4 | 10 A | Steering wheel angle sensor, air conditioning, clutch switch, particle filter pump, diagnostic socket, airflow meter. |
F5 | 30 A | Electric window switch panel, passenger’s electric window control, front electric window motor. |
F6 | 30 A | Rear electric window motor and driver’s electric window motor. |
F7 | 5 A | Courtesy and front map reading lamps, glove box lighting, torch, rear reading lamps. |
F8 | 20 A | Multifunction screen, audio system, navigation radio. |
F9 | 30 A | Audio system (aftermarket), 12 V socket, Cigarette lighter |
F10 | 15 A | Steering wheel controls. |
F11 | 15 A | Ignition, diagnostic socket. |
F12 | 15 A | Rain / sunshine sensor, trailer relay unit. |
F13 | 5 A | Main stop switch, engine relay unit. |
F14 | 15 A | Parking assistance control unit, seat belt unfastened warning lamp, airbag control unit, instrument panel, air conditioning, USB Box. |
F15 | 30 A | Locking. |
F16 | – | Not used. |
F17 | 40 A | Rear screen and door mirrors demist/defrost. |
SH | – | PARC shunt. |
Additional fuse in passenger compartment.
legend.
Fuse N° | Rating | Functions |
---|---|---|
36 | 5 A | Trailer relay unit. |
37 | 15 A | Trailer accessories socket supply. |
38 | 20 A | Aftermarket navigation. |
39 | 20 A | Heated seats. |
40 | 30 A | Trailer relay unit. |
Fuse box in engine compartment.
fuse box location.
The fusebox is placed in the engine compartment near the battery (left-hand side).
fuse box diagram.
Assignment of the fuses.
Fuse N° | Rating | Functions |
---|---|---|
F1 | 20 A | Engine control unit supply, cooling fan unit control, multifunction engine control main relay. |
F2 | 15 A | Horn. |
F3 | 10 A | Front / rear wash-wipe. |
F4 | 20 A | Daytime running lamps. |
F5 | 15 A | Diesel heater (Diesel engine), fuel pump (petrol engine) |
F6 | 10 A | ABS/ESP control unit, ABS/ESP cut-off relay, secondary stop switch. |
F7 | 10 A | Electric power steering. |
F8 | 25 A | Starter motor control. |
F9 | 10 A | Switching and protection unit (Diesel). |
F10 | 30 A | Diesel engine injection pump valve, injectors and ignition coils (petrol engine). |
F11 | 40 A | Air conditioning fan. |
F12 | 30 A | Windscreen wipers slow / fast speed. |
F13 | 40 A | Built-in systems interface supply (ignition positive). |
F14 | 30 A | Valvetronic supply (petrol). |
F15 | 10 A | Right-hand main beam headlamp. |
F16 | 10 A | Left-hand main beam headlamp. |
F17 | 15 A | Left-hand dipped beam headlamp. |
F18 | 15 A | Right-hand dipped beam headlamp. |
F19 | 15 A | Multifunction engine management supply (petrol engine), air cooling electrovalves (Diesel). |
F20 | 10 A | Multifunction engine management supply (petrol engine), Turbo pressure regulation electrovalve (Diesel), engine coolant level sensor (Diesel). |
F21 | 5 A | Fan assembly control supply, APC, ABS ESP relays. |
MF1* | 60 A | Cooling fan assembly. |
MF2* | 30 A | ABS / ESP control unit. |
MF3* | 30 A | ABS / ESP control unit. |
MF4* | 60 A | Built-in Systems Interface (BSI) supply. |
MF5* | 60 A | Built-in Systems Interface (BSI) supply. |
MF6* | – | Not used. |
MF7* | – | Passenger compartment fusebox. |
MF8* | – | Not used. |
*The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a CITROЁN dealer or a qualified workshop.
Fuse box №2 in engine compartment.
legend.
Fuse 1 – Heating and air conditioning (40.0 A)
Fuse 2 – Heating and air conditioning (40.0 A)
Fuse 3 Heating and air conditioning (40.0 A)
Fuse box №3 in engine compartment.
Fuse 1 – Pre-post heating (80.0 A)
Fuse 2 – Power steering (80.0 A)
Fuse 3 – Not used
Fuse 4 – Not used
