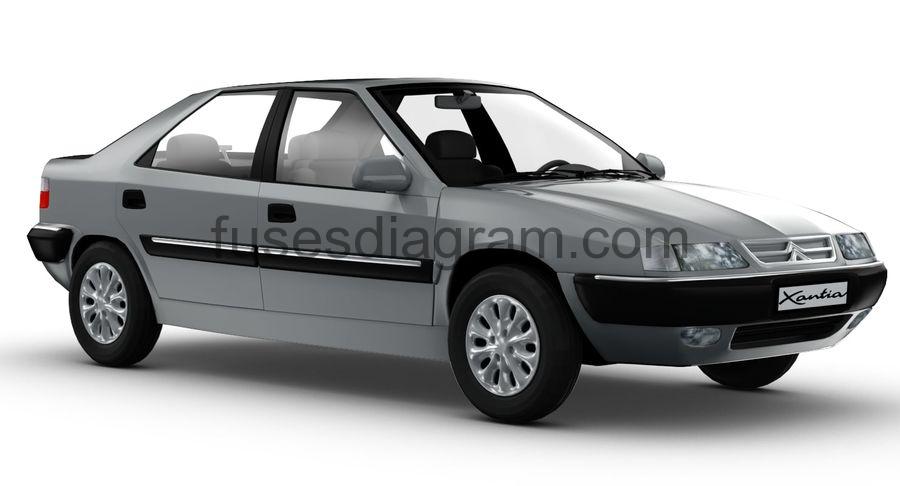

For Citroen Xantia 1993, 1994, 1995, 1996, 1997, 1998 ,1999, 2000, 2001, 2002, 2003 model year.
Cigarette lighter fuse – fuse box in passenger compartment – Fuse F16/20A |
MENU
Fuse box in passenger compartment.
- fuse box diagram (pre 1994)
- fuse box diagram (since 1995)
- fuse box diagram (since 1998)
- relay box in passenger compartment, (since 1999 )
Fuse box in engine compartment.
Fuse box in passenger compartment.
fuse box location.
Assignment of the fuses.
| 1 | Indicator/hazard warning relay |
| 2 | Heated rear window relay |
| 3 | Side lamps ‘on’ warning buzzer |
| 4 | Alarm system relay |
| 5 | – |
| 6 | Electric window circuit relay – rear |
| 7 | Rear fog lamp relay |
| 8 | Horn relay |
| 9 | Seat heater relay |
| 10 | – |
| 11 | Electric window circuit relay – rear cut-off |
| 12 | Hydraulic problem warning buzzer |
| 13 | Electric window circuit relay – front |
| 14 | Sunroof motor relay |
| 15 | Windscreen washer pump relay |
| 16 | – |
| 17 | – |
| F1 | (10A) Radio, CD player |
| F2 | (5A) Instrument panel lamps rheostat, instruments, lamps ‘on’ audiblewarning |
| F3 | (10A) Reverse lamps, engine coolant temperature control module, diagnostic link |
| F4 | (5A) Side lamp – left, tail lamp – right, lamps ‘on’ |
| F5 | – |
| F6 | (10A)ABS |
| F7 | (20A) Horn |
| F8 | (30A) Main feed |
| F9 | (5A) Side lamp – right, tail lamp – left, instrument lighting |
| F10 | (30A) Electric windows, rear |
| F11 | (30A) Sunroof |
| F12 | (10A) AC switch, vehicle speed sensor, cruise control switch, suspension control module, alarm control module, alarm siren, instruments |
| F13 | (10A) Trailer socket |
| F14 | (30A) Seat adjustment |
| F15 | (20A) Heated seats, alarm LED & relay, interior lamp delay relay, interior & boot lamps, alarm control sensor |
| F16 | (20A) Cigarette lighter |
| F17 | (15A) Alarm system |
| F18 | (10A) Rear fog lamps |
| F19 | (5A) Cigarette lighter & switch lighting |
| F20 | (30A) AC blower |
| F21 | (30A) Central door locking control module |
| F22 | (20A) Rear screen wash/wipe timer |
| F23 | (10A) Heated seats, heated rear window switch |
| F24 | (30A) Windscreen wiper delay module, transmission shift lamps |
| F25 | (5A) Radio memory, clock, diagnostic link, CD player |
| F26 | (15A) Hazard warning lamp switch |
| F27 | (30A) Heated rear window, heated mirrors |
| F28 | (15A) Sunroof, indicator lamps, rear window winder lock, instruments, stop lamps, brake pad wear sensors, ABS, cruise control |
| F29 | (30A) Electric windows – front |
| F30 | (15A) Interior lamps, electric seats, electric mirrors, electric windows, telephone (if fitted) |
Fuse box diagram (since 1995).
legend.
| 1 | Seat heater relay |
|---|---|
| 2 | Horn relay |
| 3 | Electric window circuit relay – front |
| 4 | Rear fog lamp relay |
| 5 | Sunroof motor relay |
| 6 | Electric window circuit relay – rear cut-off |
| 7 | Electric window circuit relay – rear |
| 8 | Alarm system relay |
| 9 | Heated rear window relay |
| 10 | Indicator/hazard warning lamps relay |
| 11 | Side lamps ‘on’ warning buzzer |
| 12 | Windscreen wiper intermittent relay |
| 13 | Telephone warning buzzer |
| 14 | Over speed warning buzzer |
| 15 | – |
| 16 | – |
| 17 | – |
| F1 | (10A) Audio unit |
| F2 | (5A) Coolant blower control module, instrument panel, diagnostic link, lights on warning, over speed warning, cellulartelephone warning immobiliser, vehicle speed sensor |
| F3 | (10A) Headlamp low beam relay, suspension system alarm control module, alarm horn |
| F4 | (5A) Side lamp – left, tail lamp – right |
| F5 | (10A) Heated rear window, seat heater |
| F6 | (10A) ABS, cruise control |
| F7 | (20A) Horn, trailer socket |
| F8 | Bridged across to F23 |
| F9 | (5A) Side lamp – right, tail lamp – left |
| F10 | (30A) Electric windows, rear |
| F11 | (30A) Sunroof, seat heater |
| F12 | (10A) Reversing lamps, air conditioning system, air conditioning compressor clutch relay |
| F13 | (40A) Seat adjustment |
| F14 | (5A) Engine control module, engine coolant temperature control module |
| F15 | (10A) Alarm system relay, interior lamp delay relay, boot lid lamp, diagnostic link, audio unit suppressor |
| F16 | (20A) Cigarette lighter |
| F17 | (15A) Alarm system control module |
| F18 | (10A) Rear fog lamp |
| F19 | (5A) Instrument panel illumination |
| F20 | (30A) Air conditioning blower motor |
| F21 | (30A) Central locking |
| F22 | (10A) Sun roof, door mirror adjustment electric windows – rear, central locking system, seat adjustment |
| F23 | Bridged across to F8 |
| F24 | (15A) Windscreen wiper motor, windscreen wiper delay relay, transmission selector lamps |
| F25 | (2A) Audio unit memory, clock, central locking signal control module, seat adjustment relay, alarm system LED |
| F26 | (15A) Hazard lamps switch |
| F27 | (30A) Electric windows – front |
| F28 | (15A) Rear screen washer motor, rear screen wash/wipe switch, rear screen intermittent wiper relay, stop lamps switch, indicator relay |
| F29 | (30A) Heated rear window, door mirror heaters |
| F30 | (15A) Interior lamps, glove box lamp, electric windows, instrument panel |
Fuse box diagram (since 1998).
legend.
Fuse 1
Radio
10.0 A
Fuse 2
CPH
Speed sensor
Overspeed
Hydraulic circuit audible warning
Shift lock
Air conditioning
Additional heater control
Coolant level
Heated washer jets
Coolant temperature
Diagnostic connector
Reversing light(s)
Automatic transmission
Trafficmaster system
10.0 A
Fuse 3
Not used
Fuse 4
Left sidelight
Right tail light
5.0 A
Fuse 5
Heated rear windscreen
Heated rear windscreen switch
Relay, heated seats
Daylight running system
10.0 A
Fuse 6
Not used
Fuse 7
Horn
Horn relay
Trailer connector socket
20.0 A
Fuse 8
Shunt
30.0 A
Fuse 9
Not used
Fuse 10
Rear power windows
Anti-trap system
30.0 A
Fuse 11
Sliding roof
20.0 A
Fuse 12
Instrument panel
Air conditioning
Brake light switch
Blower
Cooling fan
Coolant temperature
20.0 A
Fuse 13
Heated seat(s)
20.0 A
Fuse 14
Injection control unit
Coolant temperature
5.0 A
Fuse 15
CPH
Diagnostic connector
Hydra-active suspension
30.0 A
Fuse 16
Cigarette lighter
12V socket
20.0 A
Fuse 17
Automatic transmission (excluding V6)
10.0 A
Fuse 18
Fog light(s)
10.0 A
Fuse 19
Sidelight(s)
5.0 A
Fuse 20
Electric seat(s)
40.0 A
Fuse 21
Air conditioning
Air-conditioning control unit
Blower
30.0 A
Fuse 22
Sliding roof relay
Interior light
Electric rear-view mirror
5.0 A
Fuse 23
Shunt
Fuse 24
Front wiper control
Front wiper motor
Front intermittent wiper
20.0 A
Fuse 25
CPH
Radio
Instrument panel
Alarm LED
Clock
Exterior temperature display
10.0 A
Fuse 26
Hazard warning lights
15.0 A
Fuse 27
Front power windows
Anti-trap system
30.0 A
Fuse 28
Storage compartment illumination
Direction indicators
Rear wiper
Passenger’s rear-view mirror control
Interior light(s)
15.0 A
Fuse 29
Heated rear windscreen and mirrors
30.0 A
Fuse 30
Power window control, front and rear
Instrument panel
Clock
Exterior temperature display
Rain sensor
15.0 A
Relay R1
Flasher relay
Relay R2
Not used
Relay R3
Not used
Relay R4
Heated seats
Relay R5
Sliding roof
Relay R6
Front windows
Relay R7
Horn
Relay R8
Rear windows
Relay R9
Buzzer
Relay R10
Heated rear windscreen
Relay R11
Rain sensor
Relay R12
Wiper system
Relay R13
Parking lights
Relay R14
Dipped beam
Relay R15
No information is available
Relay R16
Intermittent wiper relay
Relay box in passenger compartment, (since 1999 ).
Relay R1
Automatic transmission
Relay R2
Buzzer
Relay R3
Safety relay, cruise control
Relay R4
Not used
Fuse box in engine compartment.
fuse box location.
legend.
| F1 | (20A) ABS relay |
| F2 | (10A) Telephone |
| F3 | (30A/40A) Engine coolant blower motor control module |
| F4 | – |
| F5 | (5A) Engine coolant blower motor |
| F6 | (30A) Headlamp washer timer, front fog lamps relay |
| F7 | (5A) Engine control module |
| F8 | (20A) Suspension control module |
| F9 | (10A) Fuel pump relay |
| F10 | (5A) Headlamp wash timer control |
| F11 | (5A) Oxygen sensor relay |
| F12 | (10A) Headlamp high beam – left |
| F13 | (10A) Headlamp high beam – right |
| F14 | (10A) Headlamp low beam – left |
| F15 | (10A) Headlamp low beam – right |
| 1 | Cruise control system relay |
| 2 | Starter motor relay – Automatic |
| 3 | – |
| 4 | Glow plug relay, post heating – Turbo |
| 5 | Air conditioning compressor clutch relay |
| 6 | Cold start timing advance relay – Turbo |
| 7 | Fog lamps relay |
| 8 | Headlamp washer pump delay relay |
| 9 | ABS relay |
Fuse box diagram (since 1996).
legend.
| 1 | Air conditioning compressor clutch relay – Temperature cut off |
| 2 | Air conditioning compressor clutch relay |
| 3 | ABS relay |
| 4 | Fog lamps relay |
| 5 | Cold start timing advance relay |
| 6 | Starter motor relay – Automatic |
| A | (60A) Alarm system switch |
| B | (40A) Alarm system switch |
| C | (80A) Fuse box, alarm system relay |
| D | (60A) Lighting switch, rear fog lamp relay, immobiliser |
| E | (40A) Engine coolant blower motor relay |
| F | (40A) Engine coolant blower motor relay |
| F1 | (20A) ABS relay |
| F2 | (10A) Cellular telephone |
| F3 | (30A/40A) Engine coolant blower motor |
| F4 | – |
| F5 | (5A) Engine coolant blower |
| F6 | (30A) Headlamp washer delay relay, fog lamp relay |
| F7 | (5A) Engine control module |
| F8 | (20A) Suspension control module |
| F9 | (10A) Fuel pump relay |
| F10 | (5A) Oxygen sensor relay |
| F11 | (5A) Headlamp washer control module |
| F12 | (10A) Headlamp high beam – left |
| F13 | (10A) Headlamp high beam – right |
| F14 | (10A) Headlamp low beam – left |
| F15 | (10A) Headlamp low beam – right |
Fuse box diagram (since 1999).
legend.
Fuse 1
ABS control unit
20.0 A
Fuse 2a
Injection (V6 and CT)
30.0 A
Fuse 2b
Air pump (L4)
40.0 A
Fuse 3
Cooling fan
30.0 A
Fuse 4
No information is available
15.0 A
Fuse 5
Cooling fan
5.0 A
Fuse 6
Headlight washers
Front fog light(s)
30.0 A
Fuse 7
Injection (excluding V6 and turbo CT)
20.0 A
Fuse 8
No information is available
20.0 A
Fuse 9
Fuel pump
10.0 A
Fuse 10
Headlight washers
5.0 A
Fuse 11
Oxygen sensor
Mass airflow meter
5.0 A
Fuse 12
Right main beam
10.0 A
Fuse 13
Left main beam
10.0 A
Fuse 14
Right dipped beam
10.0 A
Fuse 15
Left dipped beam
10.0 A
Fuse M1
Security system
60.0 A
Fuse M2
Security system
40.0 A
Fuse M3
Fuse box
80.0 A
Fuse M4
Light switch
40.0 A
Fuse M5
Cooling fan
40.0 A
Fuse M6
Cooling fan
40.0 A
Fuse M7
Not used
Fuse M8
Not used
Relay R1
Air-conditioning compressor
Relay R2
Compressor cut-off
Relay R3
Front fog lights
Relay R4
Air pump or headlight washers
Relay R5
Immobiliser
